Door Speaker

DOOR SPEAKER







Removal and Installation

All speakers

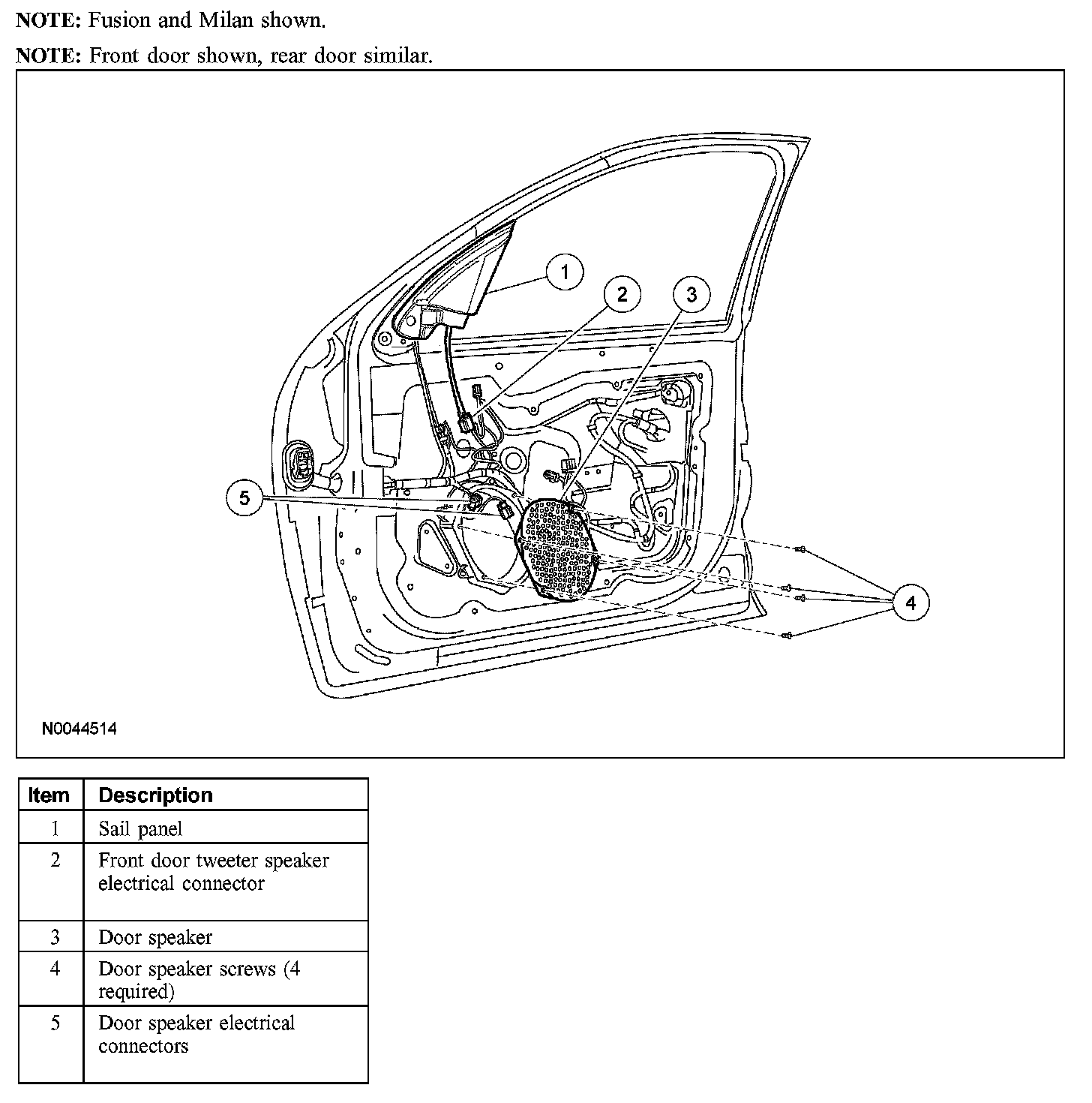

1. Remove the door trim panel.

Front door tweeter speaker (Fusion and Milan)
2. Remove the sail panel.
- Disconnect the electrical connector.

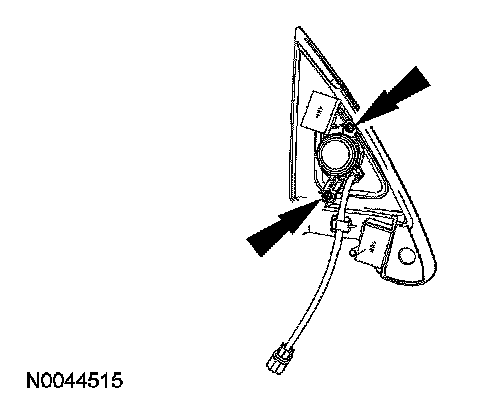

3. Remove the 2 screws and the front door tweeter speaker from the sail panel.

Front door tweeter speaker (Zephyr)

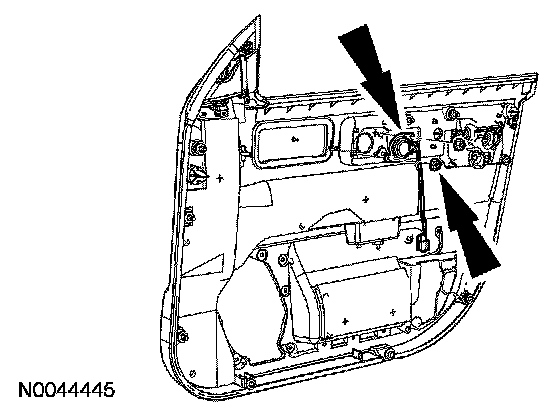

4. Remove the 2 nuts and the front door tweeter speaker from the door trim panel.

Front or rear door speaker
5. Remove the 4 screws and the door speaker.
- Disconnect the electrical connectors.

All speakers
6. To install, reverse the removal procedure.
