Audio Amplifier

AUDIO AMPLIFIER












Removal and Installation
1. Remove the digital signal processing (DSP) module.

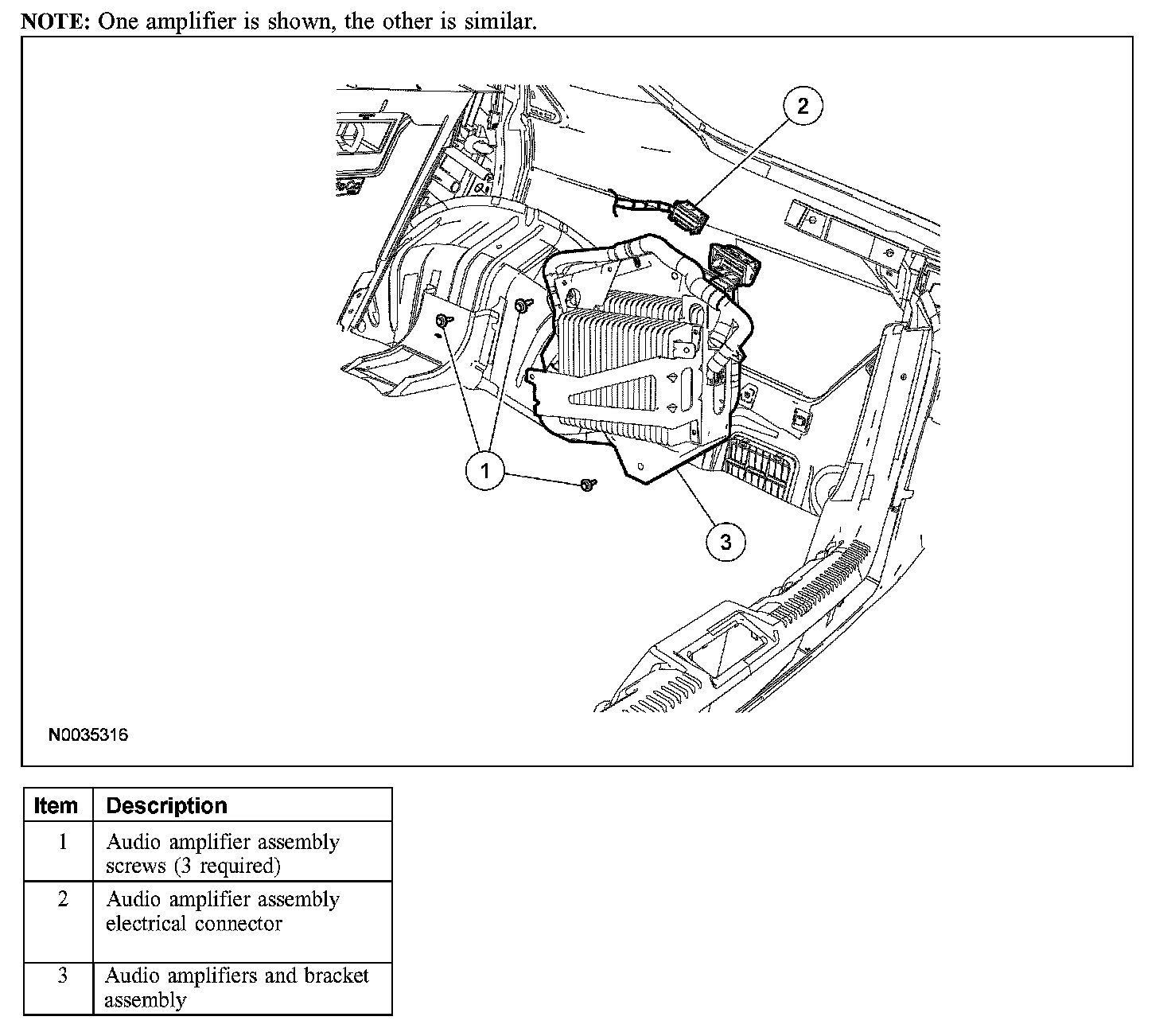

2. Disconnect the audio amplifier assembly electrical connector.
3. Remove the 3 screws and the audio amplifiers and bracket assembly.

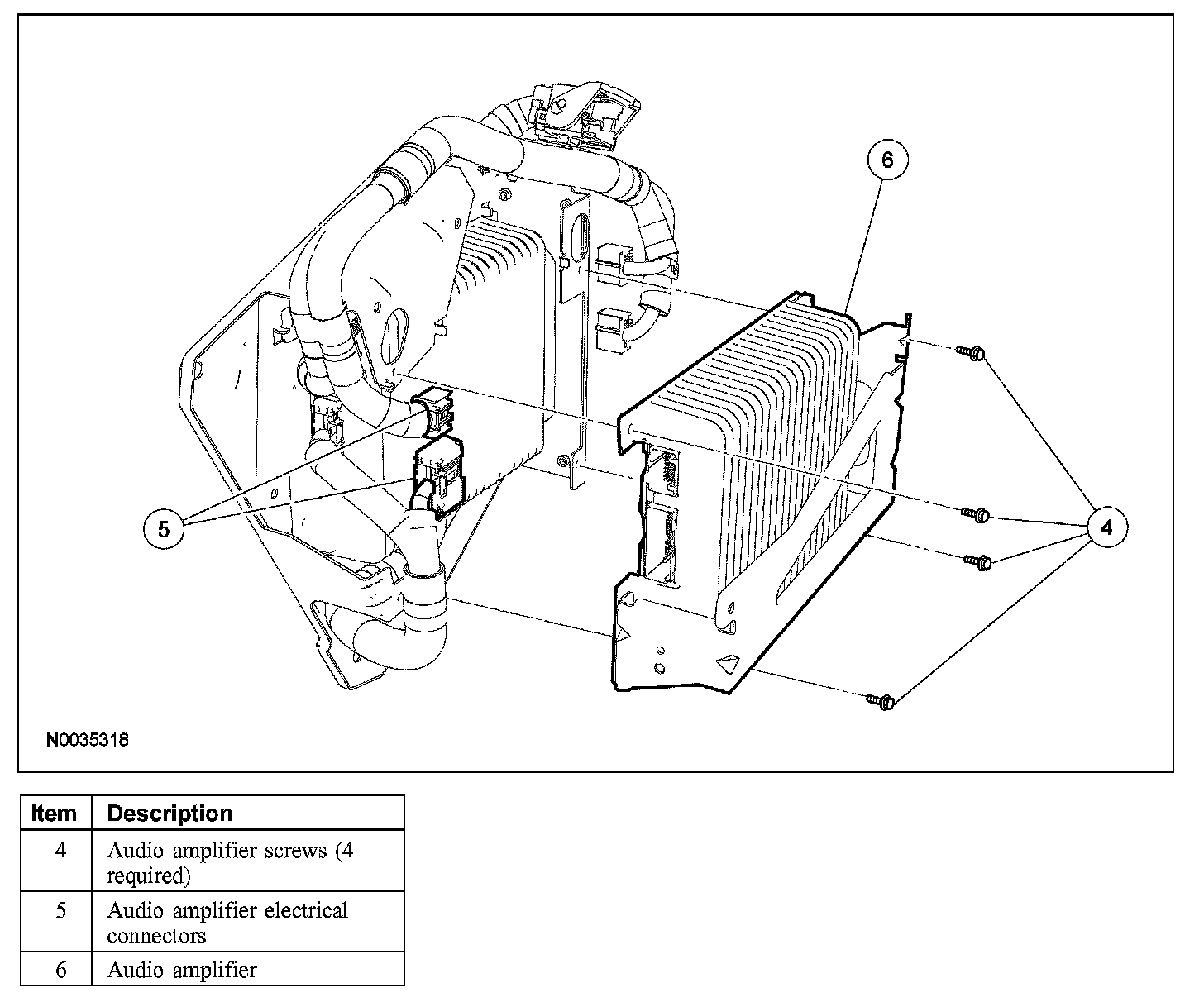

4. Remove the 4 screws and the audio amplifiers.
- Disconnect the electrical connectors.

5. To install, reverse the removal procedure.
