FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lincoln
>>
2006
>>
Town Car V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
>>
Audio/Navigation Control Unit
Audio/Navigation Control Unit

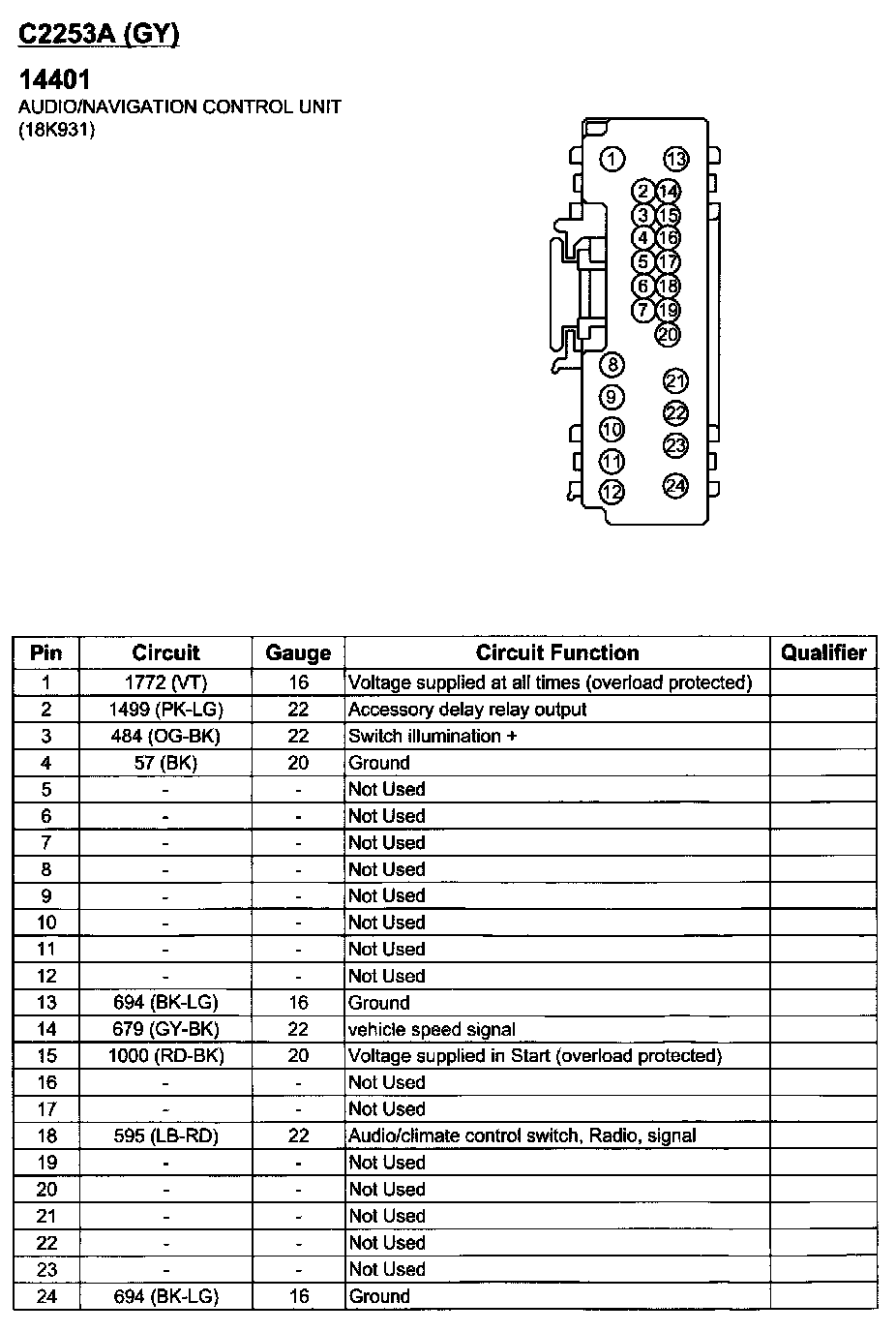

C2253A:

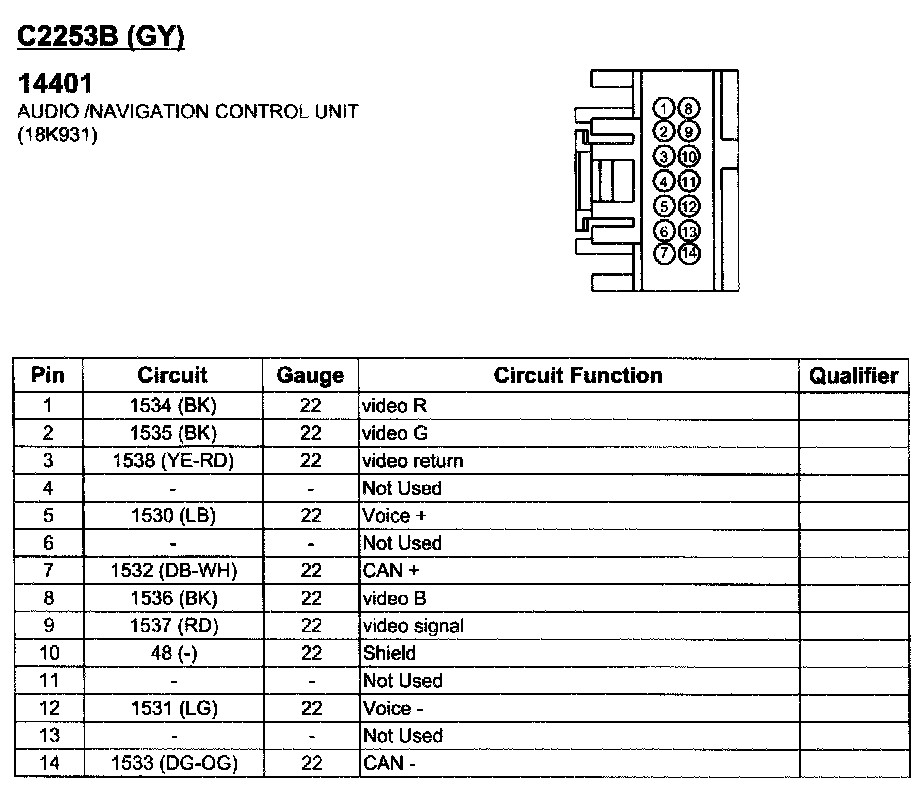

C2253B:

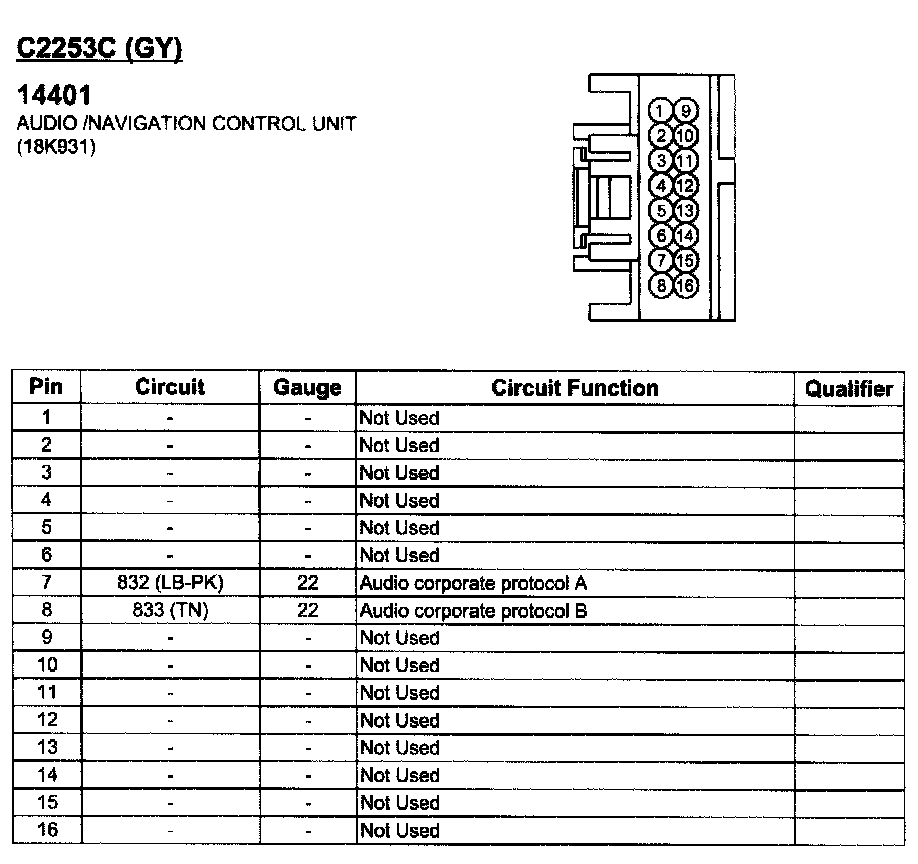

C2253C:

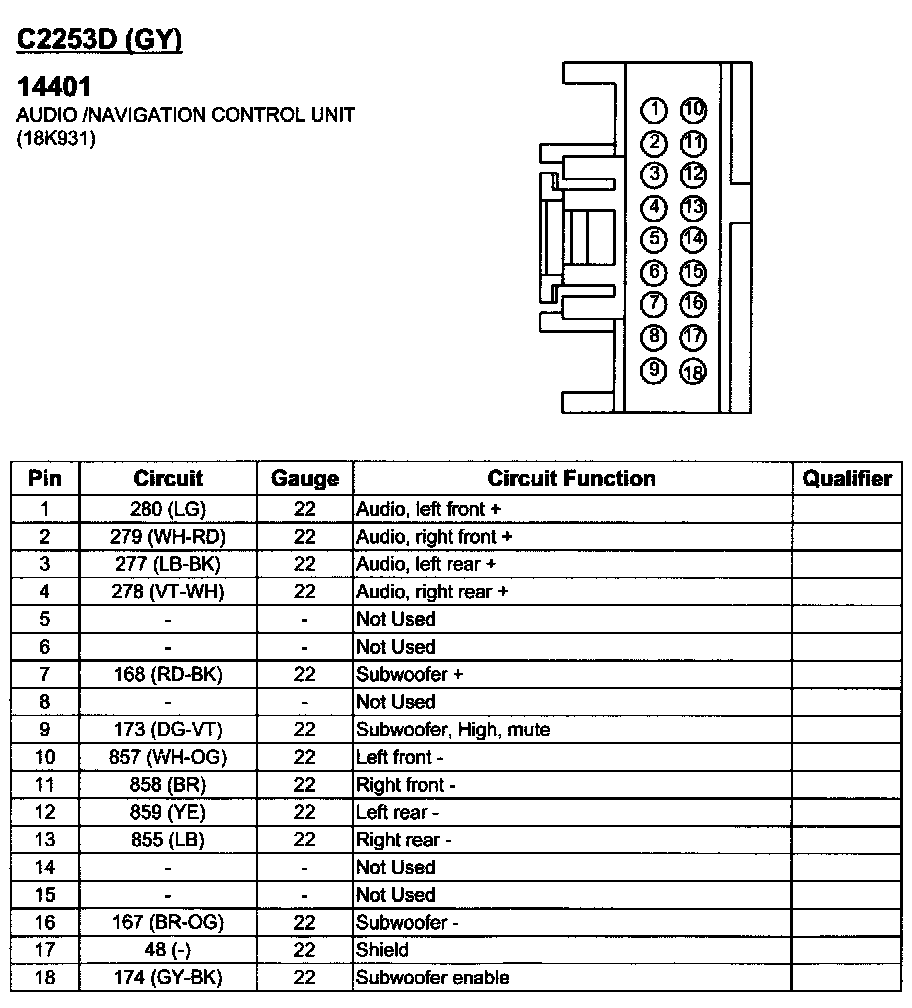

C2253D:
