Home >> Lincoln >> 2006 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

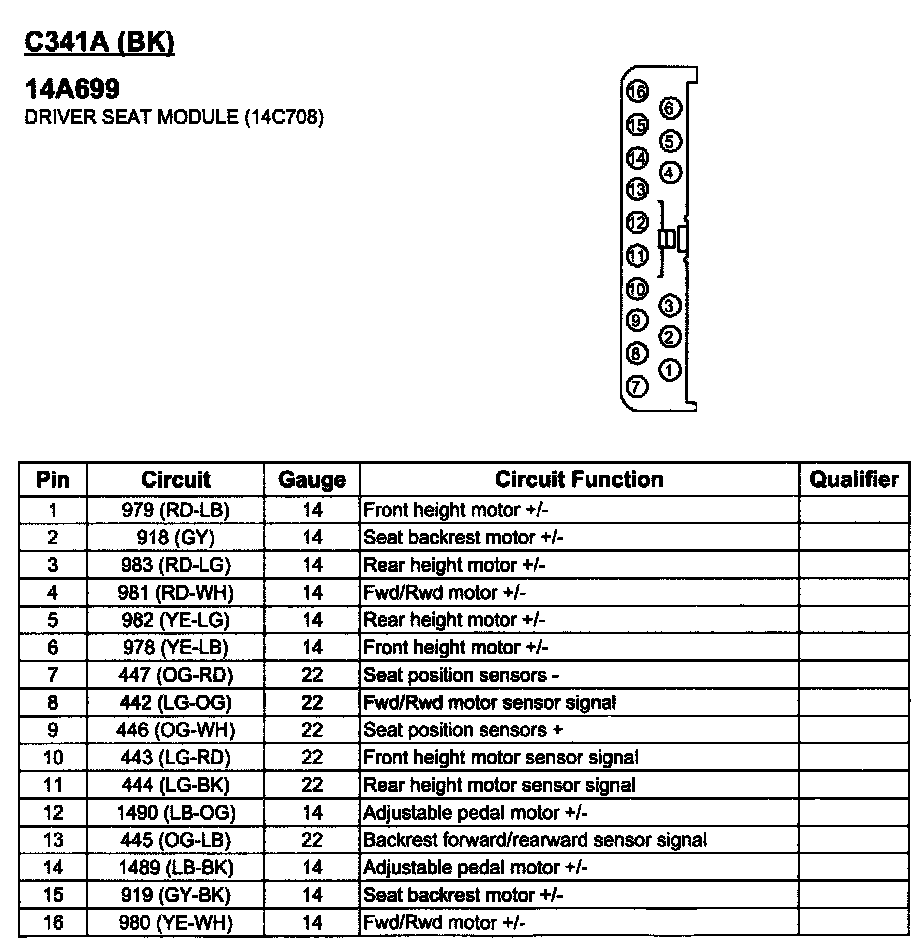

C341A:

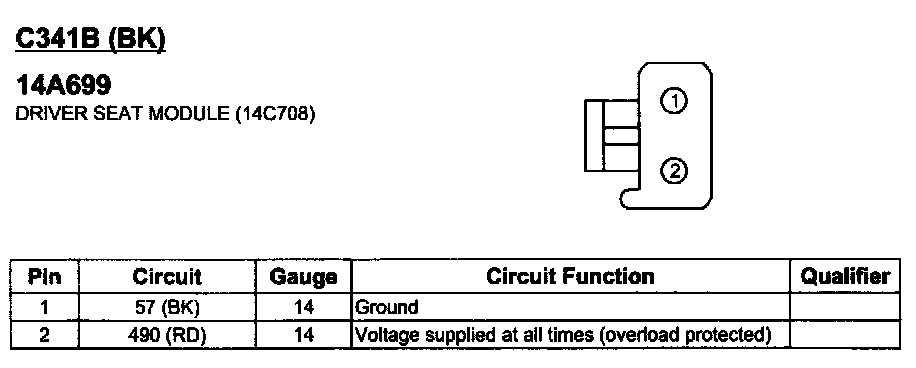

C341B:



C341C:
