Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Transmission and Drivetrain >> Flex Plate >> Specifications

Flex Plate: Specifications

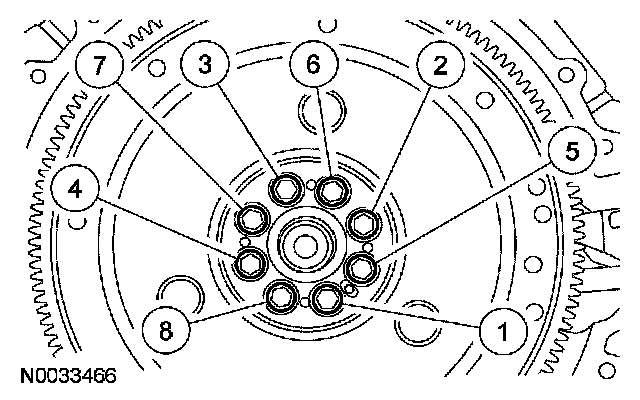

Flexplate bolts
First pass 15 Nm (11 ft. lbs.)
Final pass 110 Nm (81 ft. lbs.)
