Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> External Controls

External Controls

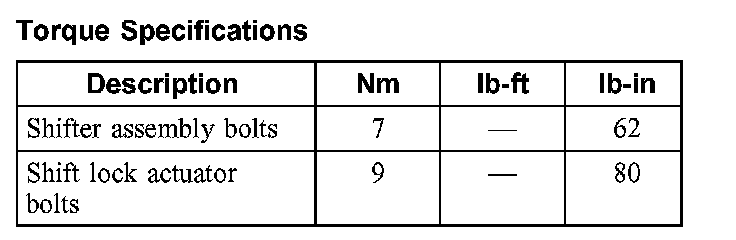

Torque Specifications (Part 1):

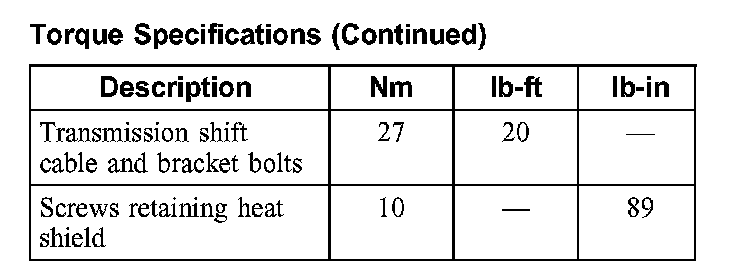

Torque Specifications (Part 2):
