Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Relay >> SSP 3 Relay

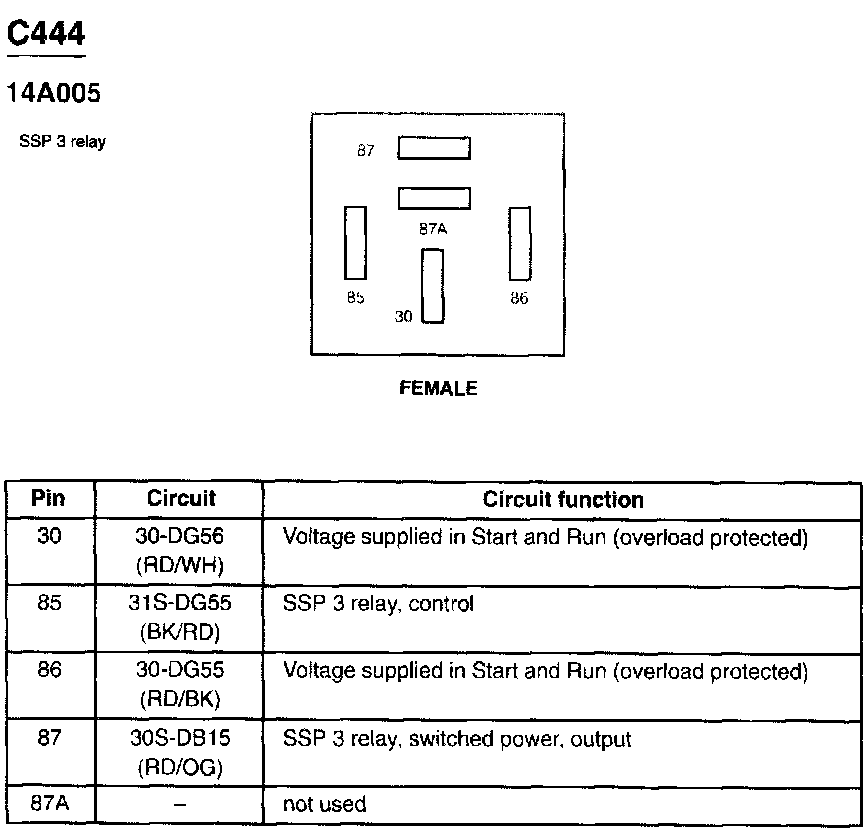

SSP 3 Relay

C444:
