Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light >> Map Reading Lamp, Right Front

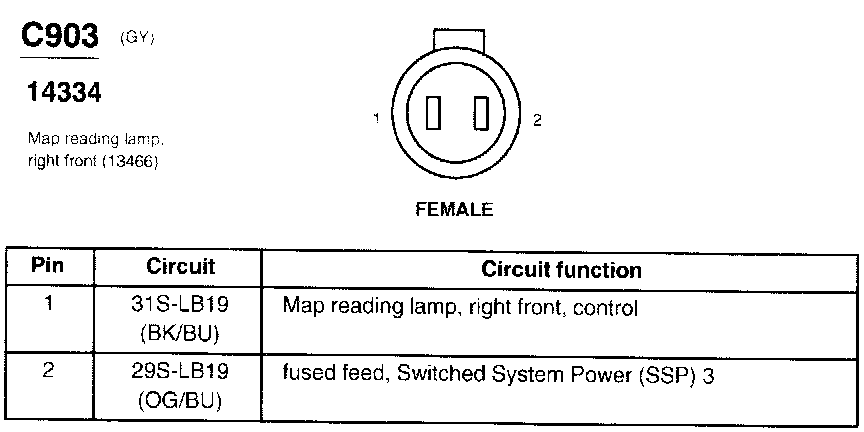

Map Reading Lamp, Right Front

C903:
