Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Control Module >> Diagrams

Parking Brake Control Module: Diagrams

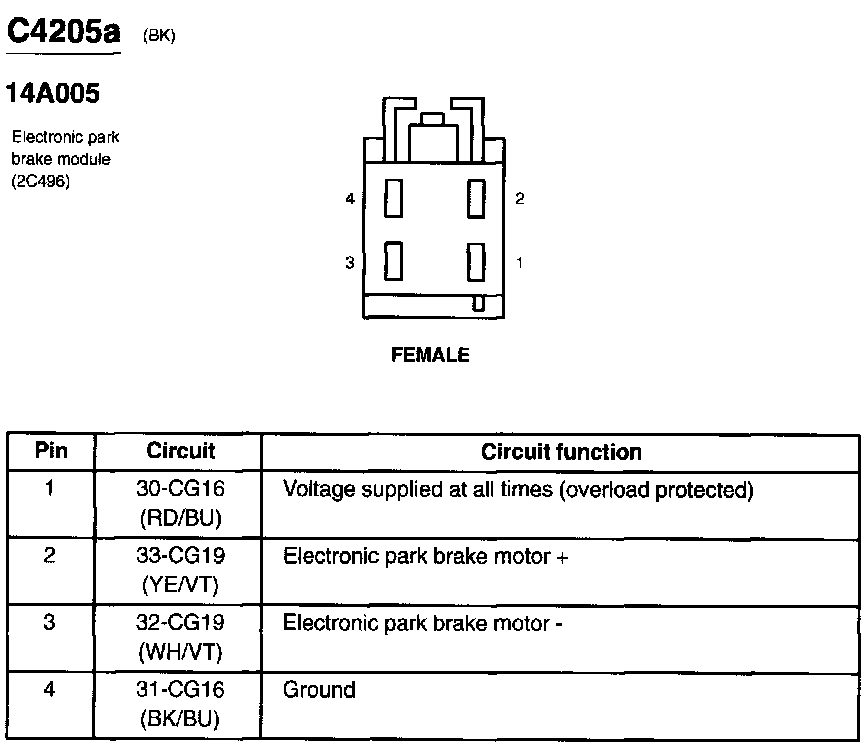

C4205a:

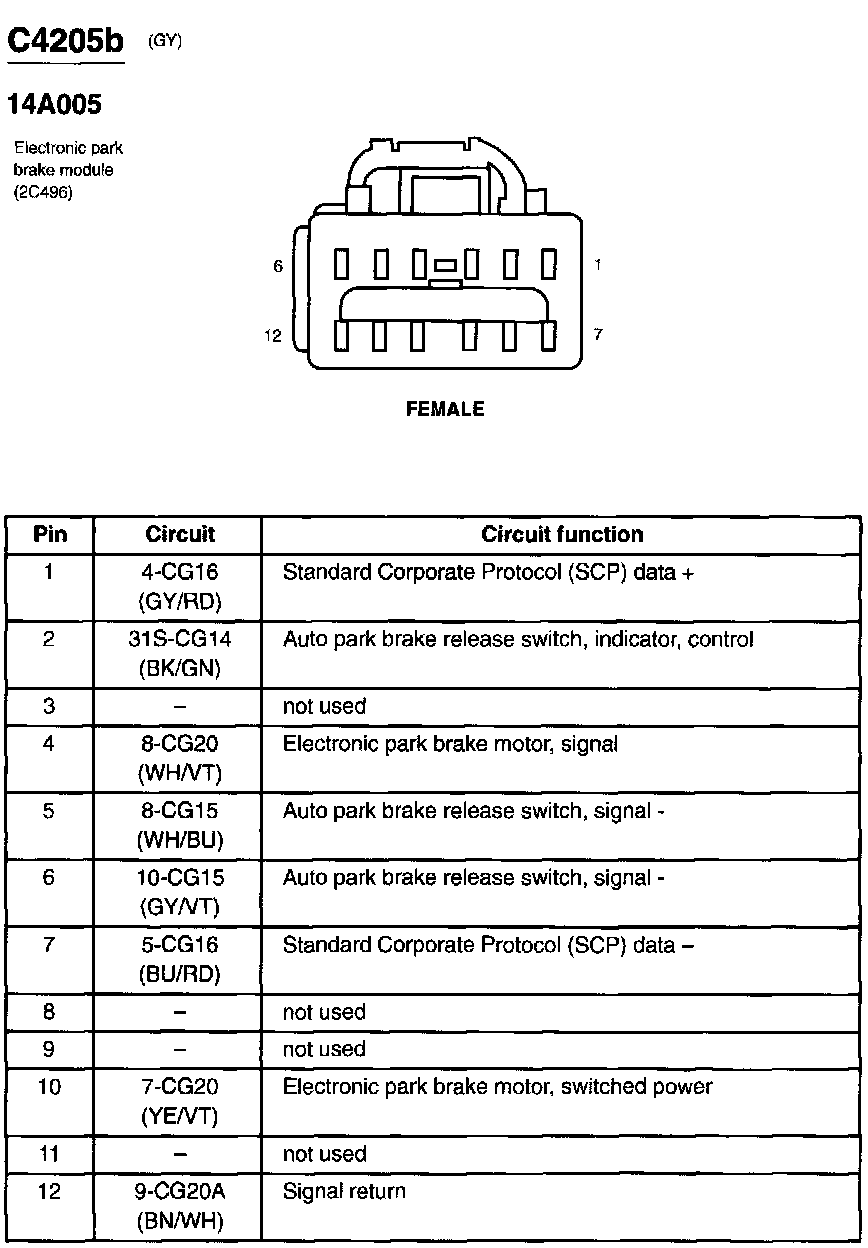

C4205b:
