Engine Lubrication
Exploded View,
Oil Pan
, Oil Pump, Oil Pump Screen and Pickup Tube

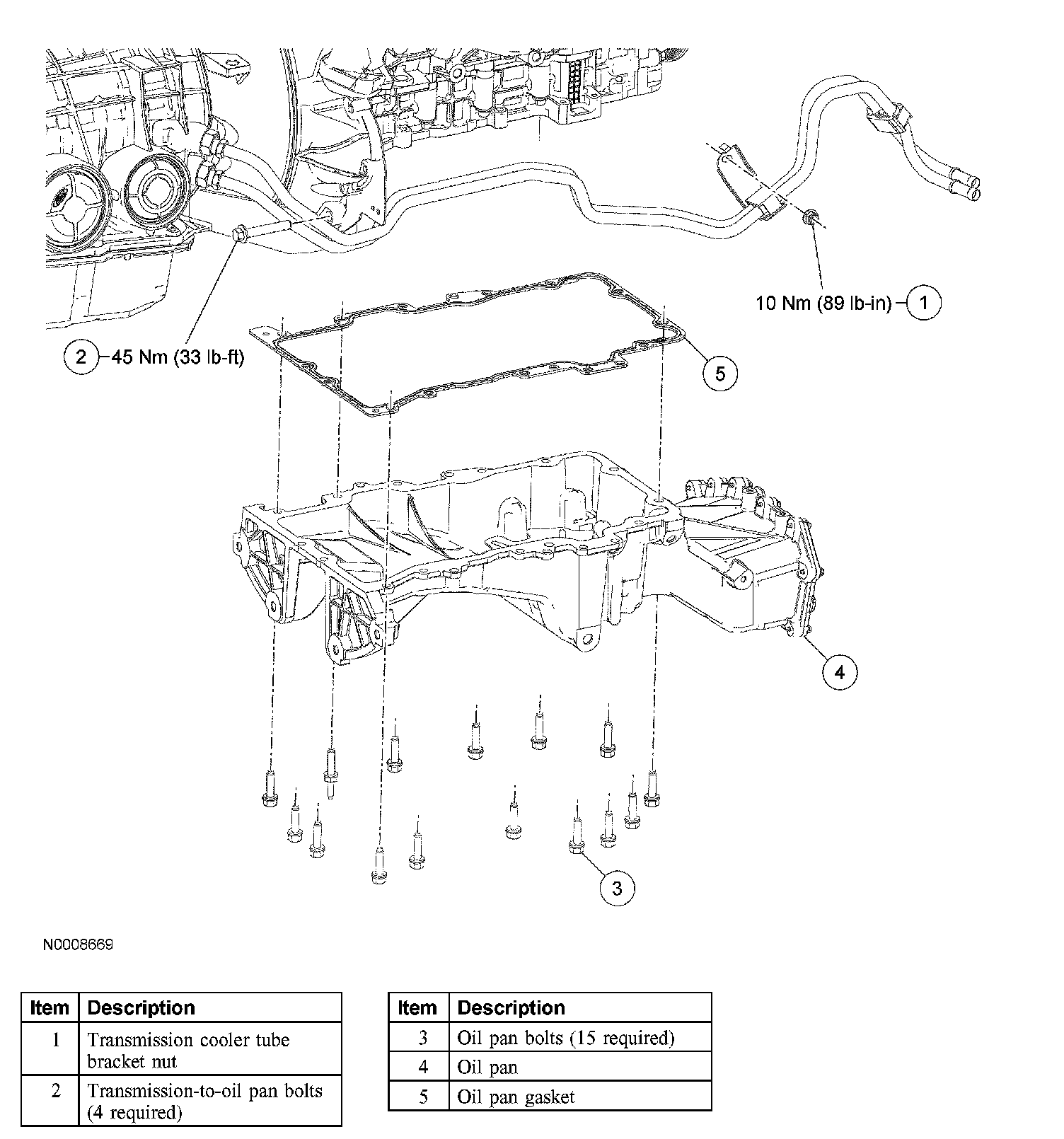

Oil Pan

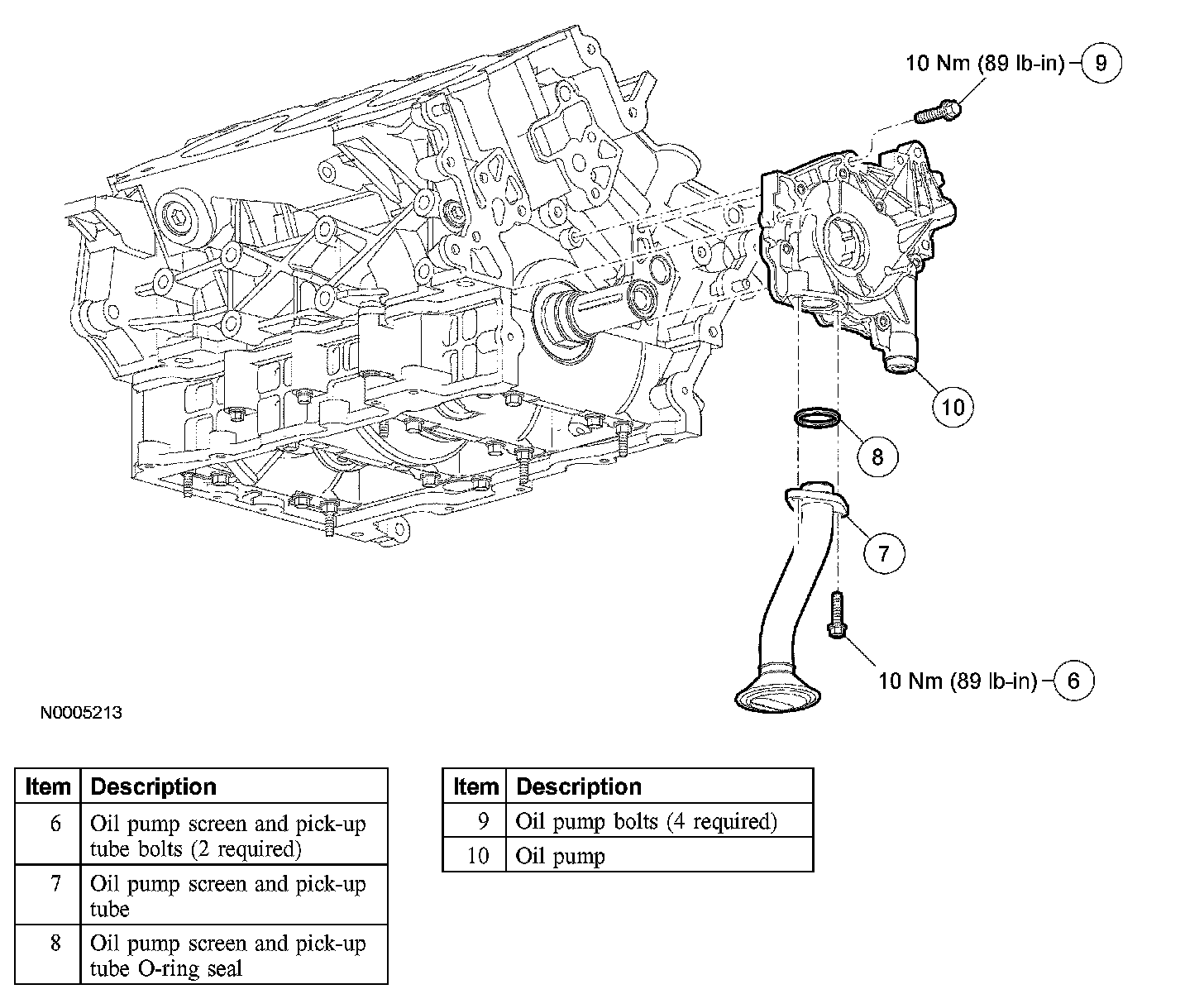

Oil Pump and Oil Pump Screen and Pickup Tube
