A/T Technical Data

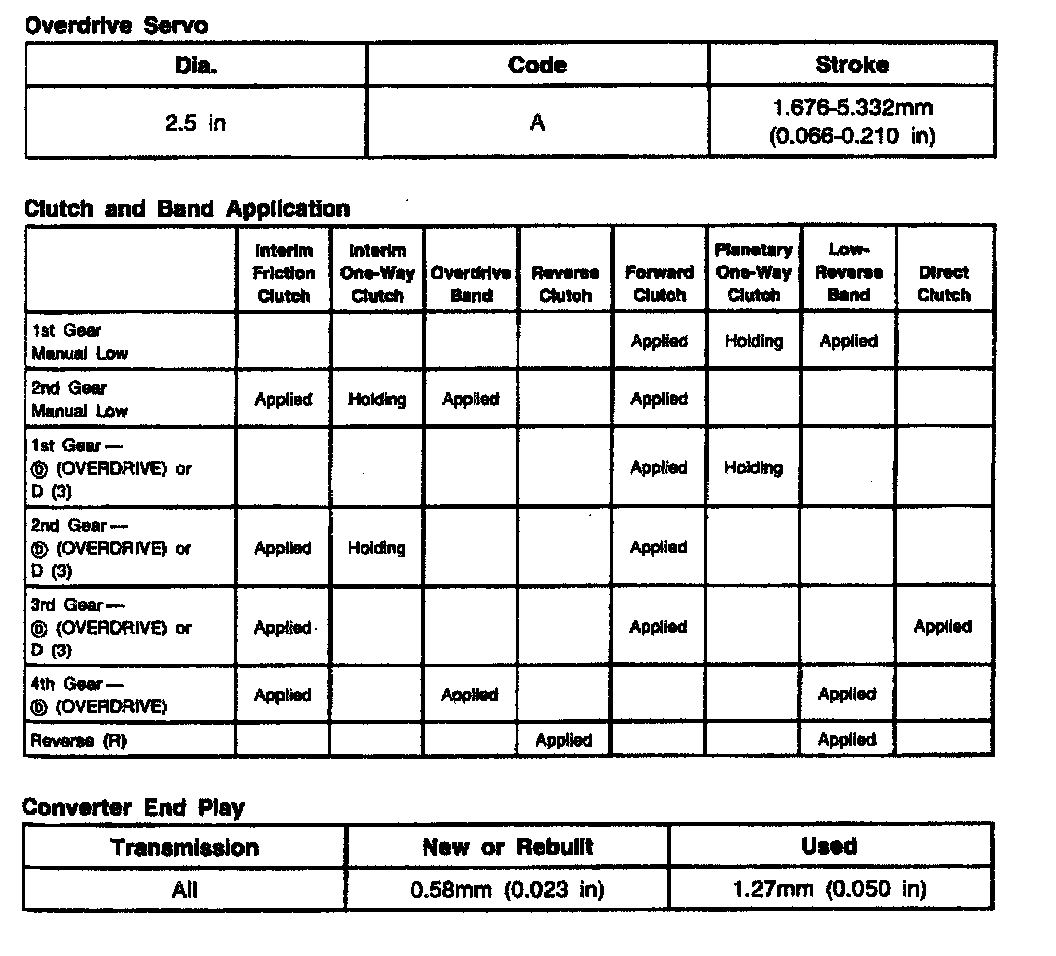

AODEW (4R70W) 4-spd A/T, Clutch/Low-Reverse Servo:





AODEW (4R70W) 4-spd A/T, Thrust/Clutch & Band Application:

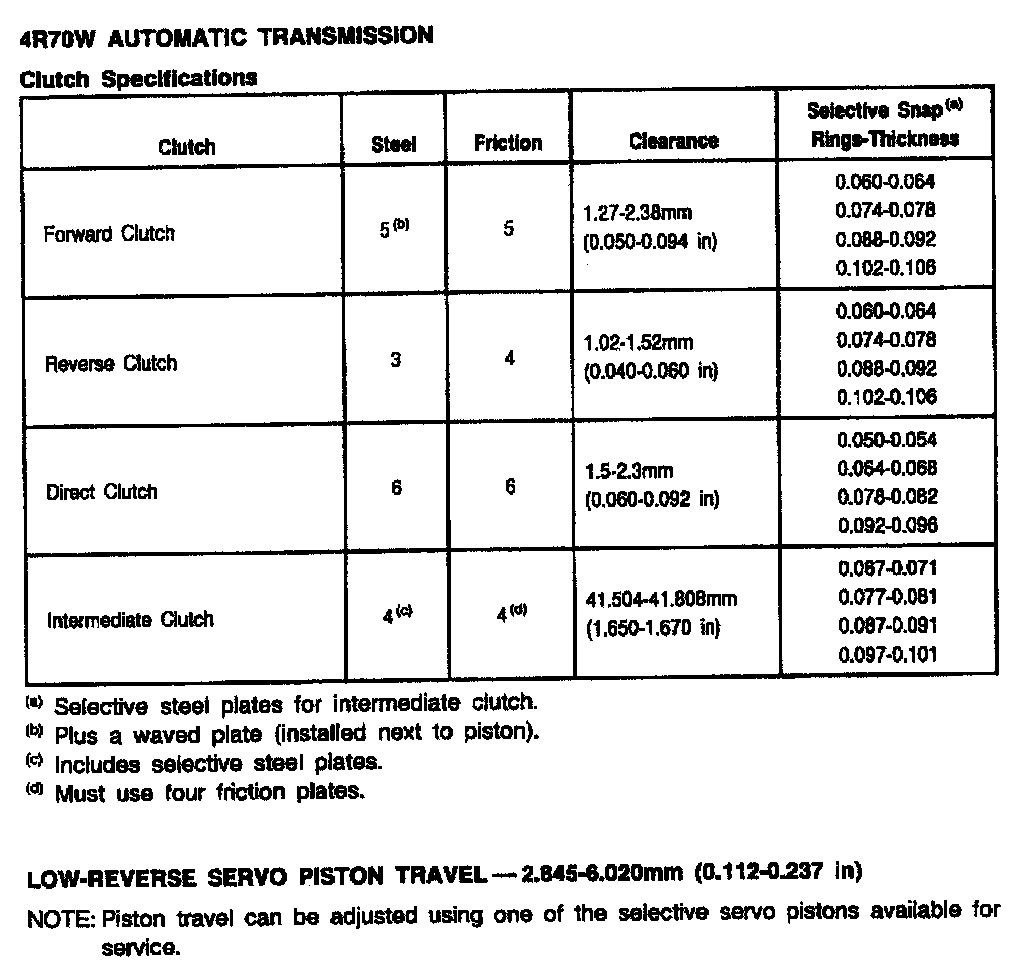

AODEW (4R70W) 4-spd A/T, Reverse Clutch:





AODEW (4R70W) 4-spd A/T, Forward/Intermediate Clutch:





AODEW (4R70W) 4-spd A/T, Shift Speeds:
