Home >> Lincoln >> 1985 >> Mark VII L6-146 2.4L DSL Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> A/T Technical Data

A/T Technical Data

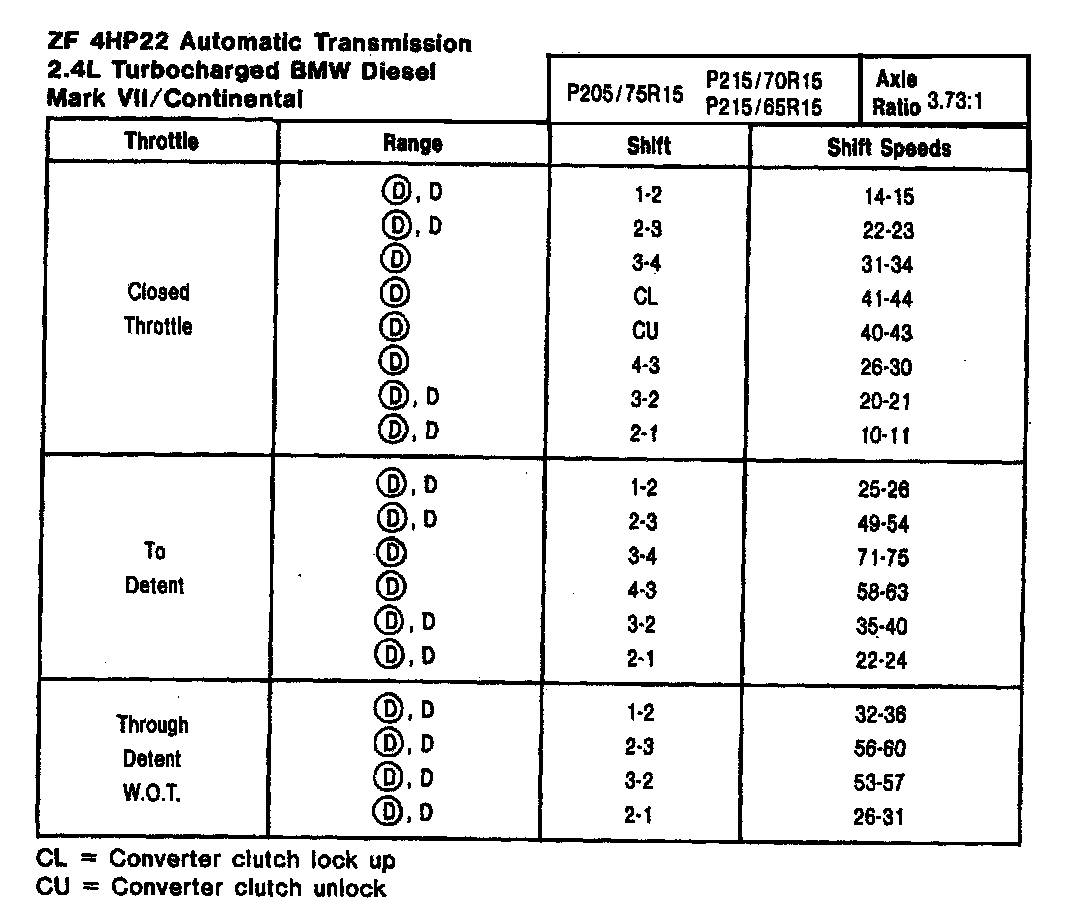

ZP 4HP22 4-spd A/T, Shift Speeds:
