Connector Reference and Terminal Readings - External Controls

Connector Reference and Terminal Readings

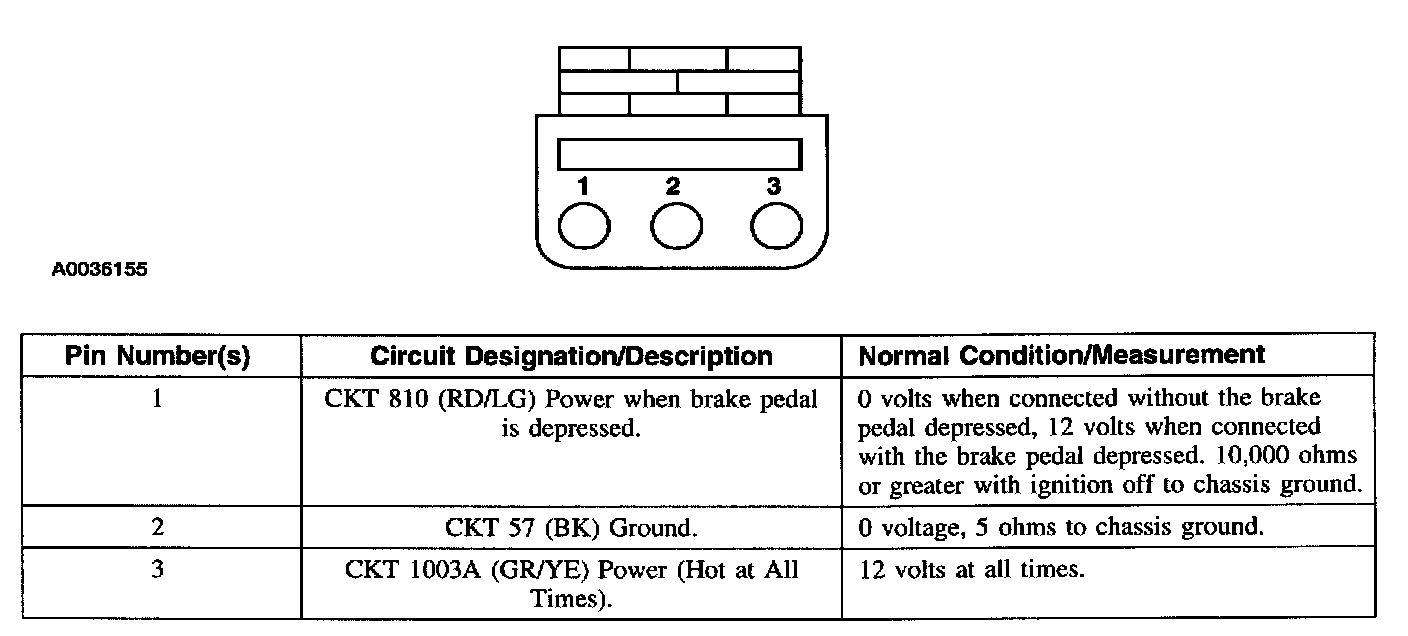

Brake Pedal Position (BPP) Switch C252

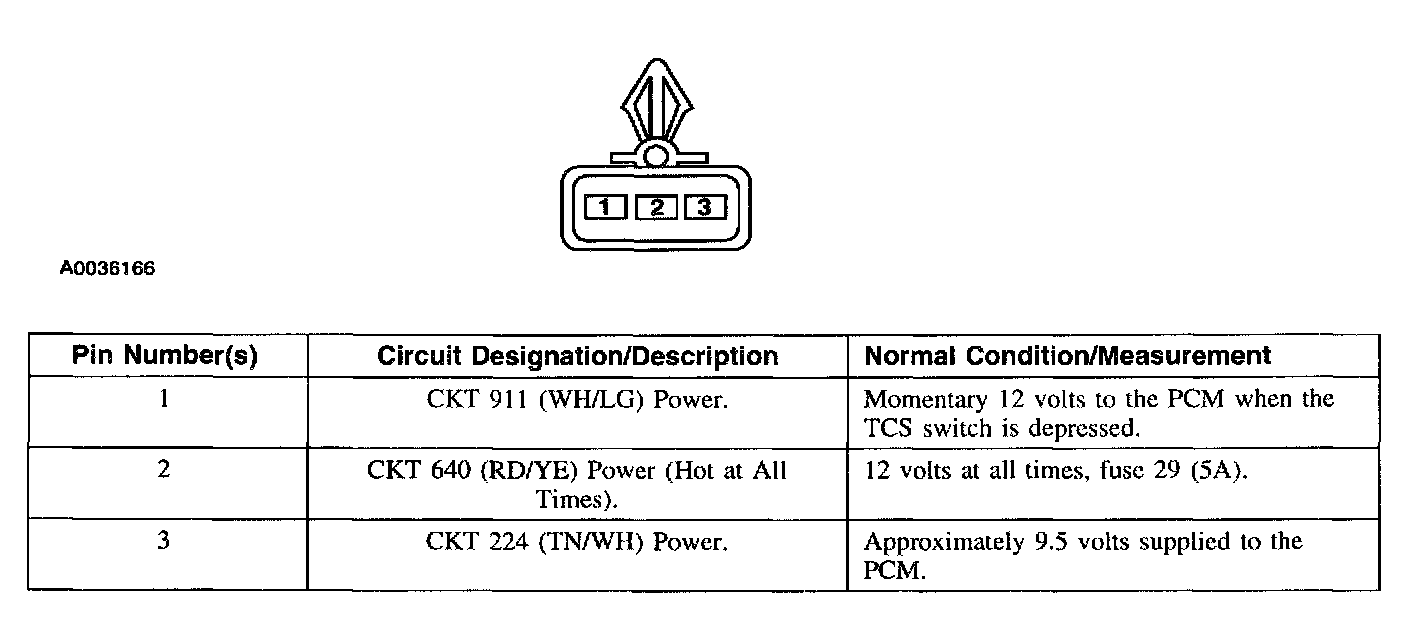

Brake Shift Interlock Actuator C2008

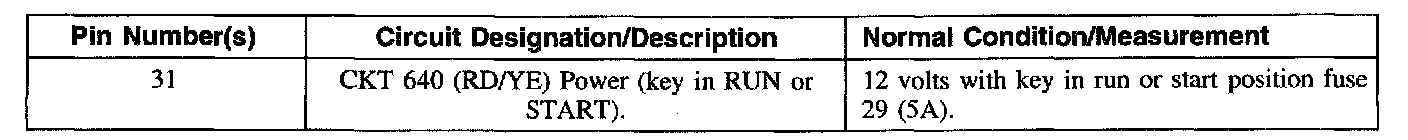

Central Junction Box Connector A (Tan) C242

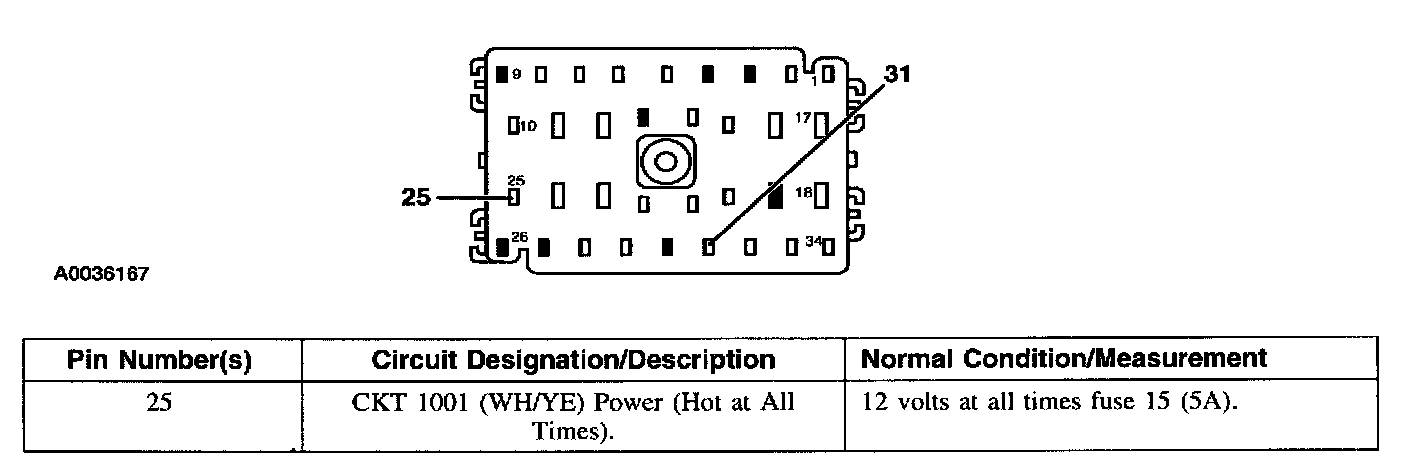

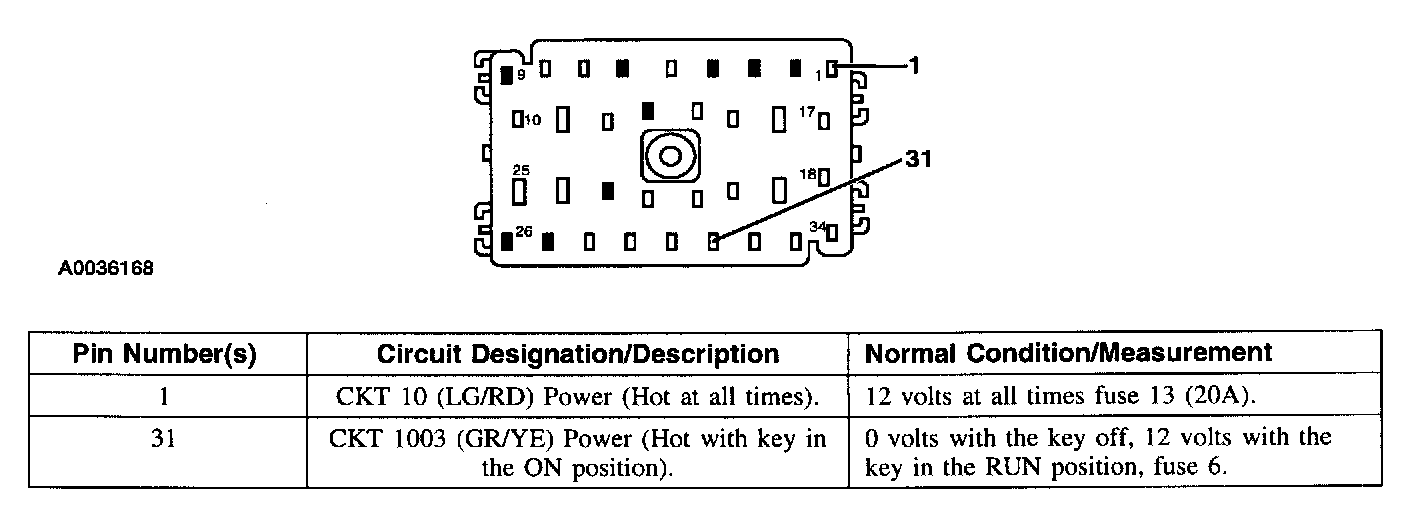

Central Junction Box Connector B (Brown) C243

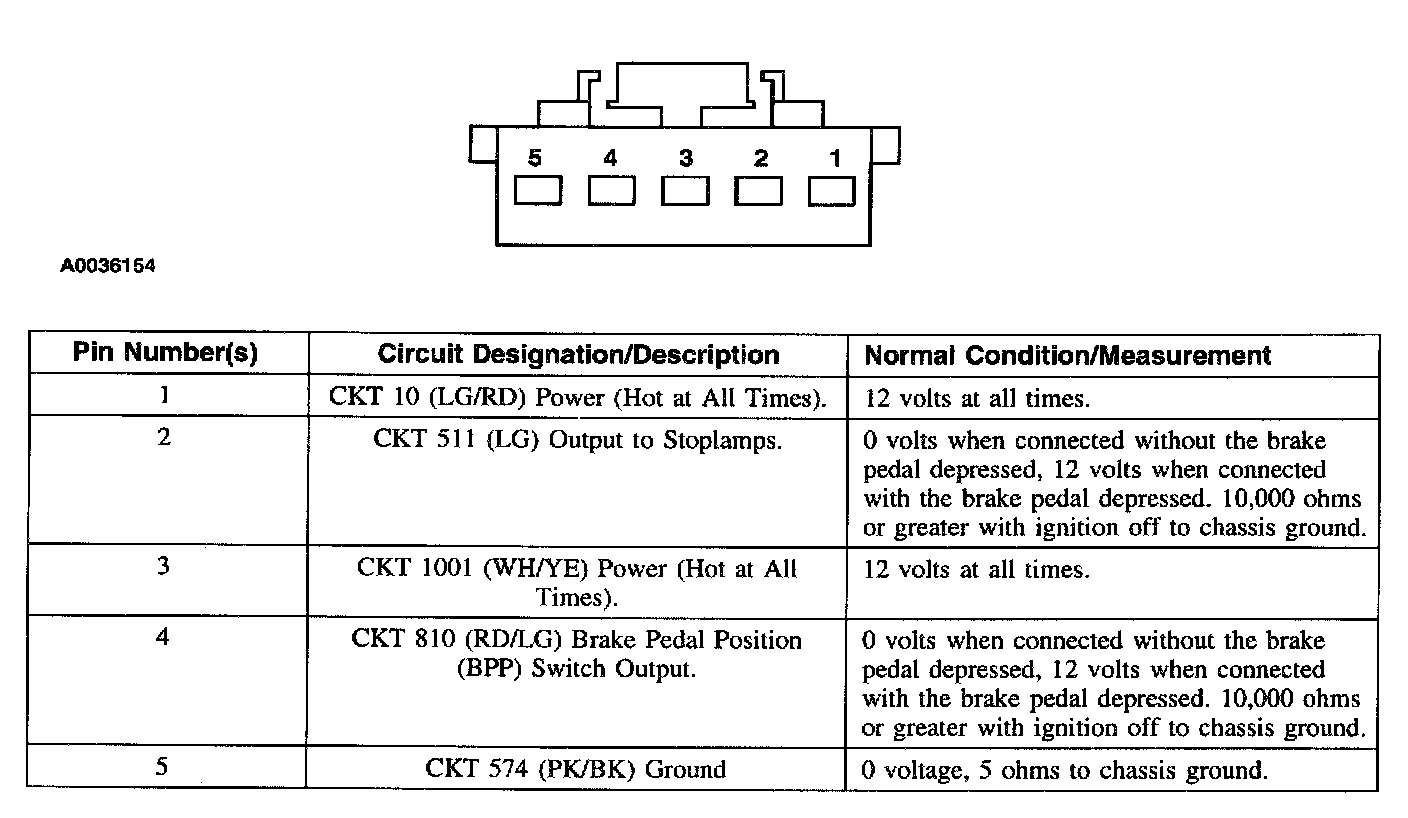

Powertrain Control Module (PCM) C174

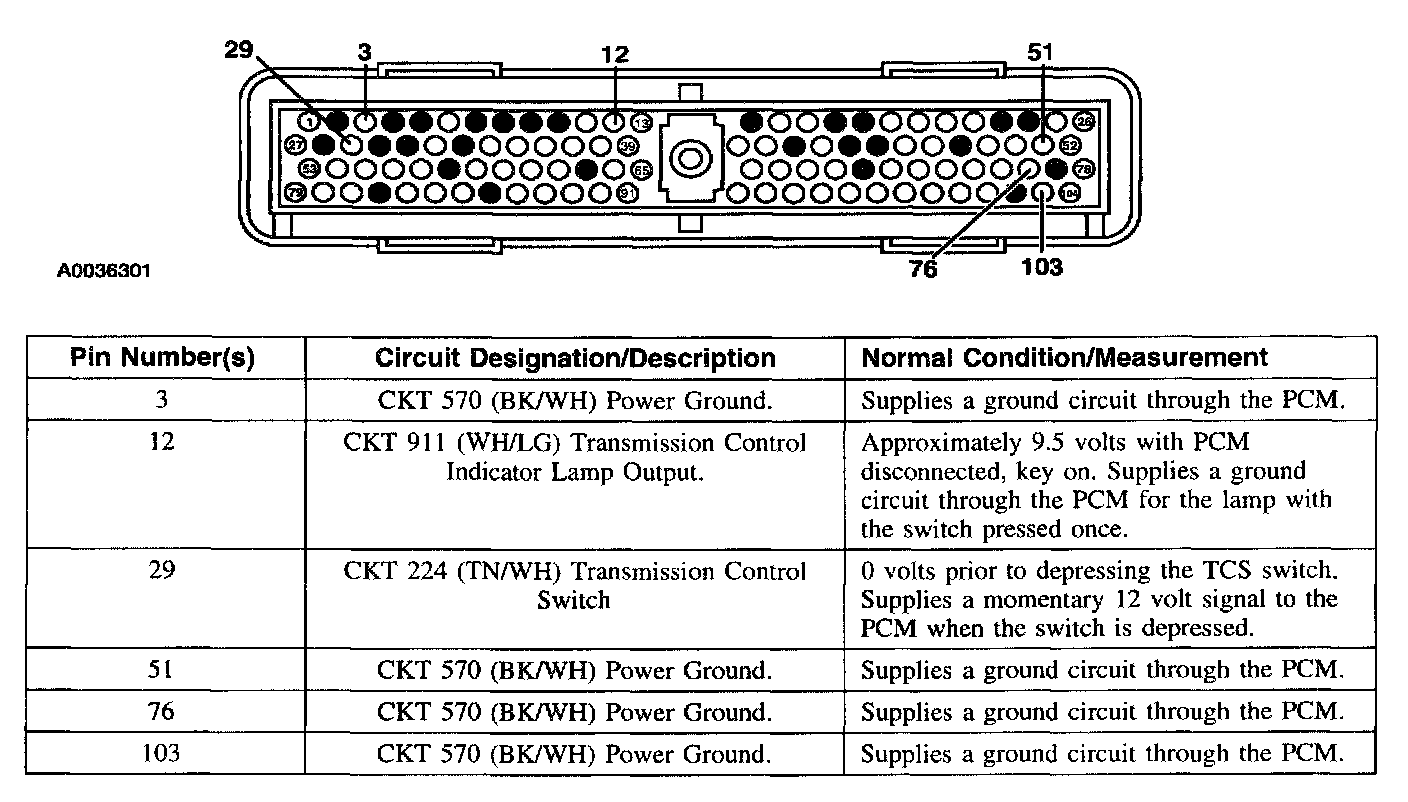

Transmission Control Switch C251
