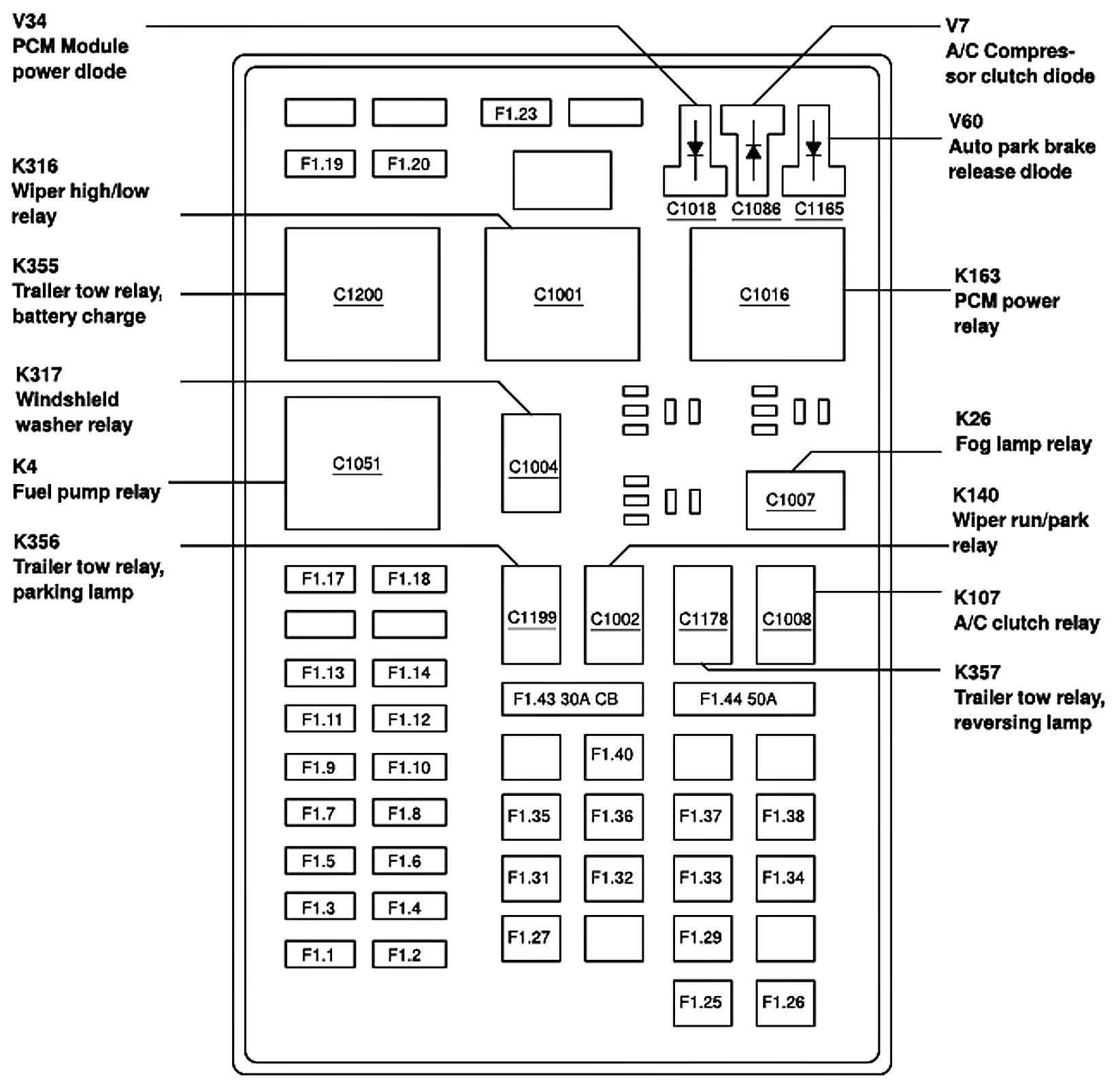

Power Distribution Box / Battery Junction Box (BJB)

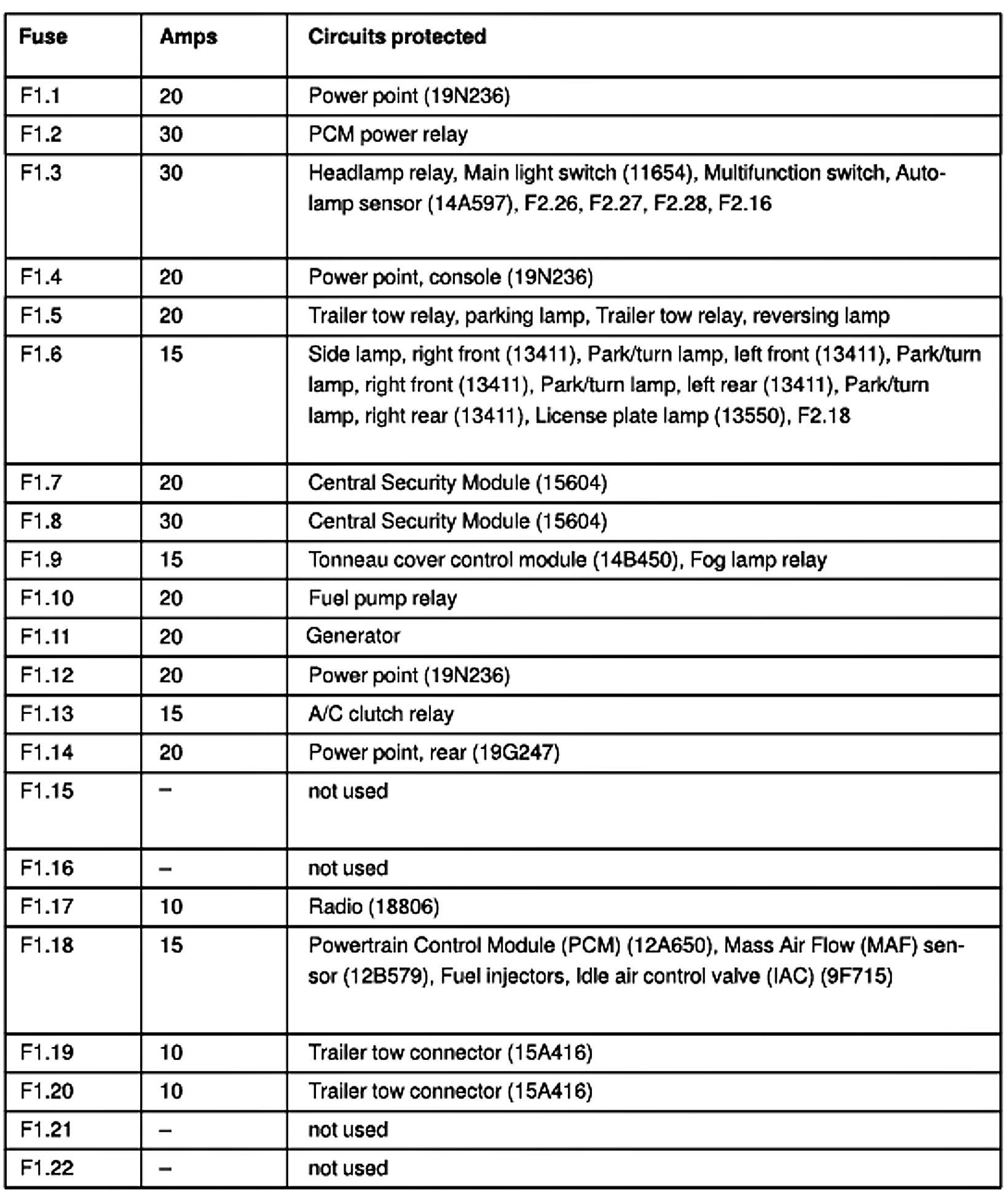

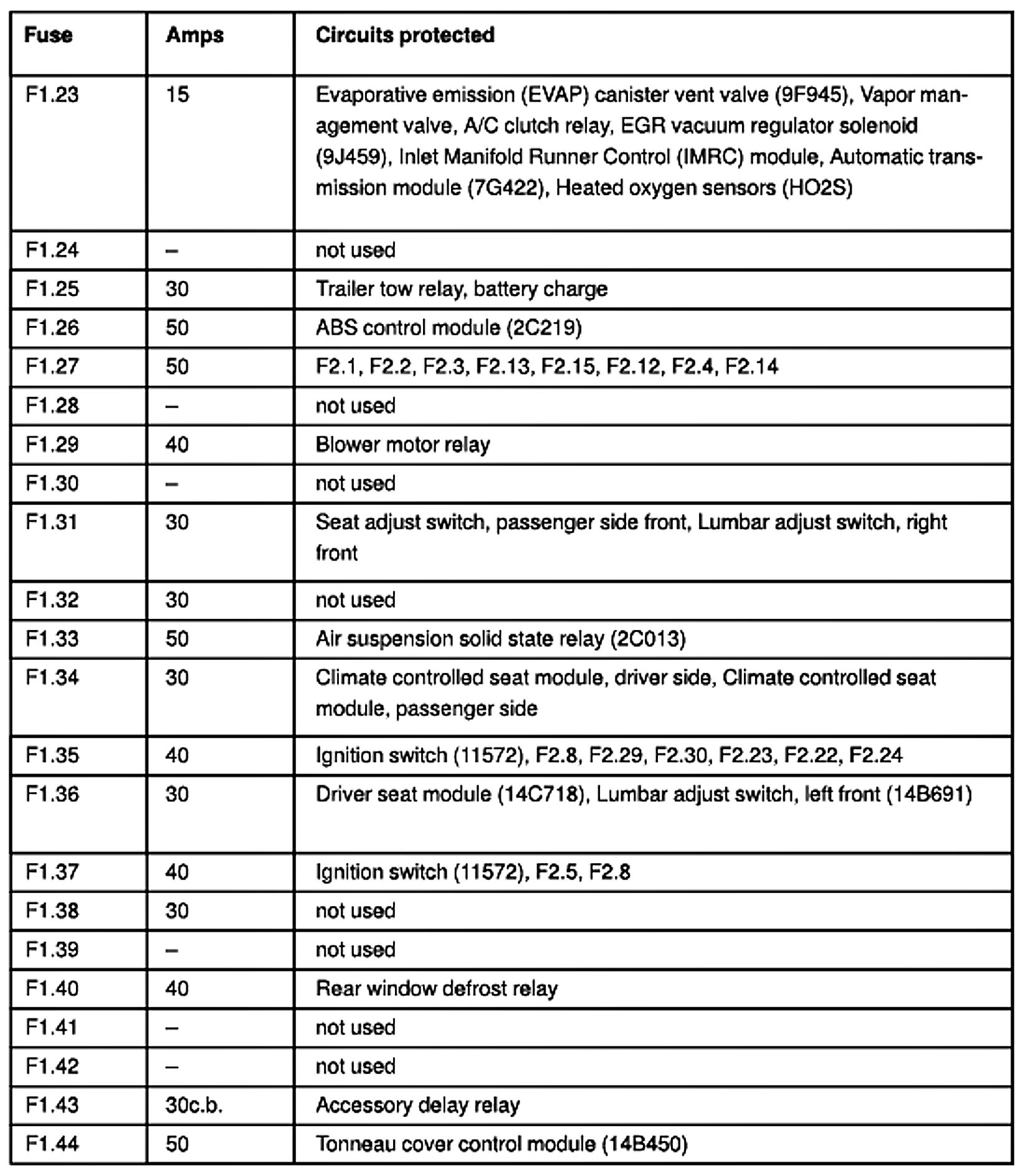

ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Power Distribution Box / Battery Junction Box (BJB).
