Fuel Tank Pressure Sensor: Service and Repair

REMOVAL
1. Remove the fuel tank.

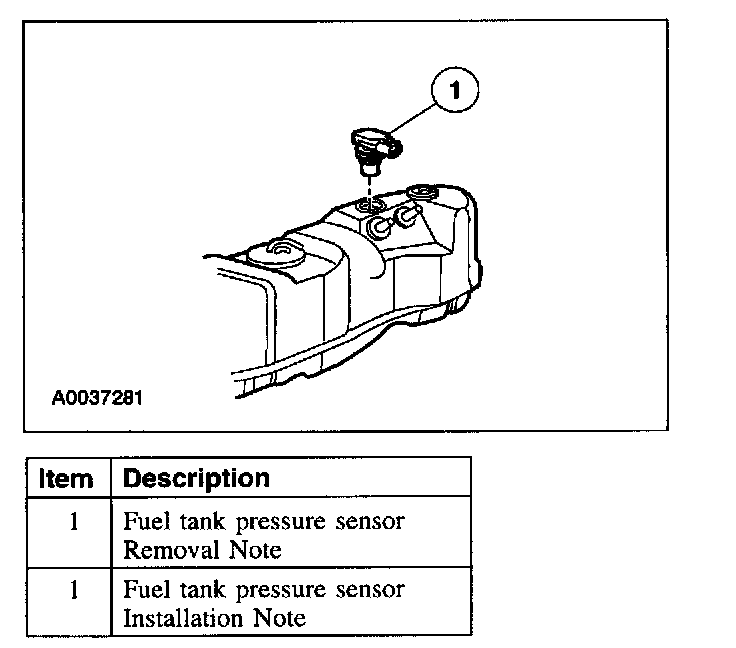

2. Remove the components as indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.

Item 1: Fuel Tank Pressure Sensor Removal Note
1. Press down and rotate the fuel tank pressure sensor counterclockwise and remove it from the fuel tank.

Item 1: Fuel Tank Pressure Sensor Installation Note
1. Leak test the system. Evaporative Emission System Leak Test
2. Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
