Engine Temperature Sensor: Service and Repair

REMOVAL
1. Raise the vehicle on a hoist.

WARNING: THE ELECTRICAL POWER TO THE AIR SUSPENSION SYSTEM MUST BE SHUT OFF PRIOR TO HOISTING OR JACKING AN AIR SUSPENSION VEHICLE. THIS CAN BE ACCOMPLISHED BY TURNING OFF THE AIR SUSPENSION SWITCH LOCATED BELOW THE GLOVE BOX IN THE LOWER RIGHT OF THE PASSENGER FOOT WELL. FAILURE TO DO SO CAN RESULT IN UNEXPECTED INFLATION OR DEFLATION OF THE AIR SPRINGS, WHICH CAN RESULT IN SHIFTING OF THE VEHICLE DURING THE OPERATIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

2. Remove the right front fender splash shield.
3. Remove the dual converter Y-pipe.

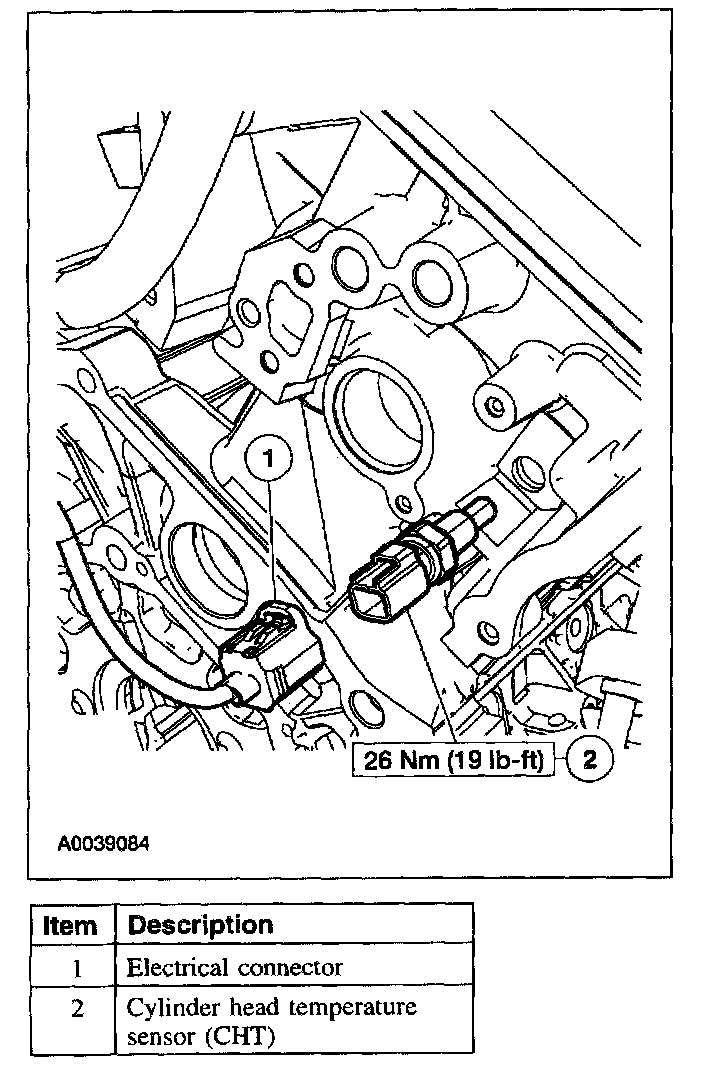

4. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
