Air Flow Meter/Sensor: Service and Repair

REMOVAL and Installation
1. Remove the air cleaner inlet and outlet as an assembly.

CAUTION: Do not tamper with the sensing elements located in the Mass Air Flow (MAF) sensor. Tampering may result in unit failure.

NOTE: The MAF sensor module and body are calibrated and serviced as a unit.

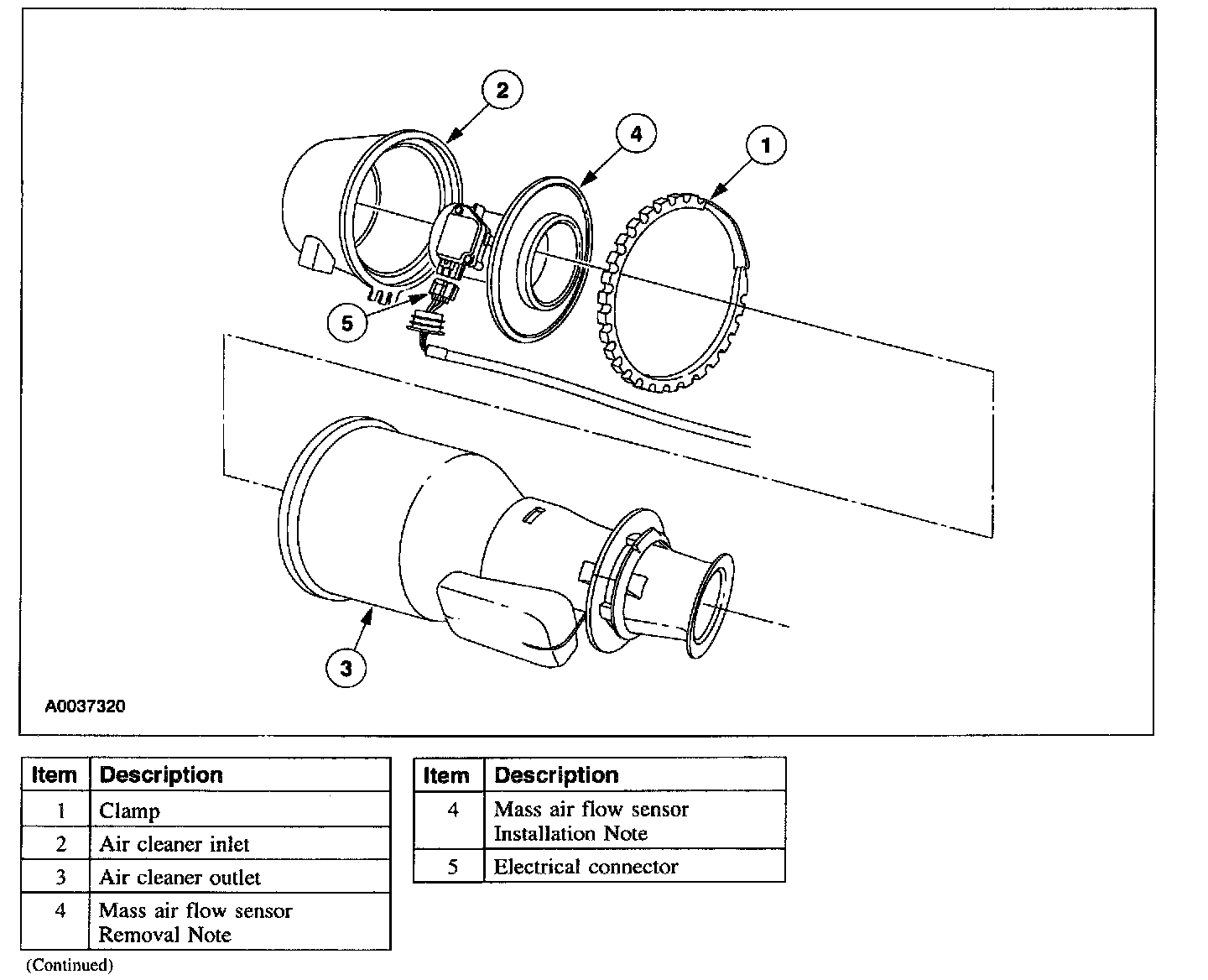

2. Remove the components as indicated in the illustration and table.

3. To install, reverse the removal procedure.

Item 4: Mass Air Flow Sensor Removal Note

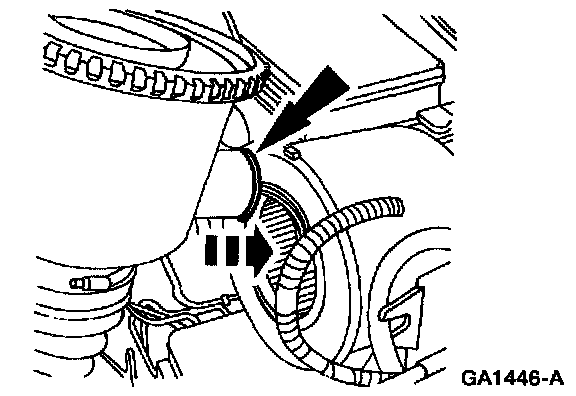

1. Remove the grommet from the outlet side of the air cleaner and slide the grommet down the wiring harness.

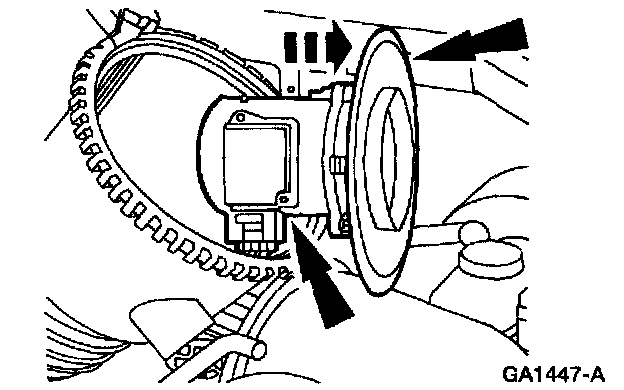

2. Remove the MAF sensor plate from the outlet side of the air cleaner.

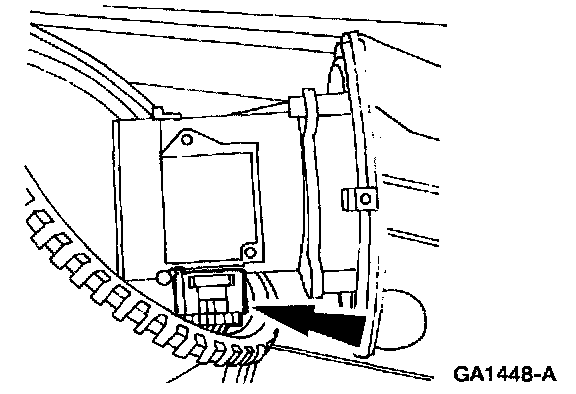

3. Disconnect the MAF sensor electrical connector.

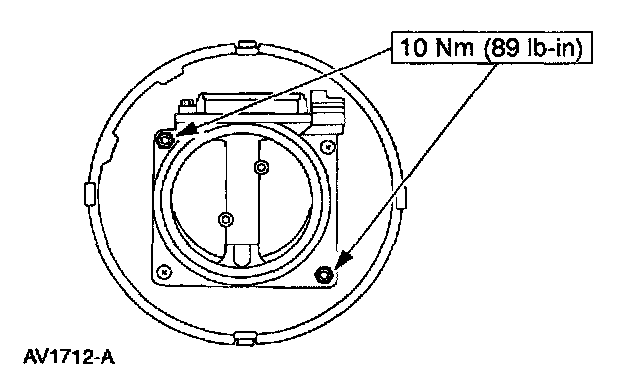

4. Separate the MAF sensor plate from the MAF sensor.

Item 4: Mass Air Flow Sensor Installation Note

CAUTION: The grommet used to seal the engine air cleaner at the wiring harness must be fully seated. Failure to follow these instructions will result in unmetered air entering the engine.

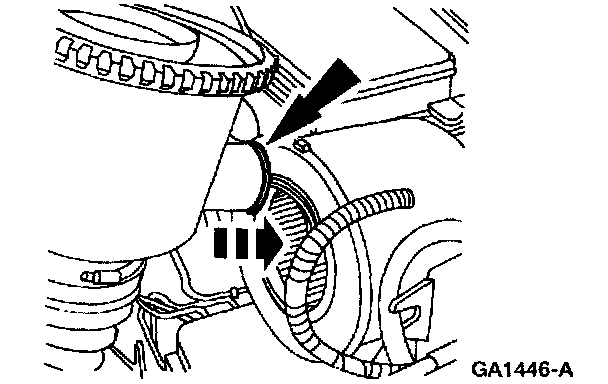

1. Install the sensor grommet.
