Camshaft Position Sensor: Service and Repair

REMOVAL

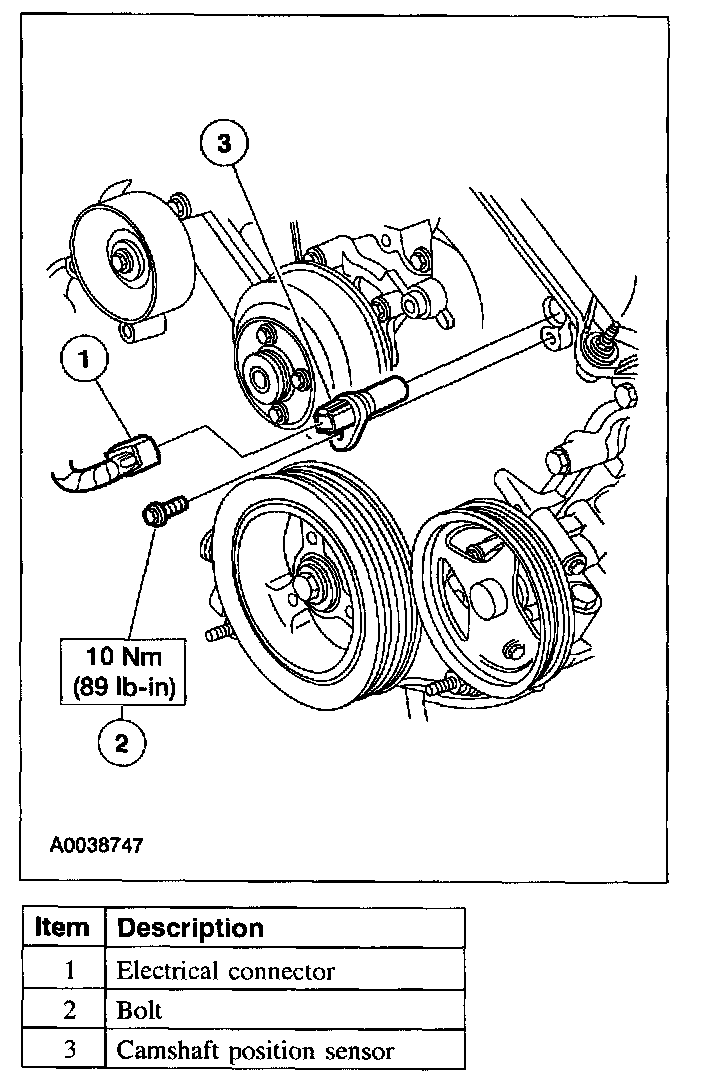

NOTE: Drive belt not shown for clarity.







1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
