Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> RH Reverse Lamp C461

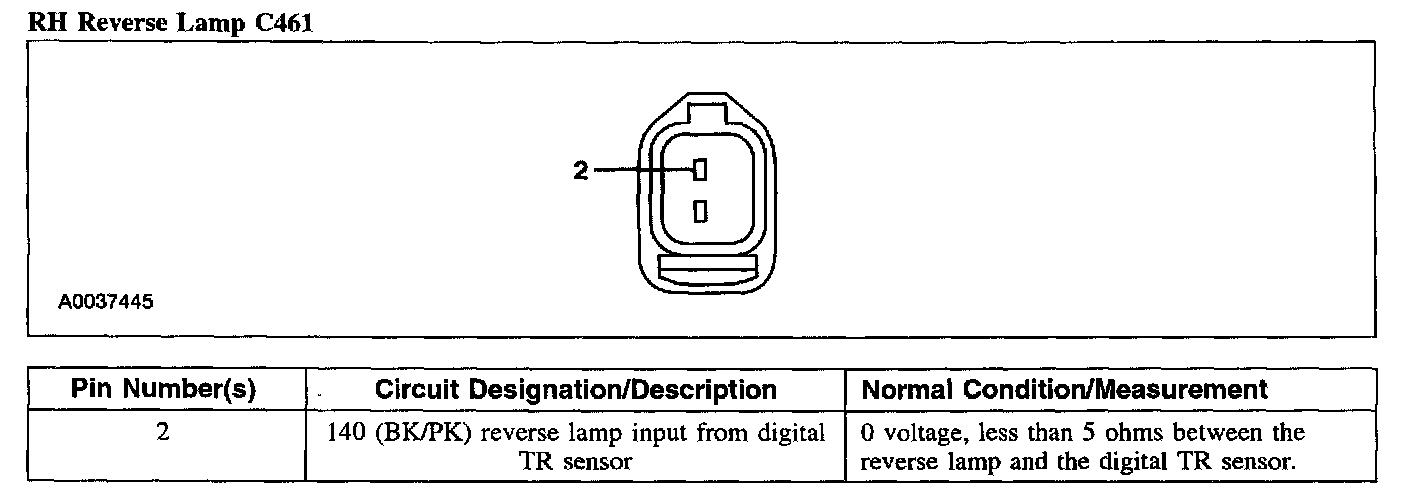

RH Reverse Lamp C461

RH Reverse Lamp C461:
