Lincoln Truck
>>
2002
>>
Blackwood V8-5.4L DOHC VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Horn
Horn

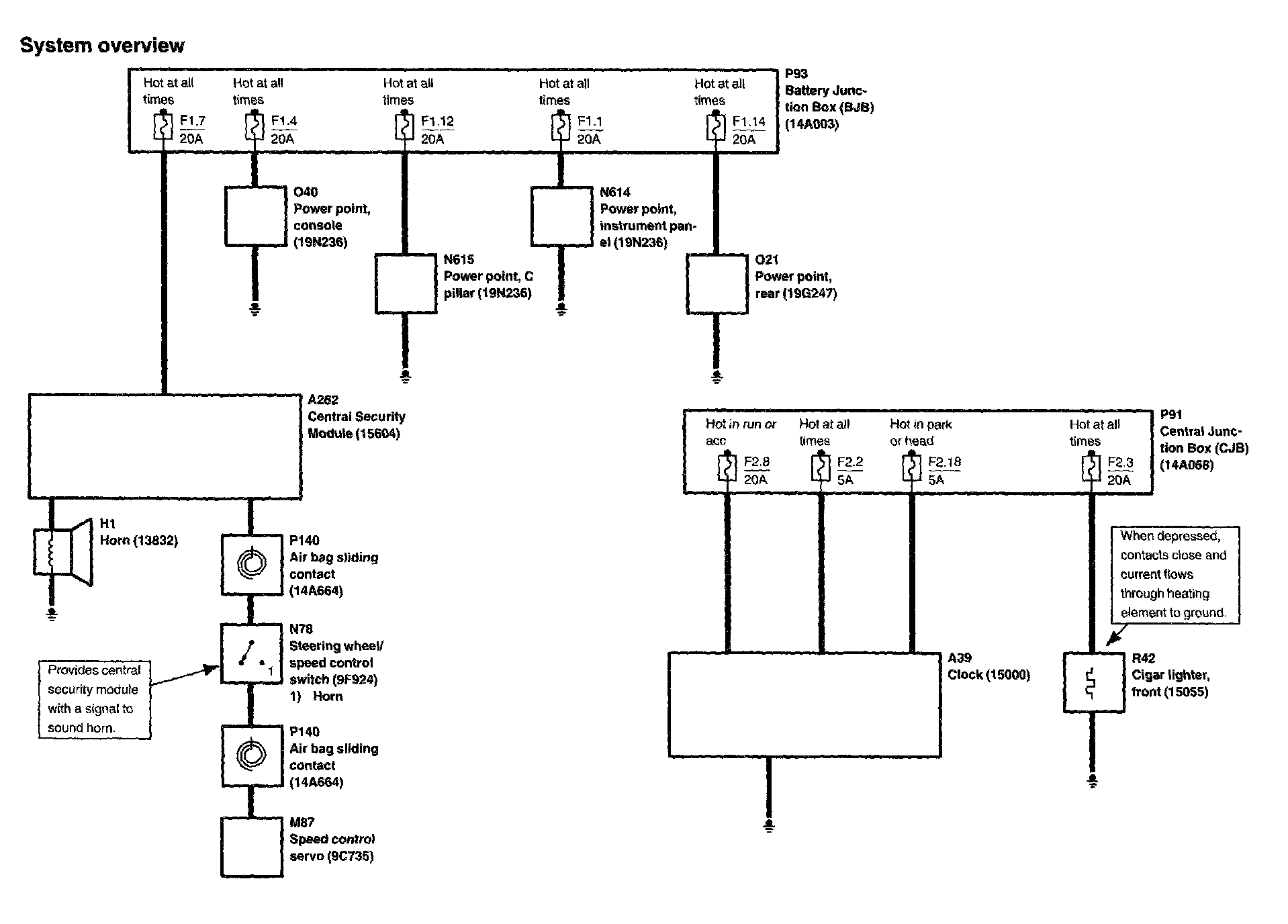

Diagram 44-1:

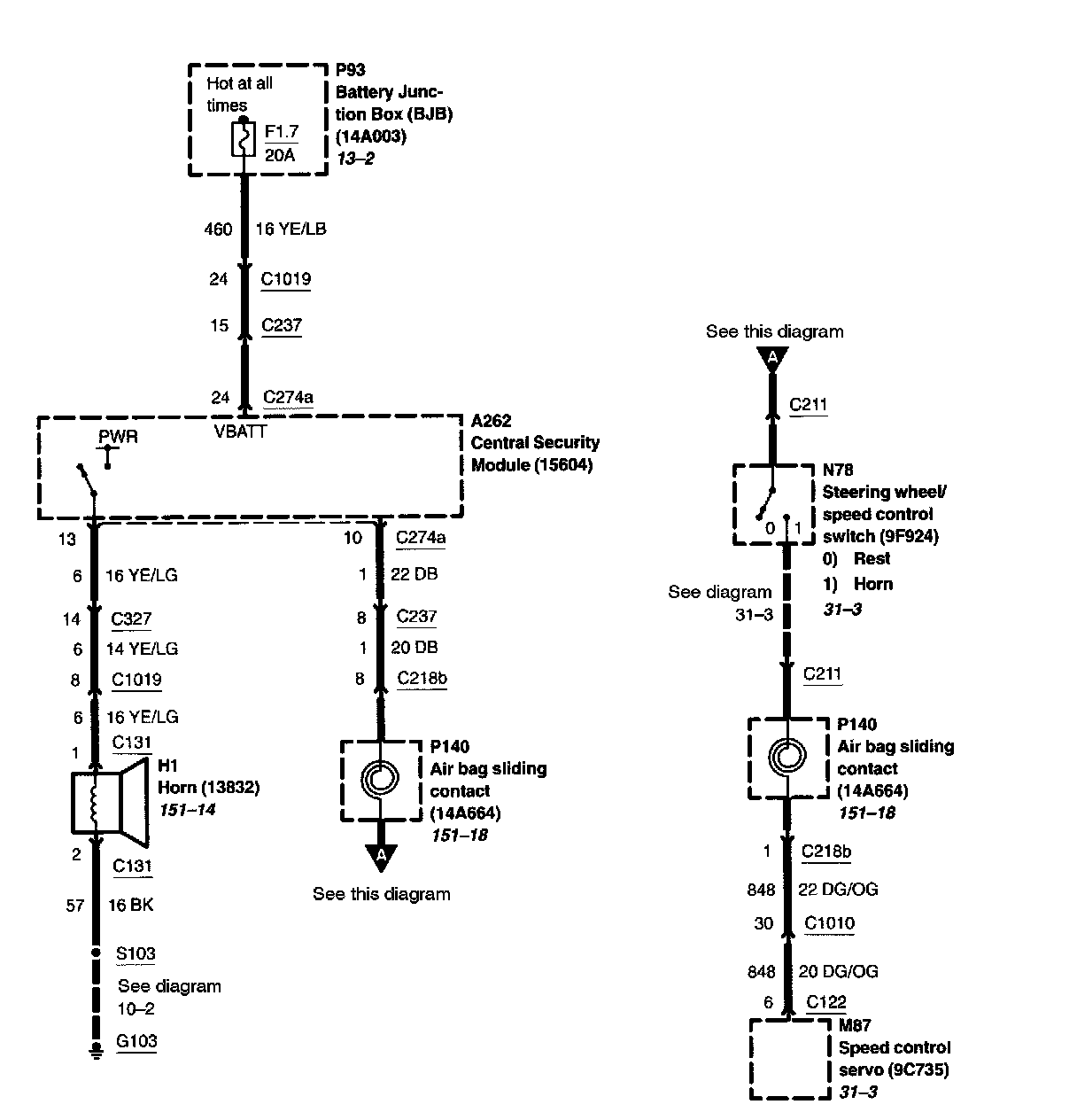

Diagram 44-2:

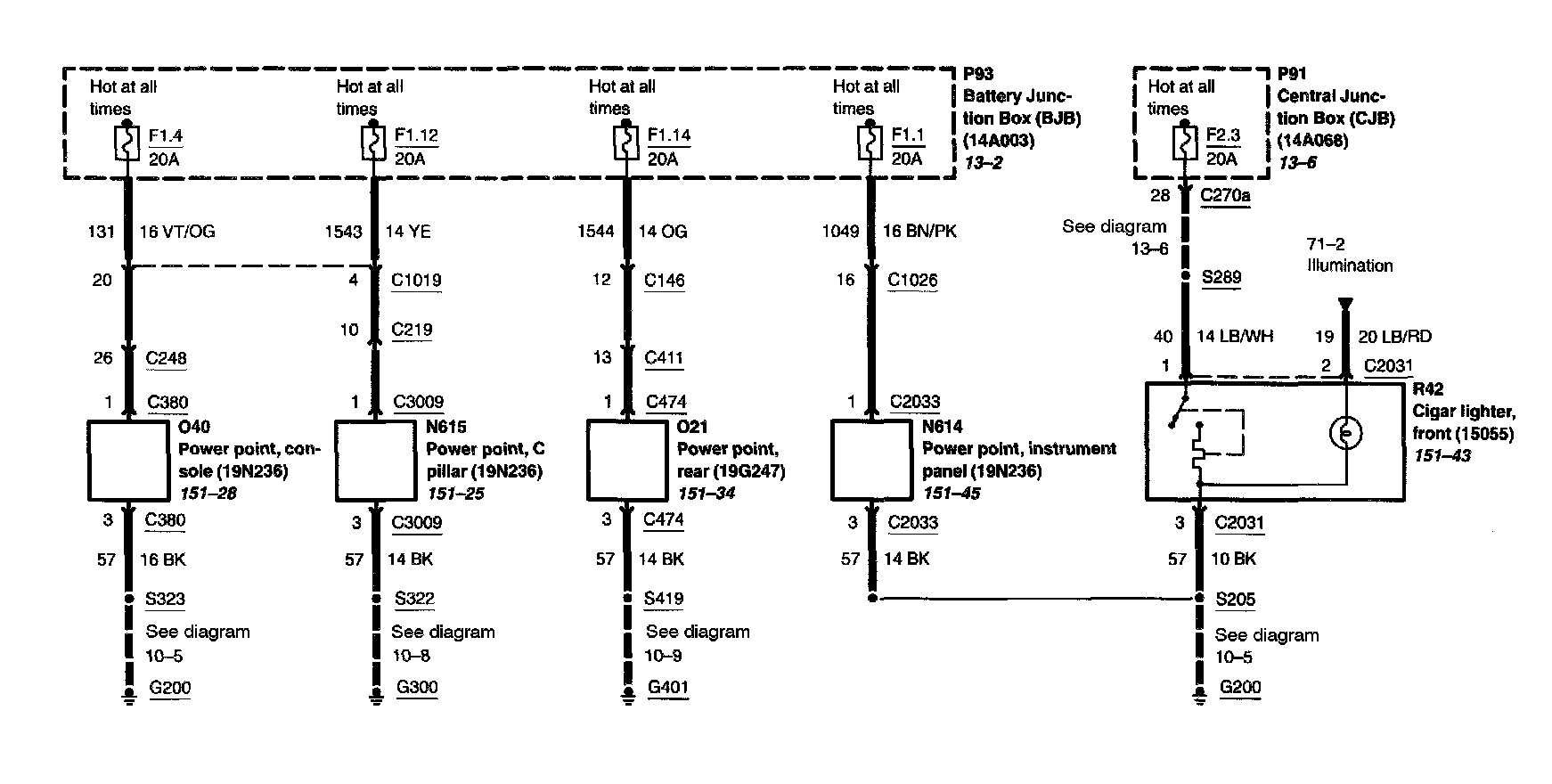

Diagram 44-3:
Diagram 44-4:
