Driver Seat Module (DSM) C341b

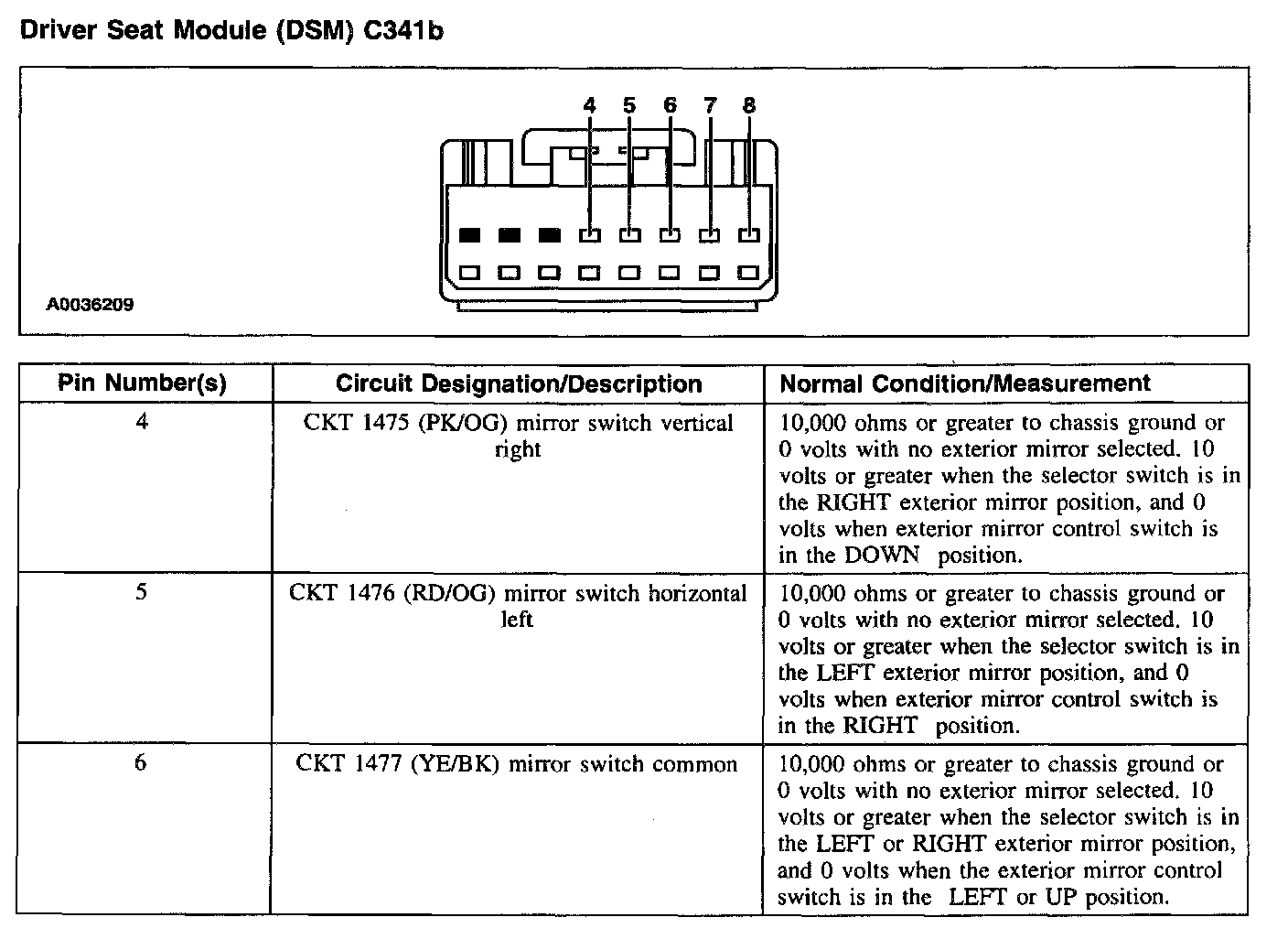

Driver Seat Module (DSM) C341b, Part 1:

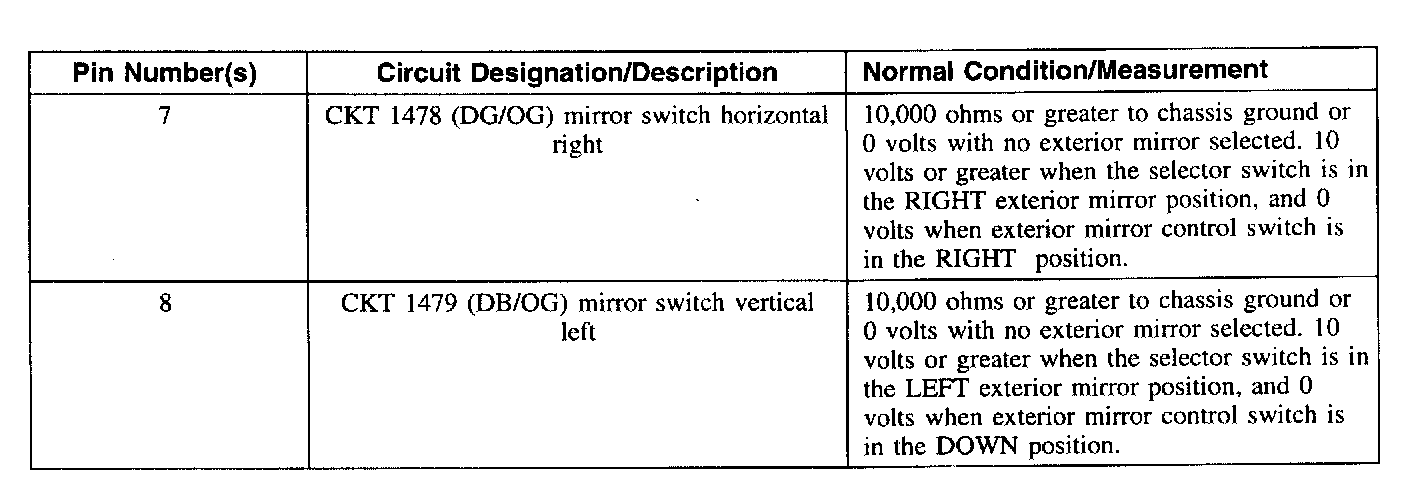

Driver Seat Module (DSM) C341b, Part 2:
