Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Driver Seat Module (DSM) C341a

Driver Seat Module (DSM) C341a

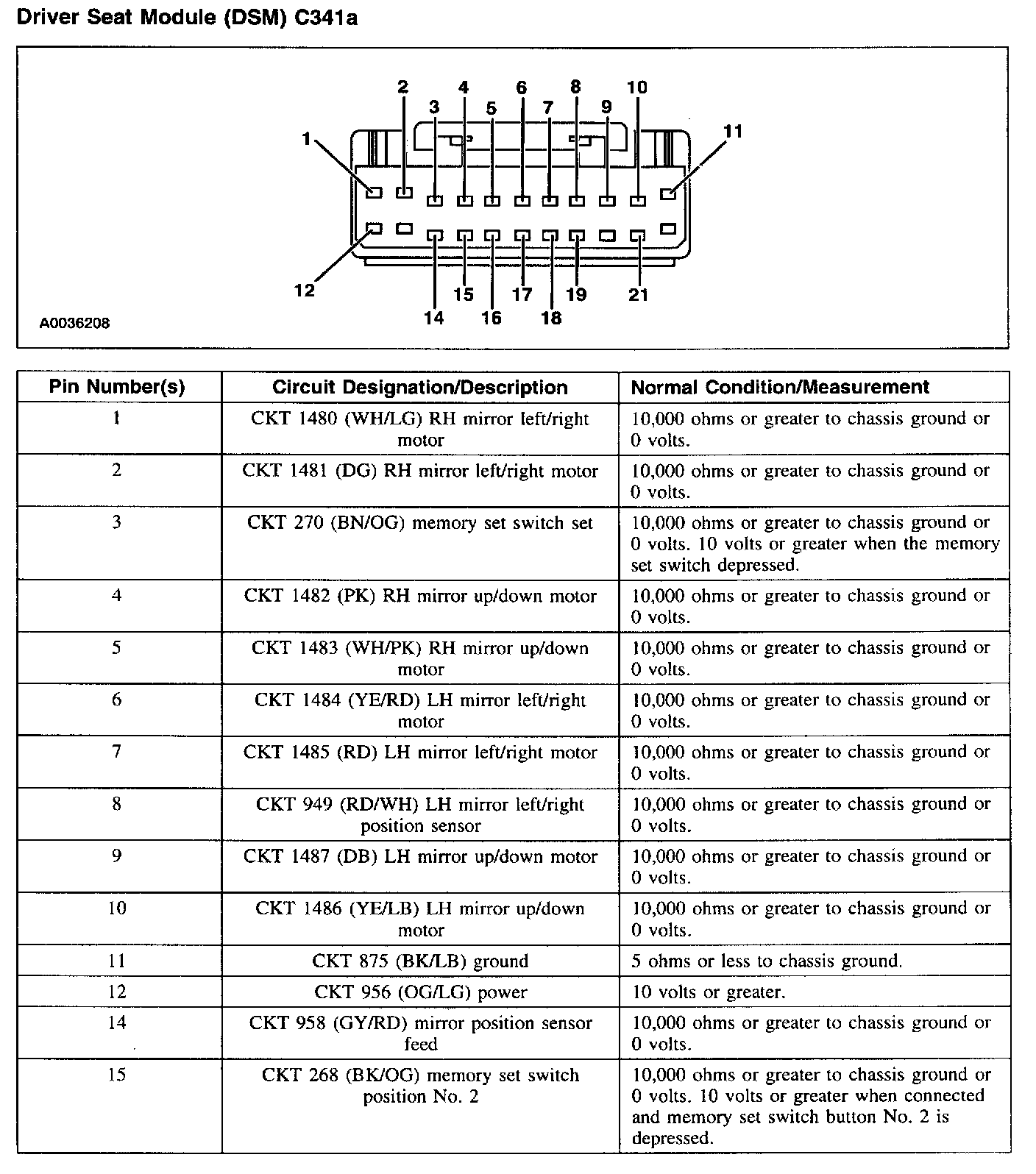

Driver Seat Module (DSM) C341a, Part 1:

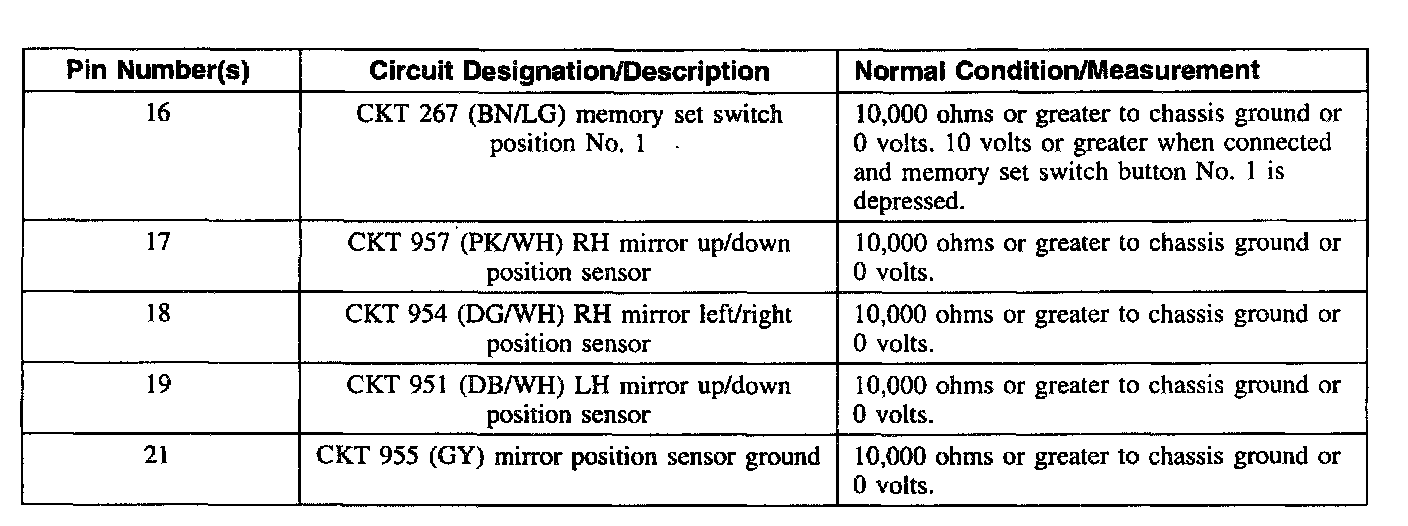

Driver Seat Module (DSM) C341a, Part 2:
