Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Central Security Module C274b

Central Security Module C274b

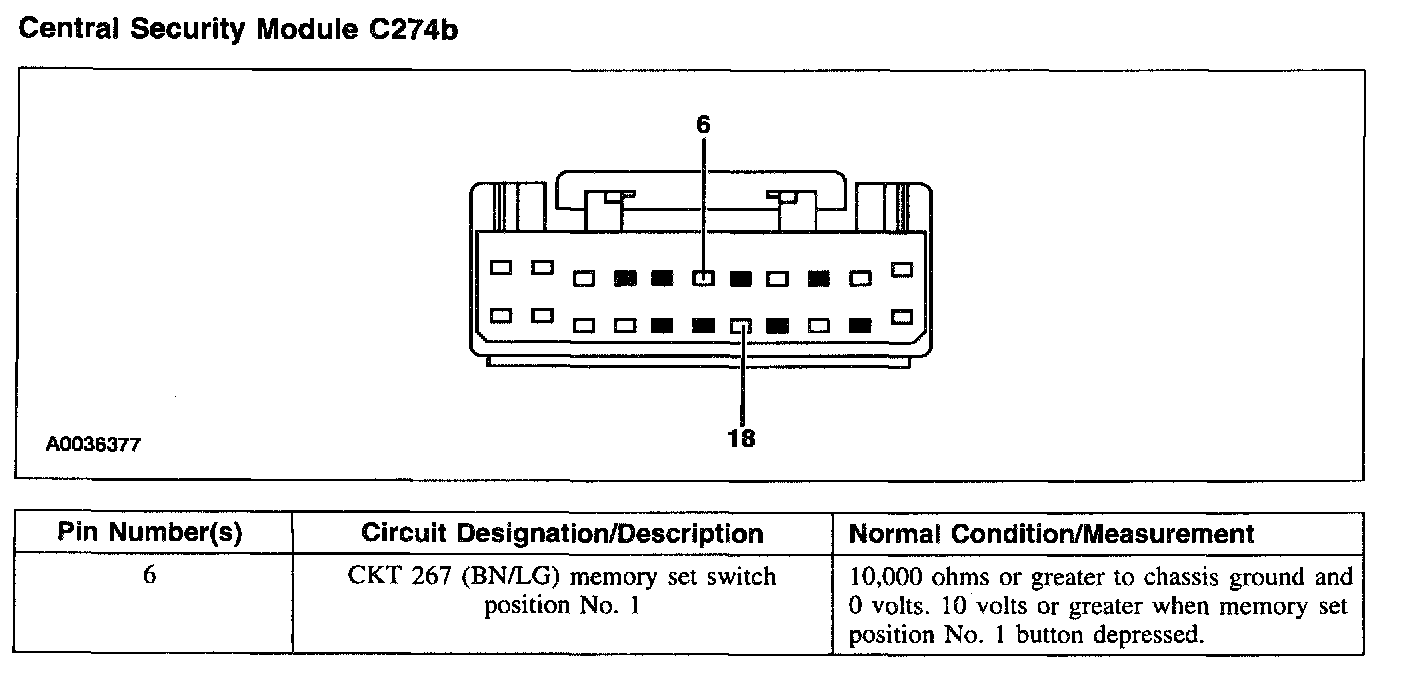

Central Security Module C274b, Part 1:

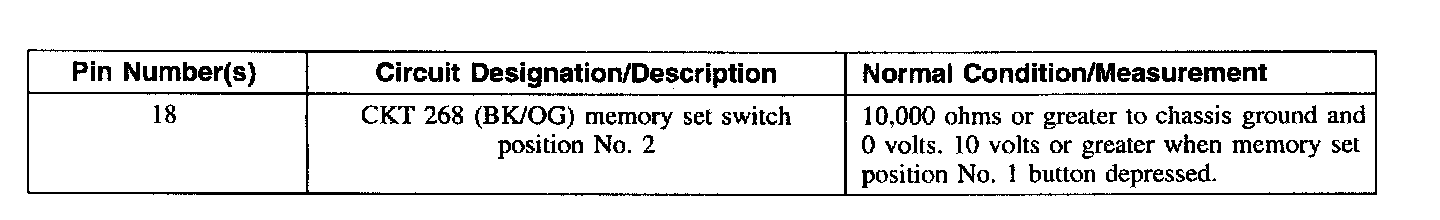

Central Security Module C274b, Part 2:
