Test G: Doors Do Not Lock/Unlock Using Keyless Entry Transmitter

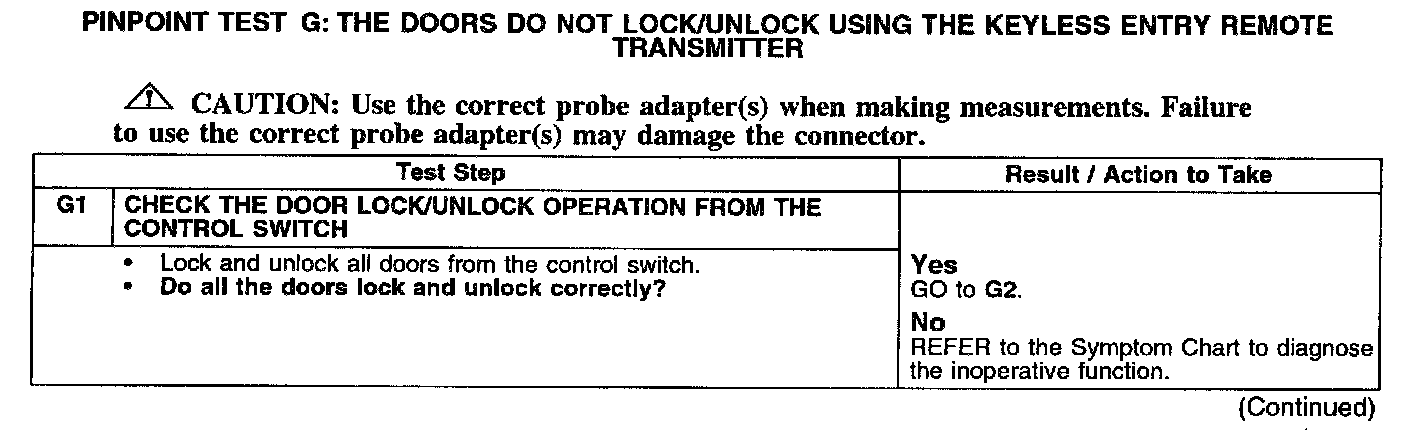

G1:

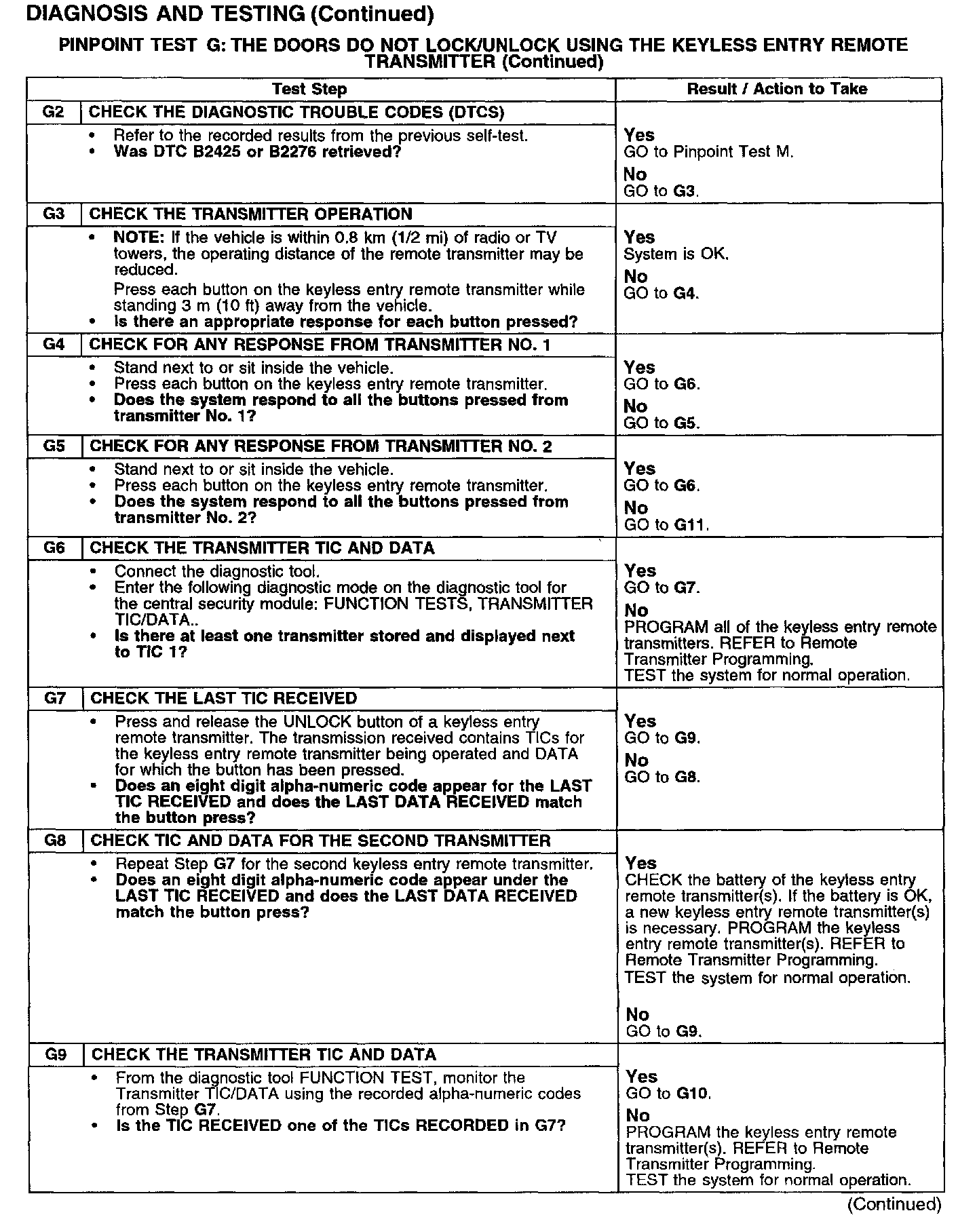

G2 - G9:

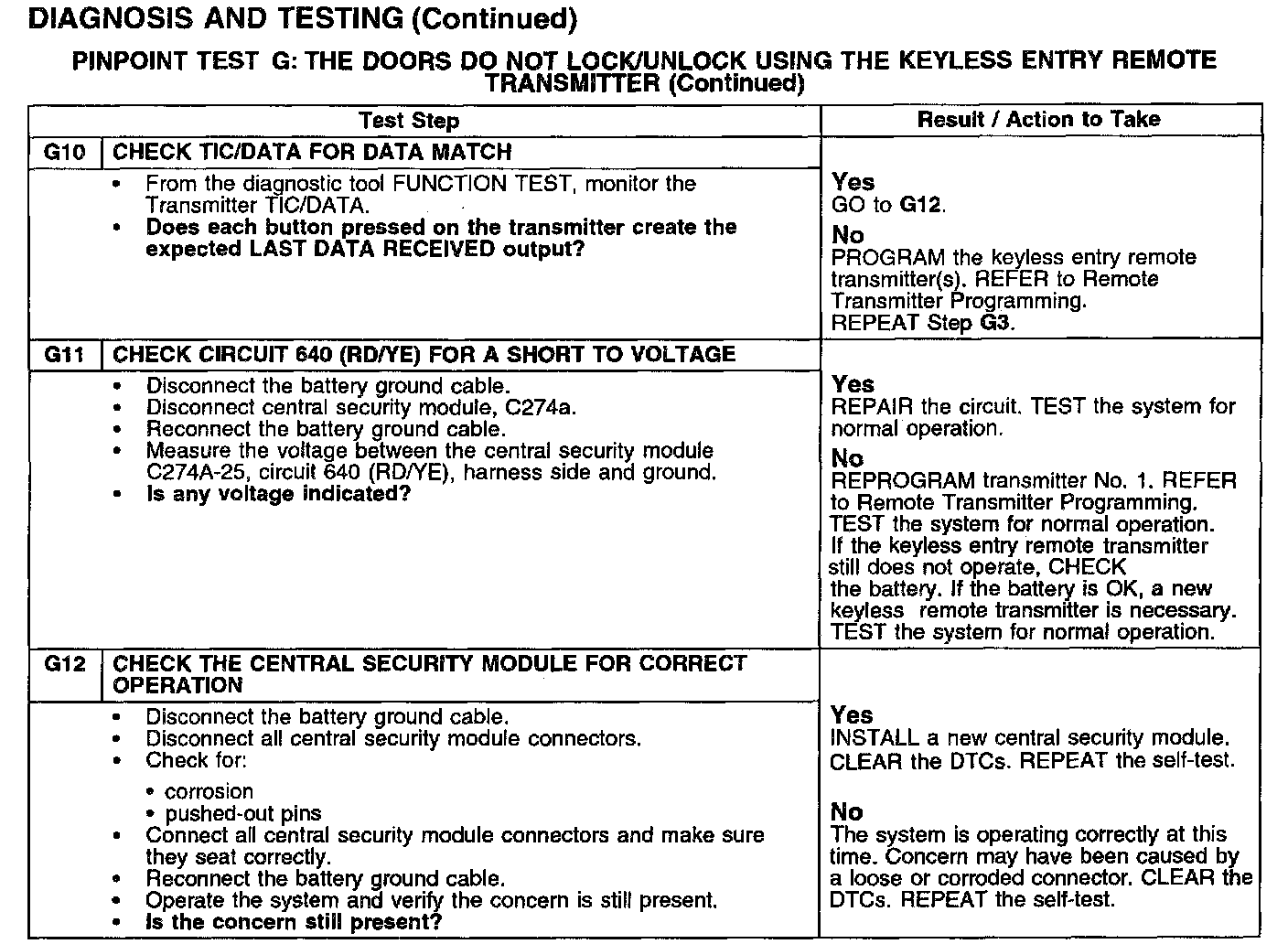

G10 - G12:

Normal Operation
The keyless entry remote transmitter sends a signal to the central security module to initiate lock functions.

Possible Causes
^ DTC B2425 will set when one of the transmitters is out of sync with the central security module. GO to Pinpoint Test M. Test M: Remote Keyless Entry Transmitter Out Of Synchronization
^ DTC B2276 will set if less than two transmitters are not programmed to the central security module. GO to Pinpoint Test M. Test M: Remote Keyless Entry Transmitter Out Of Synchronization
^ circuit 640 (RD/YE) shorted to voltage
^ central security module
^ keyless entry remote transmitter
