Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Tonneau Cover Module C4054d

Tonneau Cover Module C4054d

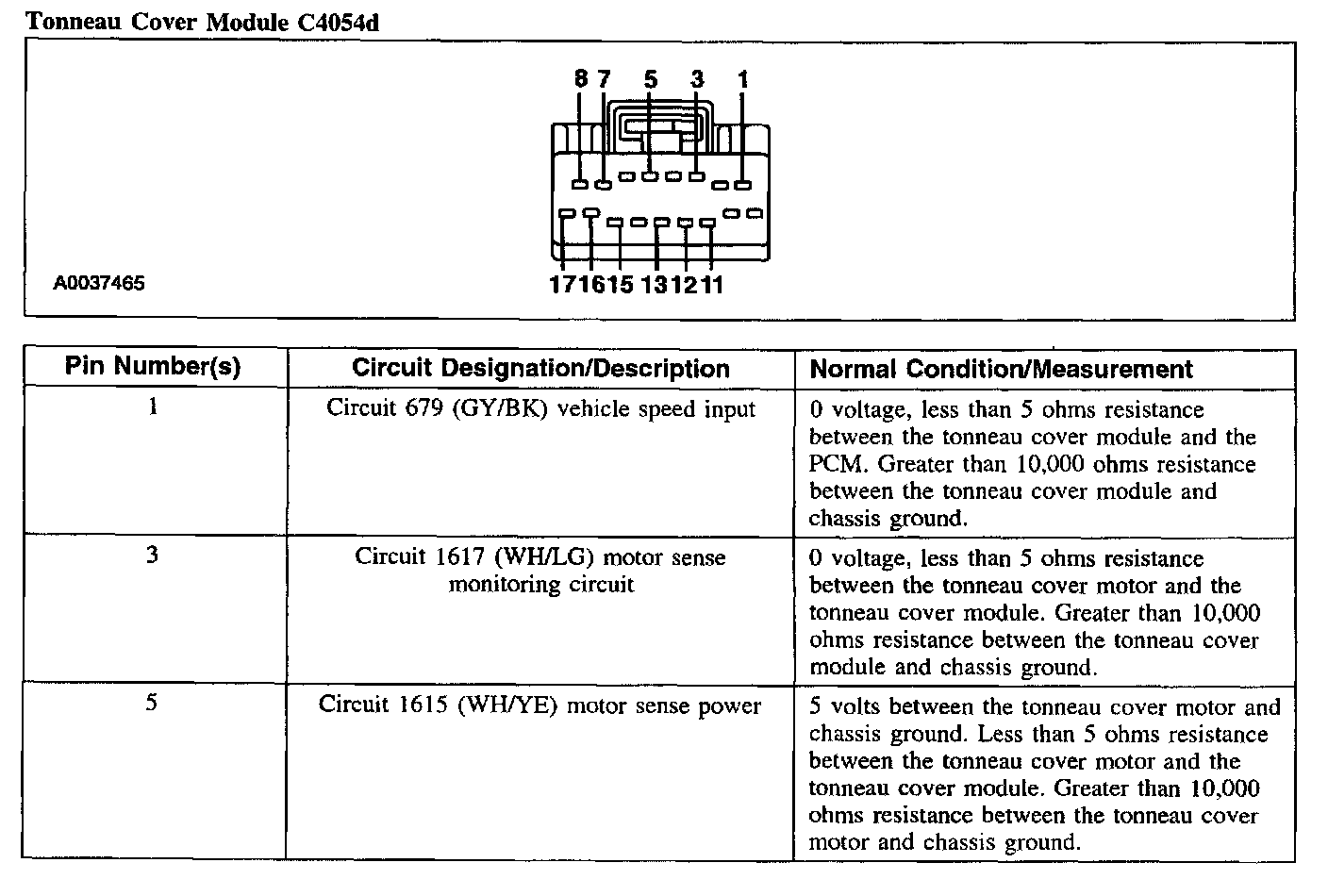

Tonneau Cover Module C4054d, Part 1:



Tonneau Cover Module C4054d, Part 2:
