Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Tonneau Cover Module C4054b

Tonneau Cover Module C4054b

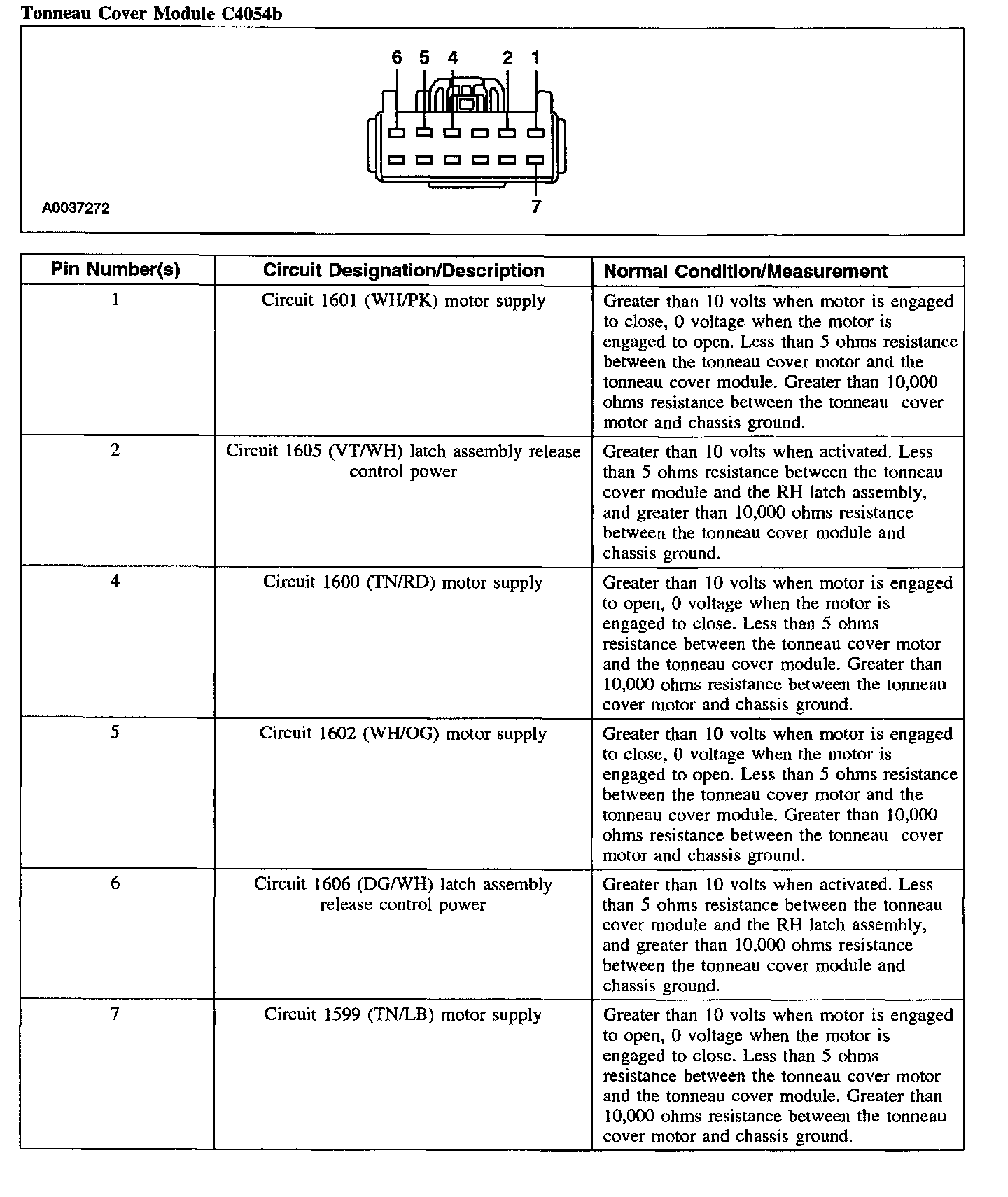

Tonneau Cover Module C4054b:
