Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Tonneau Cover Lock-Out Switch C3029

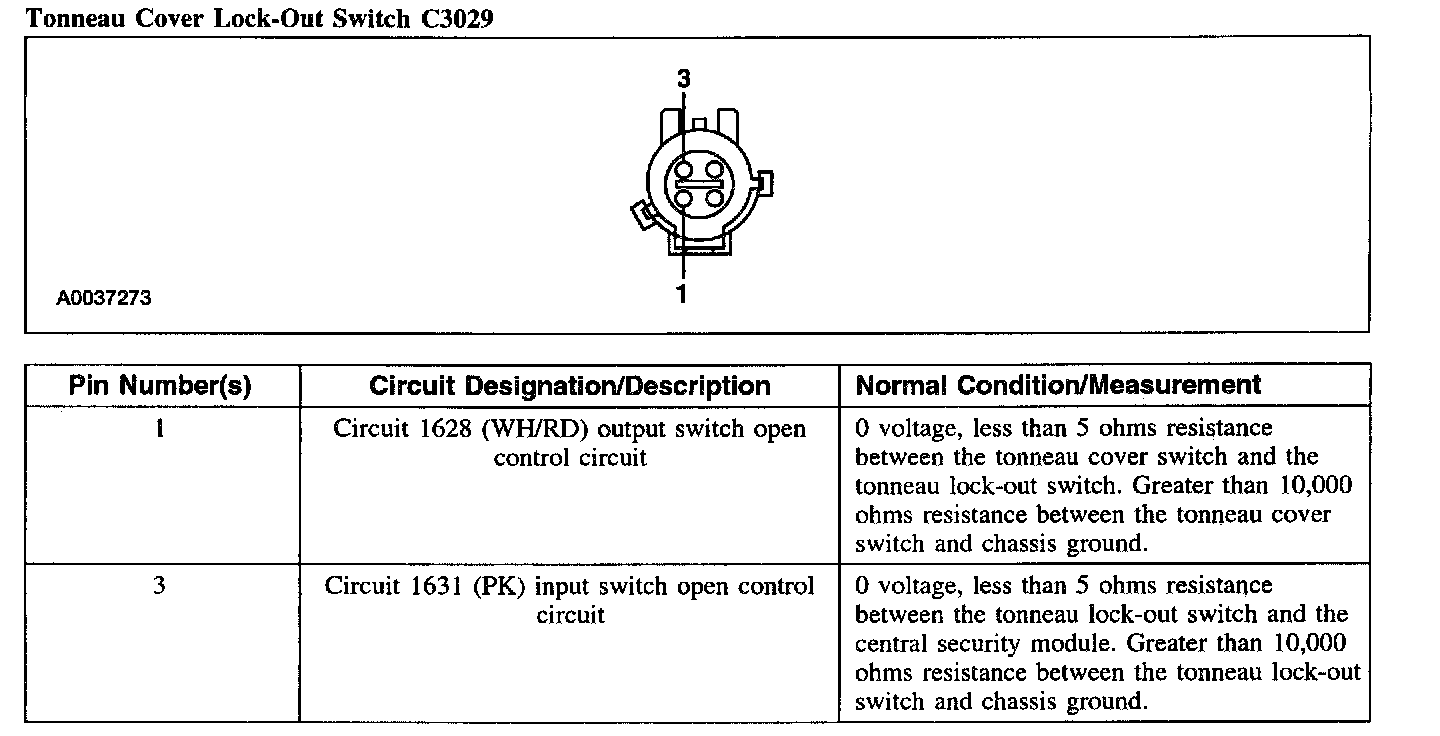

Tonneau Cover Lock-Out Switch C3029

Tonneau Cover Lock-Out Switch C3029:
