Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Navigation System Module C229a

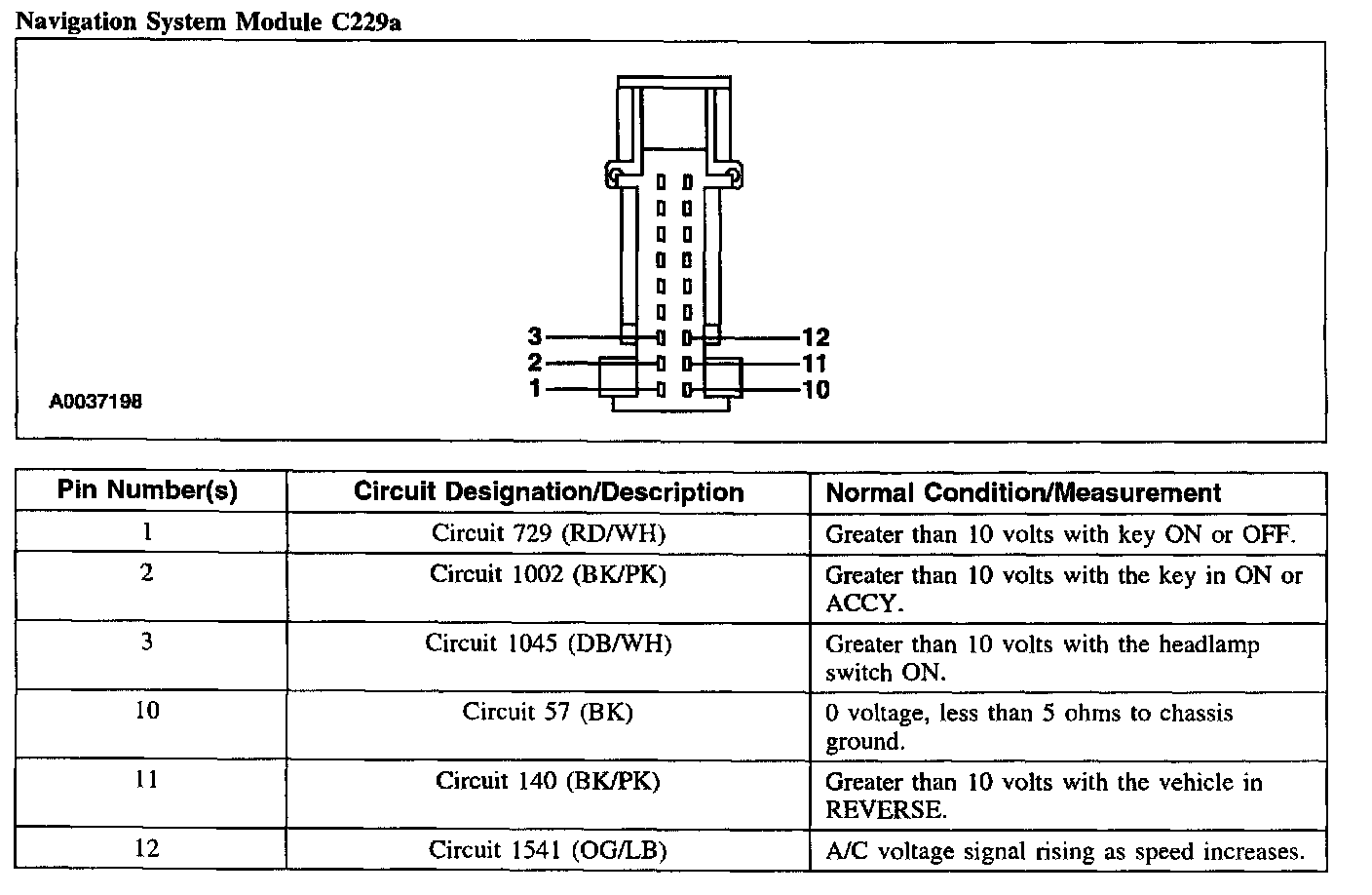

Navigation System Module C229a

Navigation System Module C229a:
