Home >> Lincoln Truck >> 2002 >> Blackwood V8-5.4L DOHC VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Navigation System Display Module C3030a

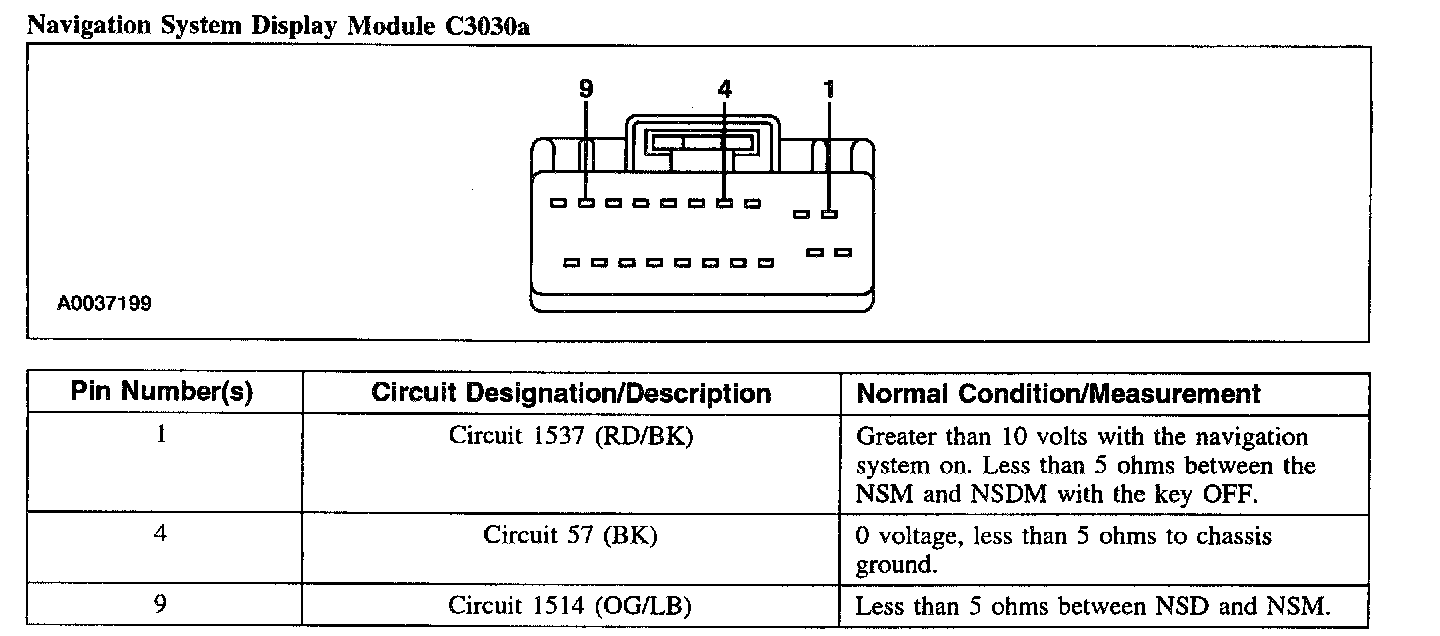

Navigation System Display Module C3030a

Navigation System Display Module C3030a:
