Test J: Faulty SCP Communication Network - Incorrect PCM Calibration

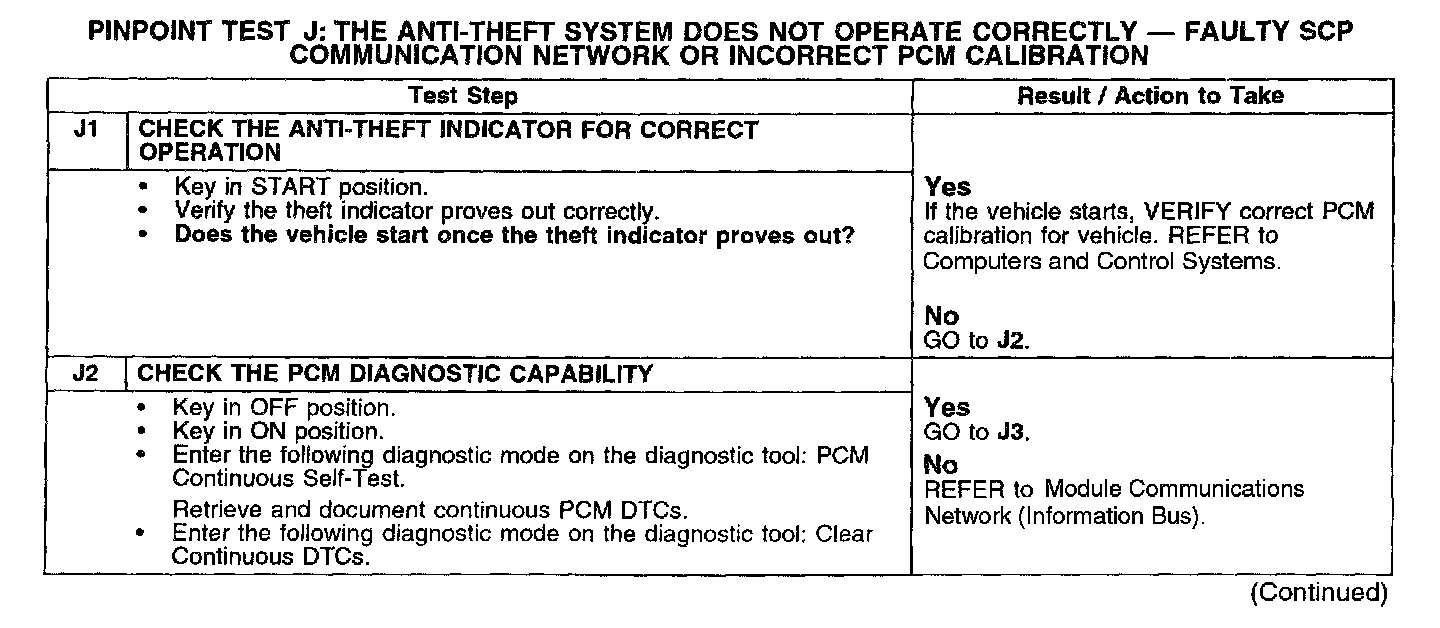

J1 - J2:

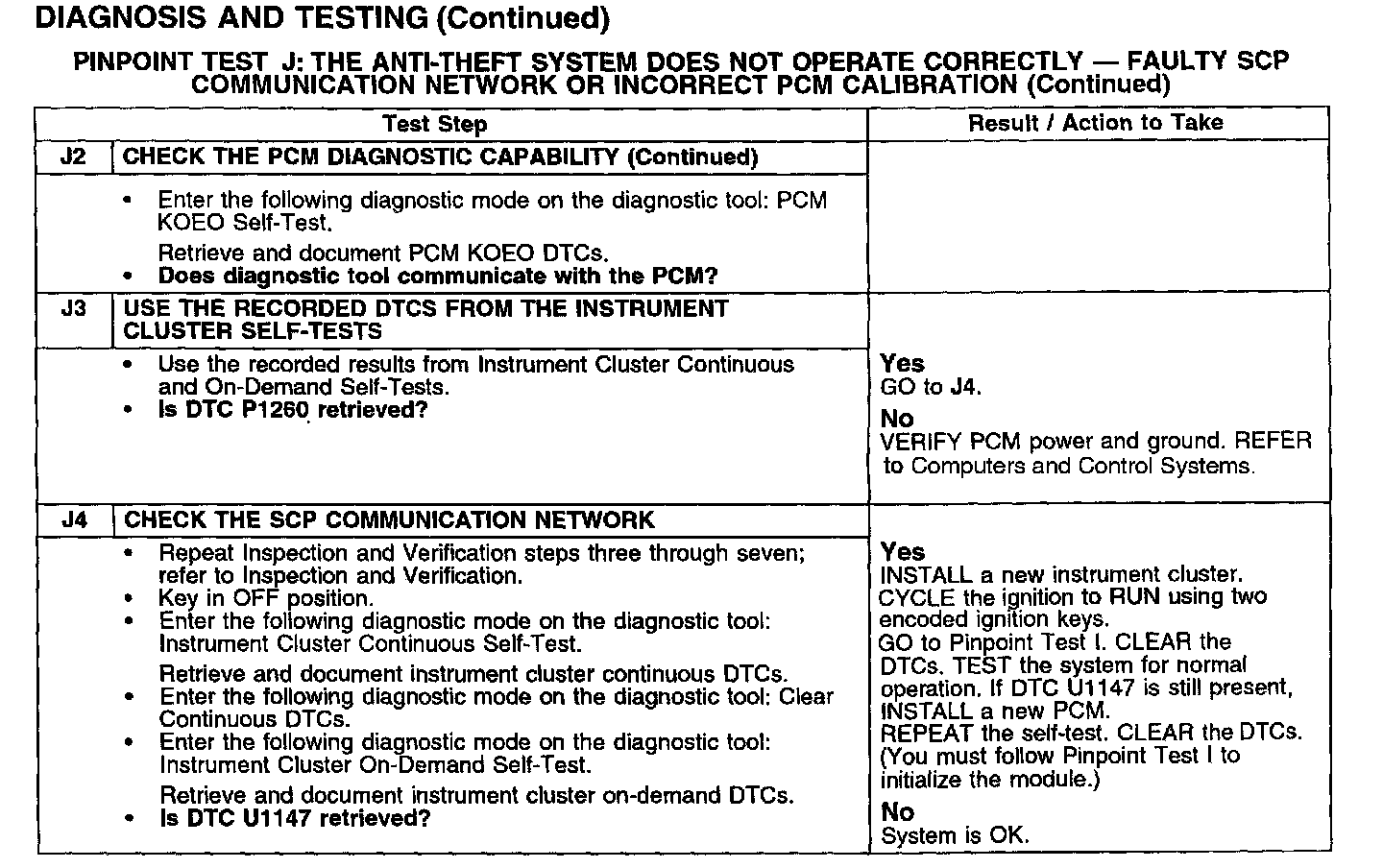

J2 - J4:

Normal Operation
During each vehicle start sequence, the transceiver module reads the encoded ignition key identification code and circuit 1216 sends the data to the instrument cluster.

Possible Causes
^ PATS transceiver
^ circuitry
^ instrument cluster
^ electronic-encoded ignition key


J: Faulty SCP Communication Network or Incorrect PCM Calibration
