Test G: PATS Transceiver Signal Is Not Received

G1 - G2:

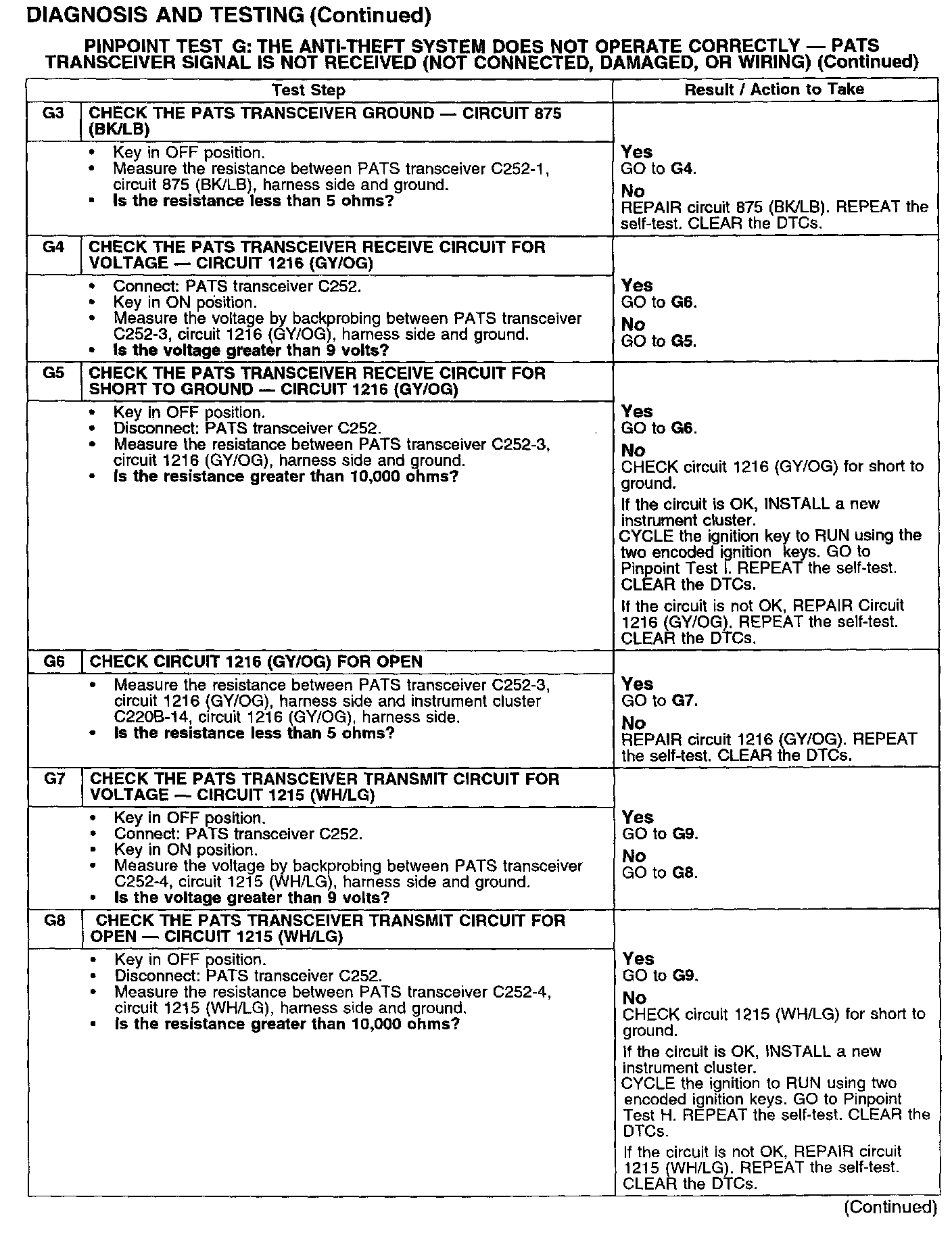

G3 - G8:

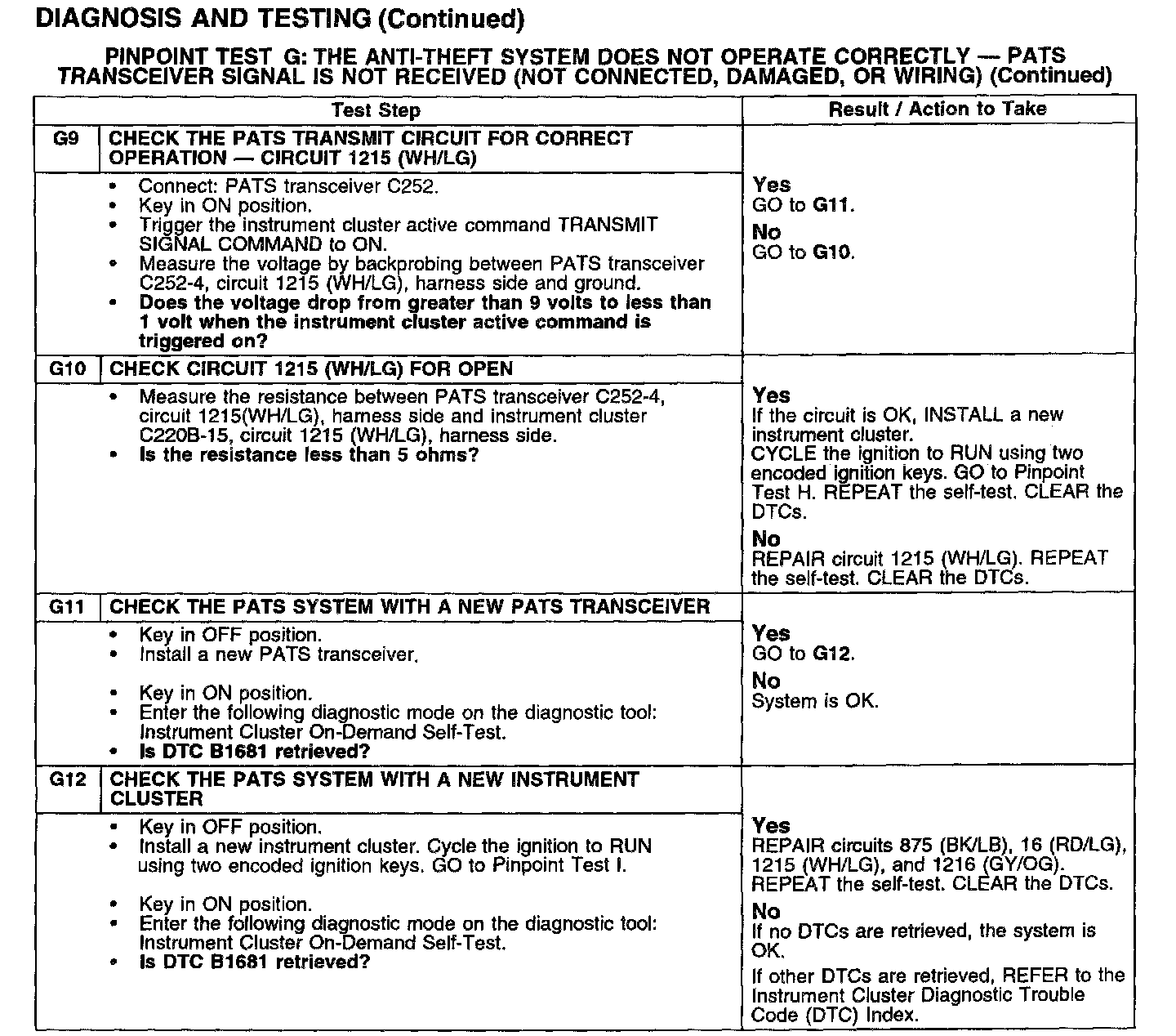

G9 - G12:

Normal Operation
During each vehicle start sequence, the transceiver module reads the encoded ignition key identification code and circuit 1216 sends the data to the instrument cluster.

Possible Causes
^ PATS transceiver
^ circuitry
^ instrument cluster
^ electronic encoded ignition key
