Test F: PATS Received Incorrect Key Code From IG. Key Transponder

F1:

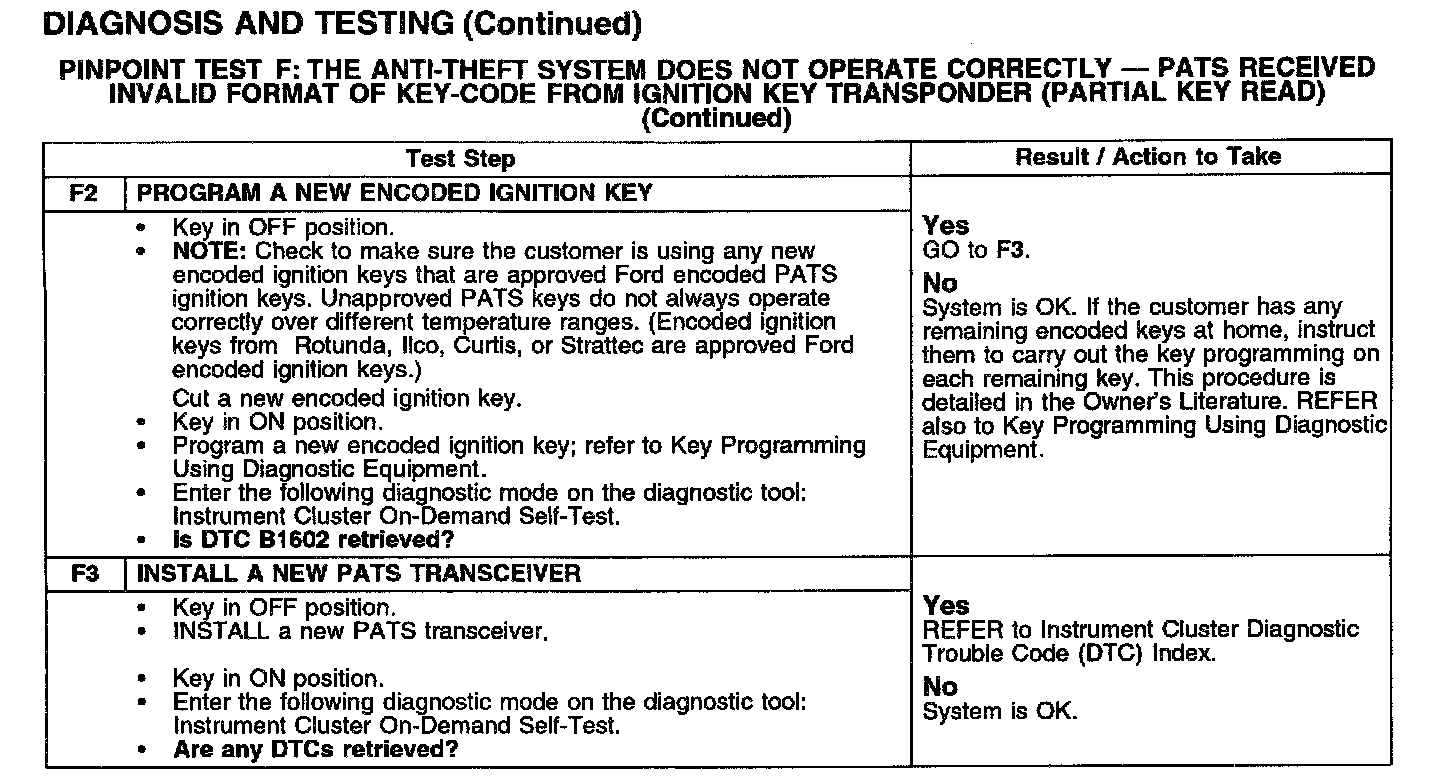

F2 - F3:

Normal Operation
During each vehicle start sequence, the transceiver module reads the encoded ignition key identification code and circuit 1216 sends the data to the instrument cluster.

Possible Causes
^ PATS transceiver
^ circuitry
^ instrument cluster
^ electronic encoded ignition key
