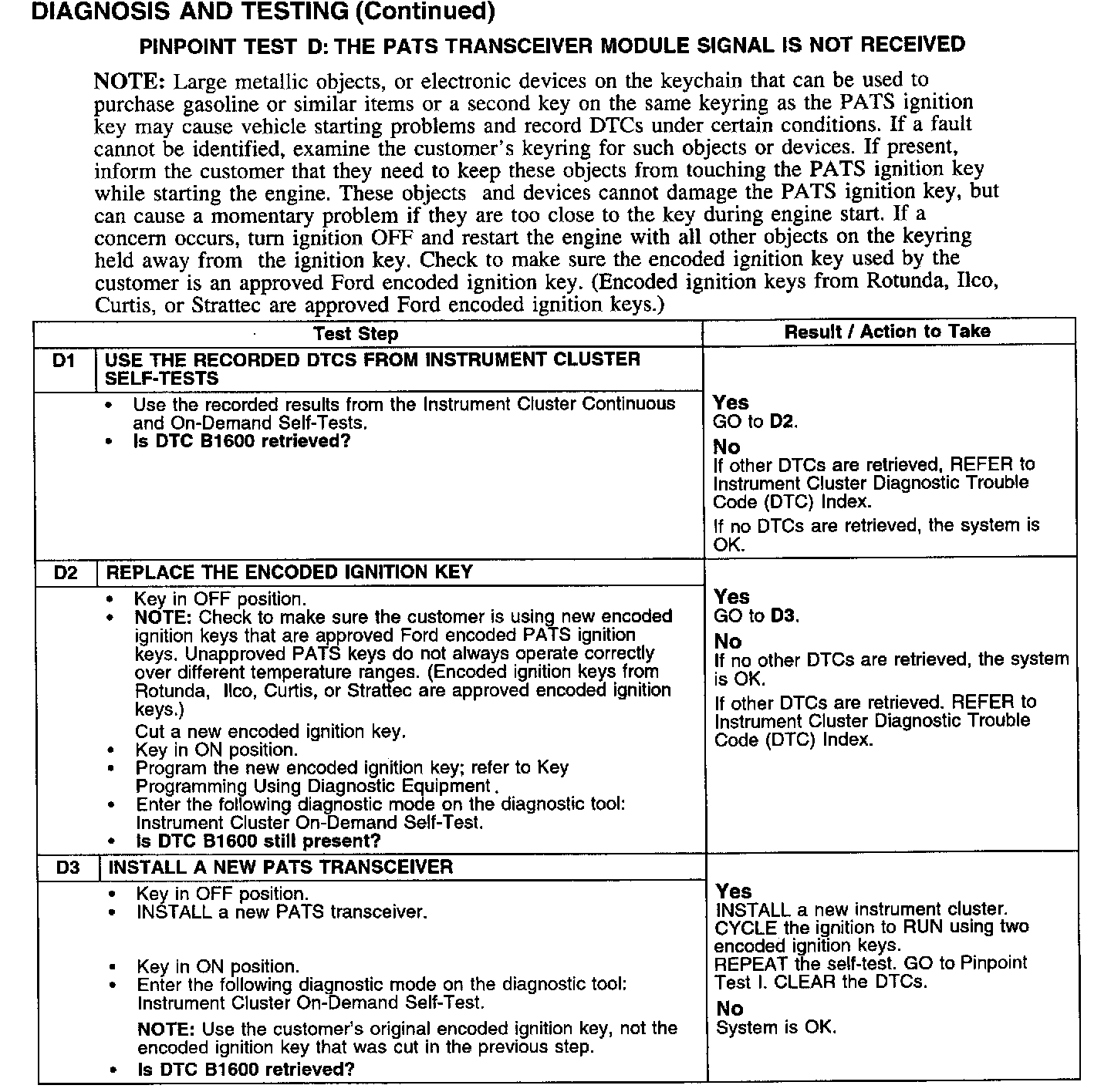

Test D: PATS Transceiver Module Signal Is Not Received

D: PATS Transceiver Module Signal Is Not Received

D1 - D3:

Normal Operation
During each vehicle start sequence, the transceiver module reads the encoded ignition key identification code and sends the data to the instrument cluster.

Possible Causes
^ PATS transceiver
^ circuitry
^ instrument cluster
^ electronic-encoded ignition key
