Alignment

Wheel Alignment

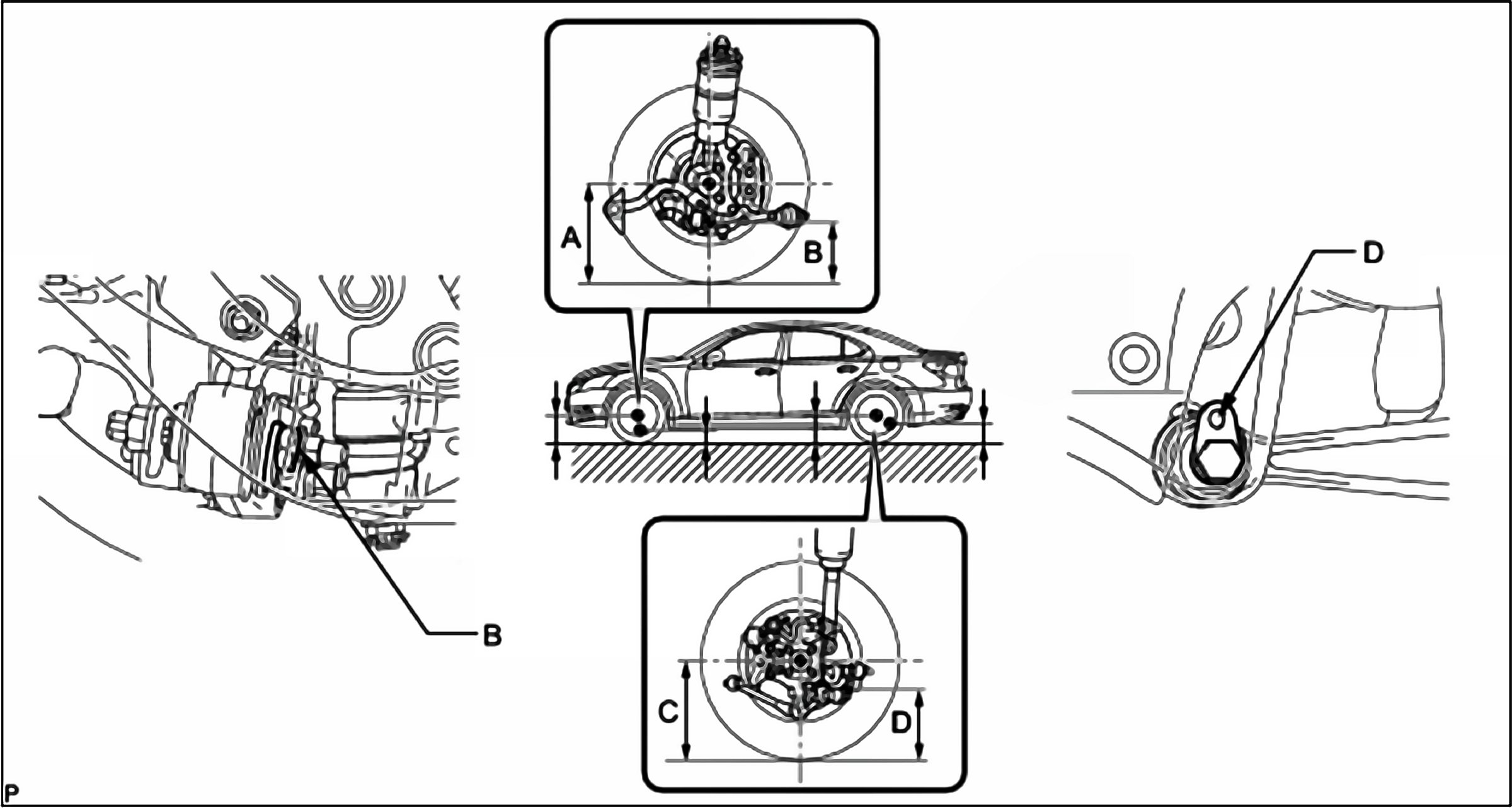

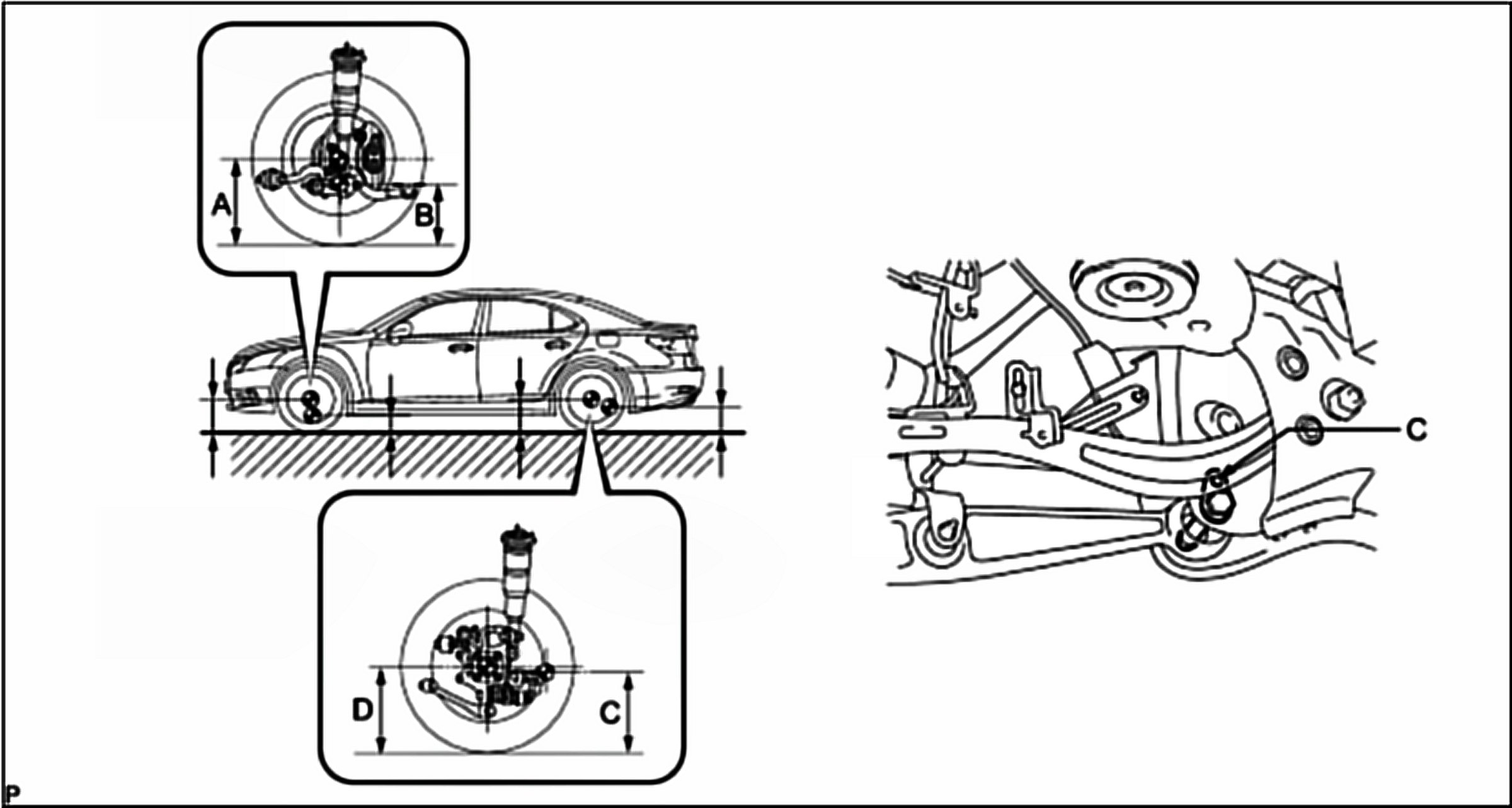

Measuring Points:

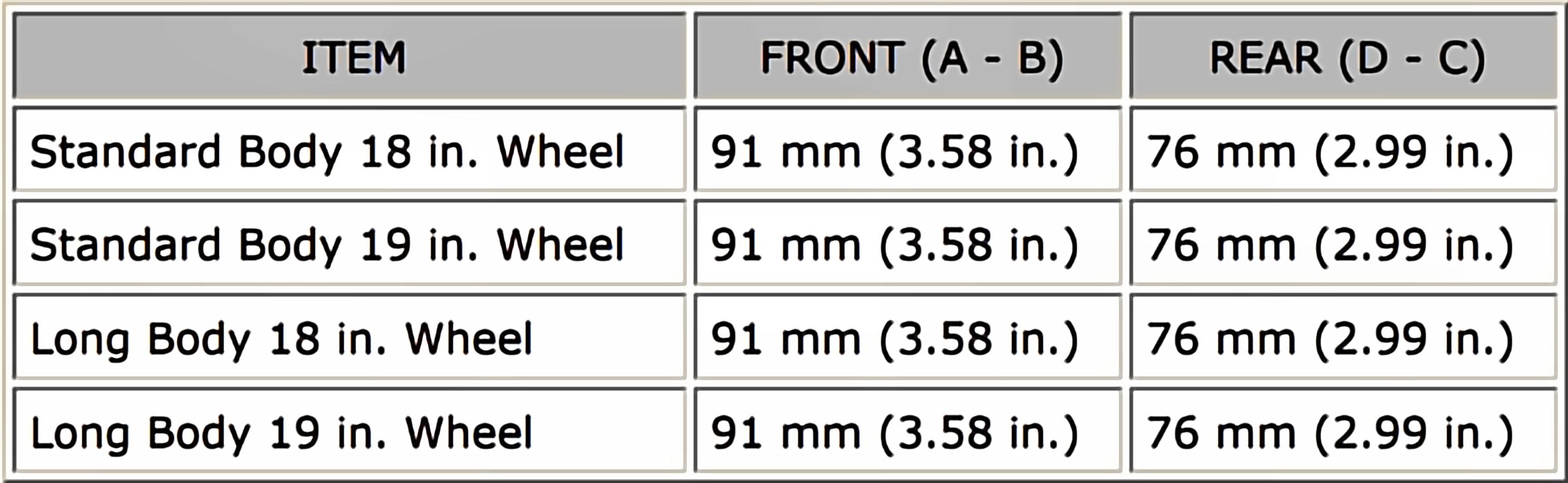

W/o Air Suspension - 2WD:

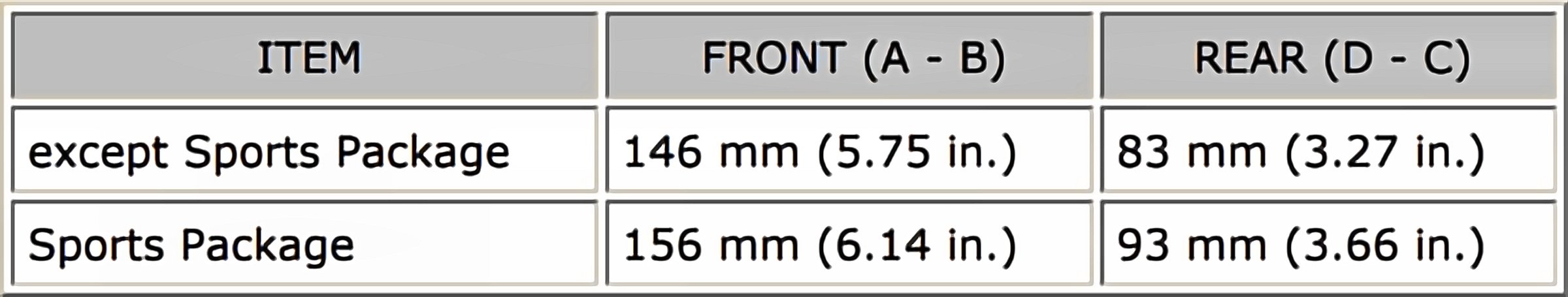

W/Air Suspension - 2WD:

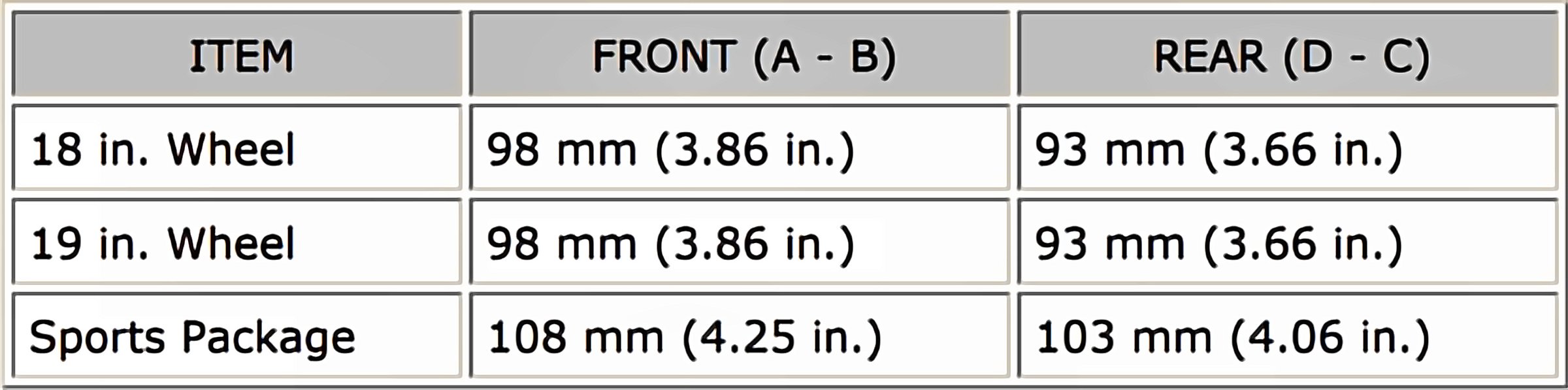

W/o Air Suspension - AWD:

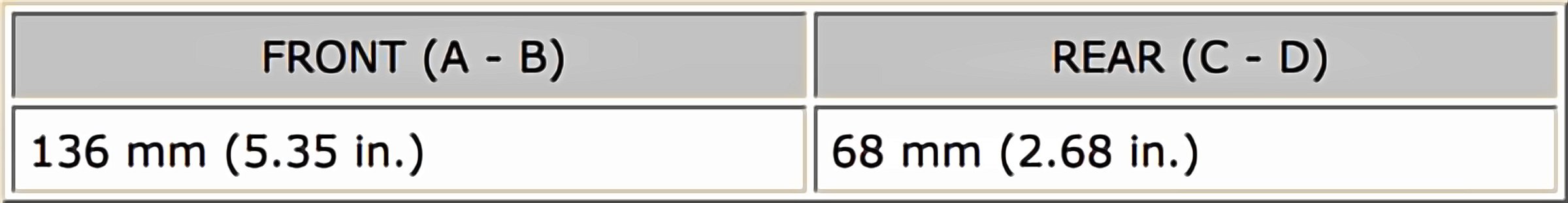

W/Air Suspension - AWD:

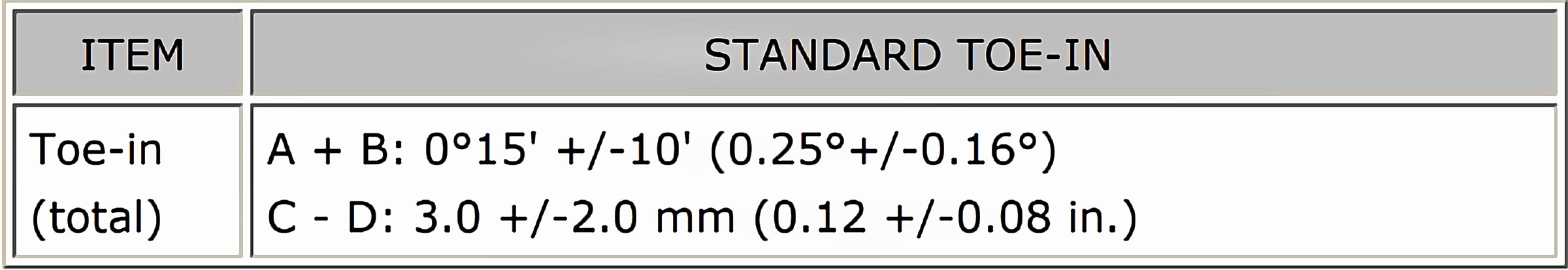

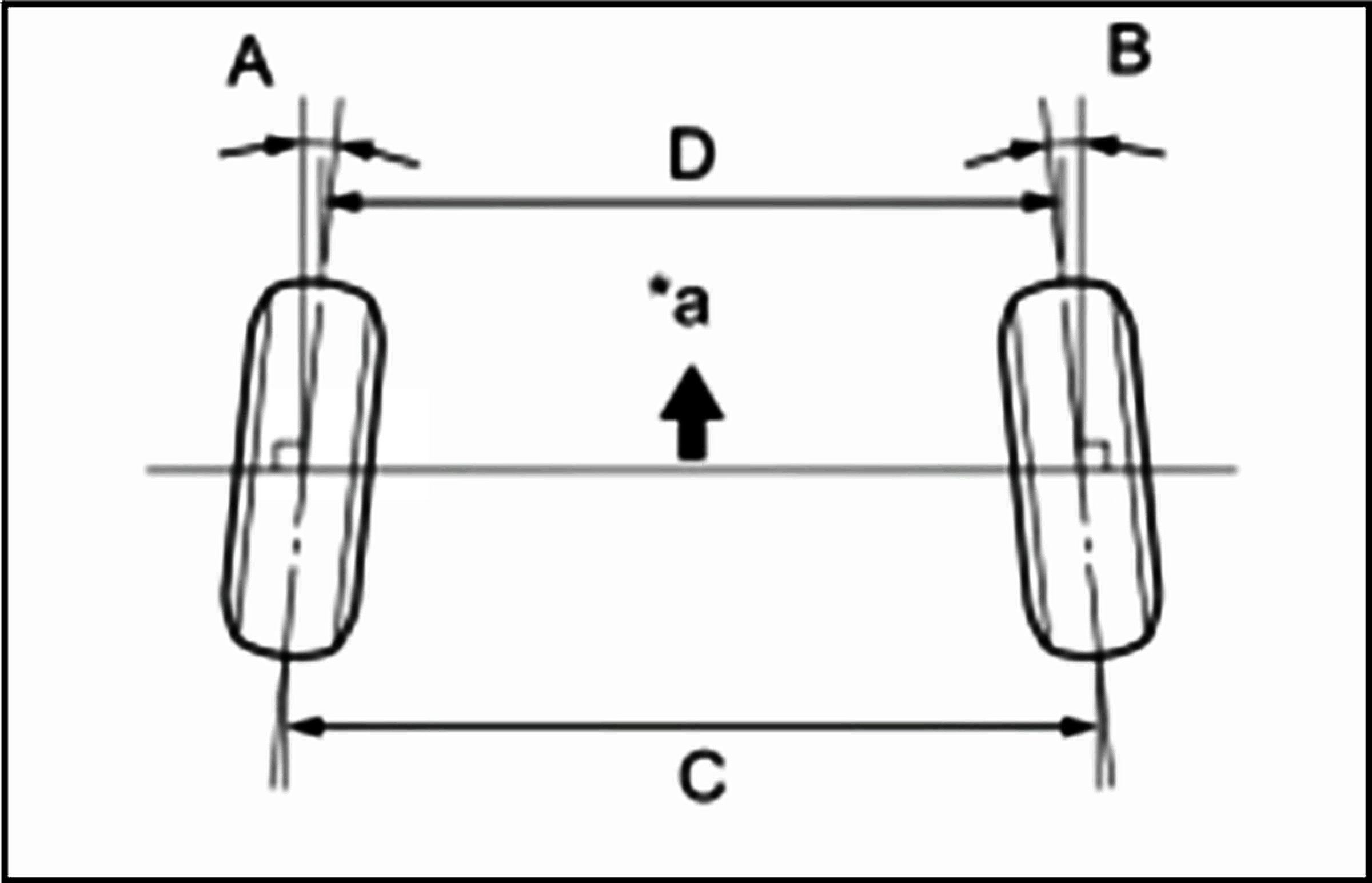

Toe-in:

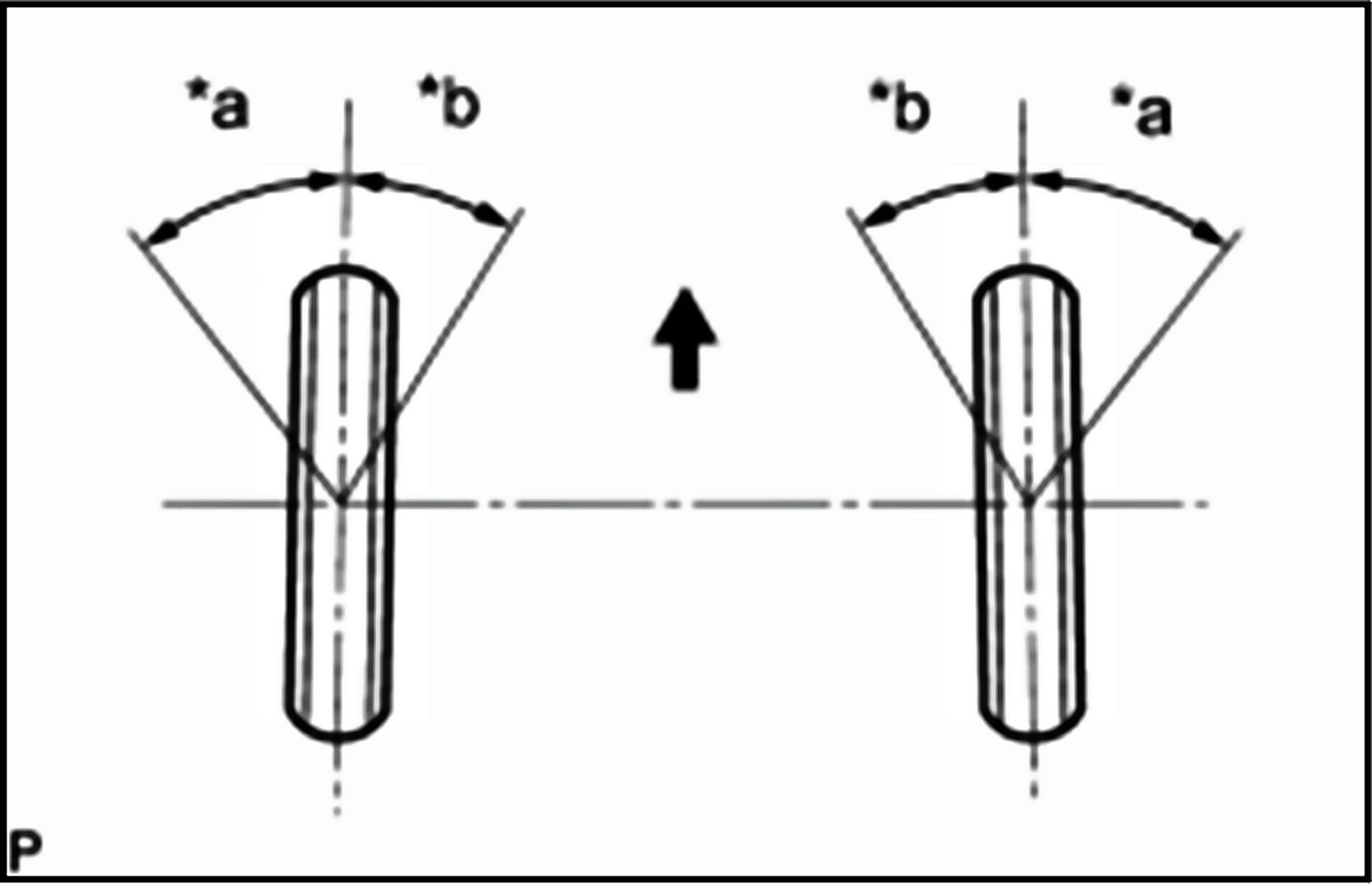

Wheel Angle:

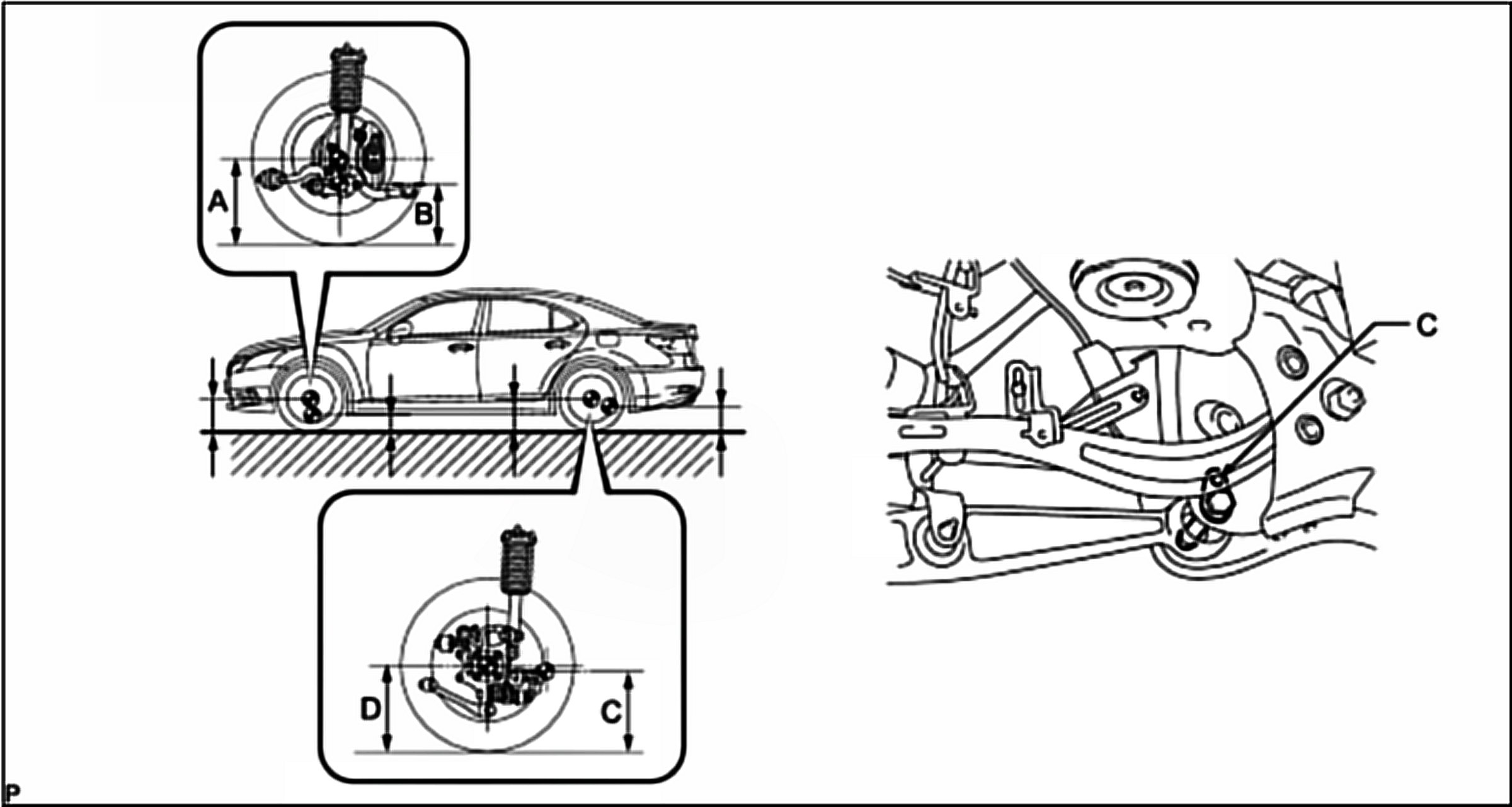

2WD

A
Ground clearance of front wheel center

B
Ground clearance of front center position of front No. 2 suspension lower arm assembly front bush installation

C
Ground clearance of pit center of the attachment rear suspension arm

D
Ground clearance of rear wheel center

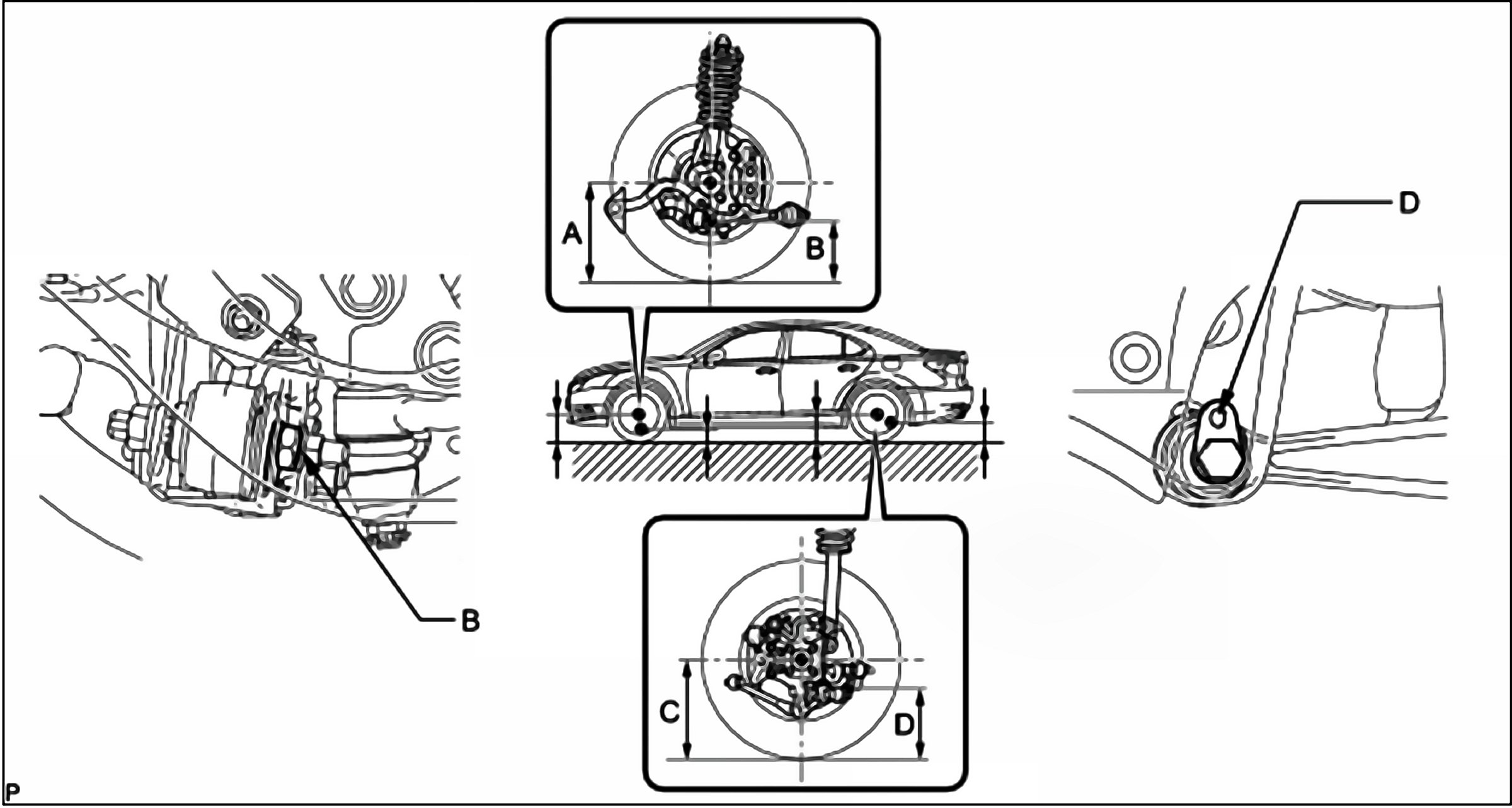

AWD

A
Ground clearance of front wheel center

B
Ground clearance of head center of bolt used to install the front No. 1 suspension lower arm to the front suspension member

C
Ground clearance of rear wheel center

D
Ground clearance of pit center of the attachment rear suspension arm


NOTICE:
- Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.
- If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.


Wheel Alignment Specifications (Unloaded)

Standard Vehicle Height For 2WD w/o Air Susp.:

Standard Vehicle Height For 2WD w/Air Susp.:

Standard Vehicle Height For AWD w/o Air Susp.:

Standard Vehicle Height For AWD w/Air Susp.:

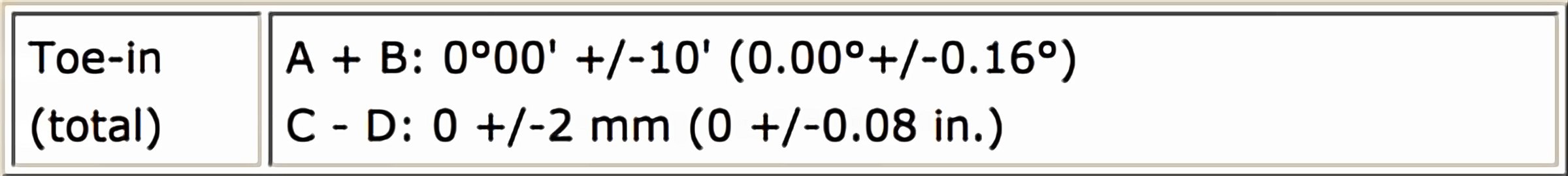

Toe-in:

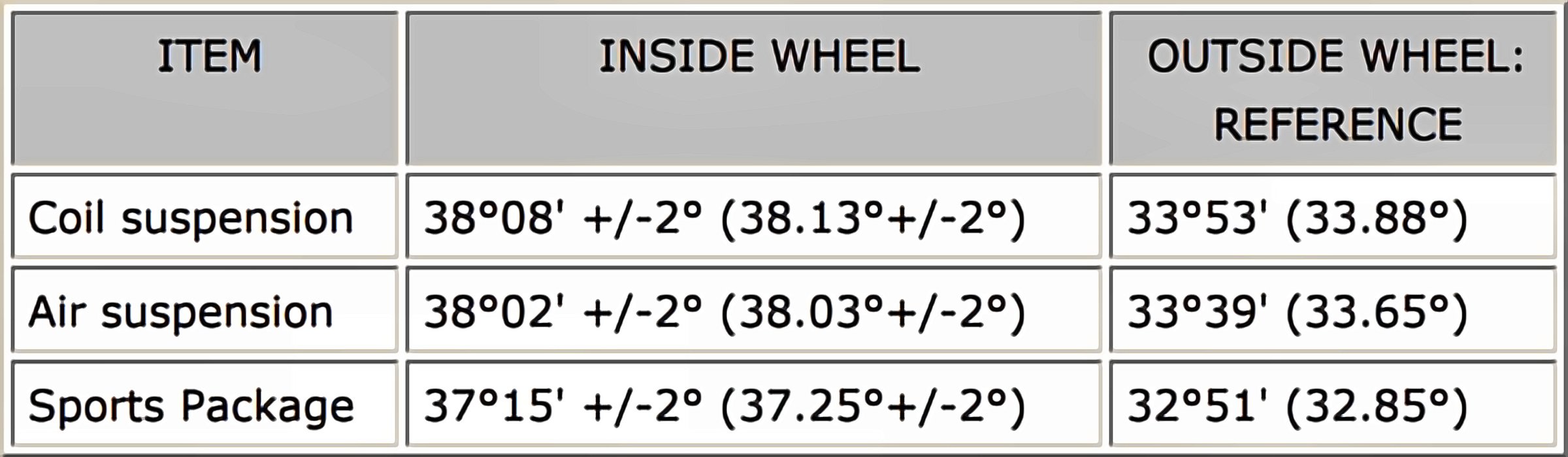

Standard Wheel Turning Angle For 2WD:

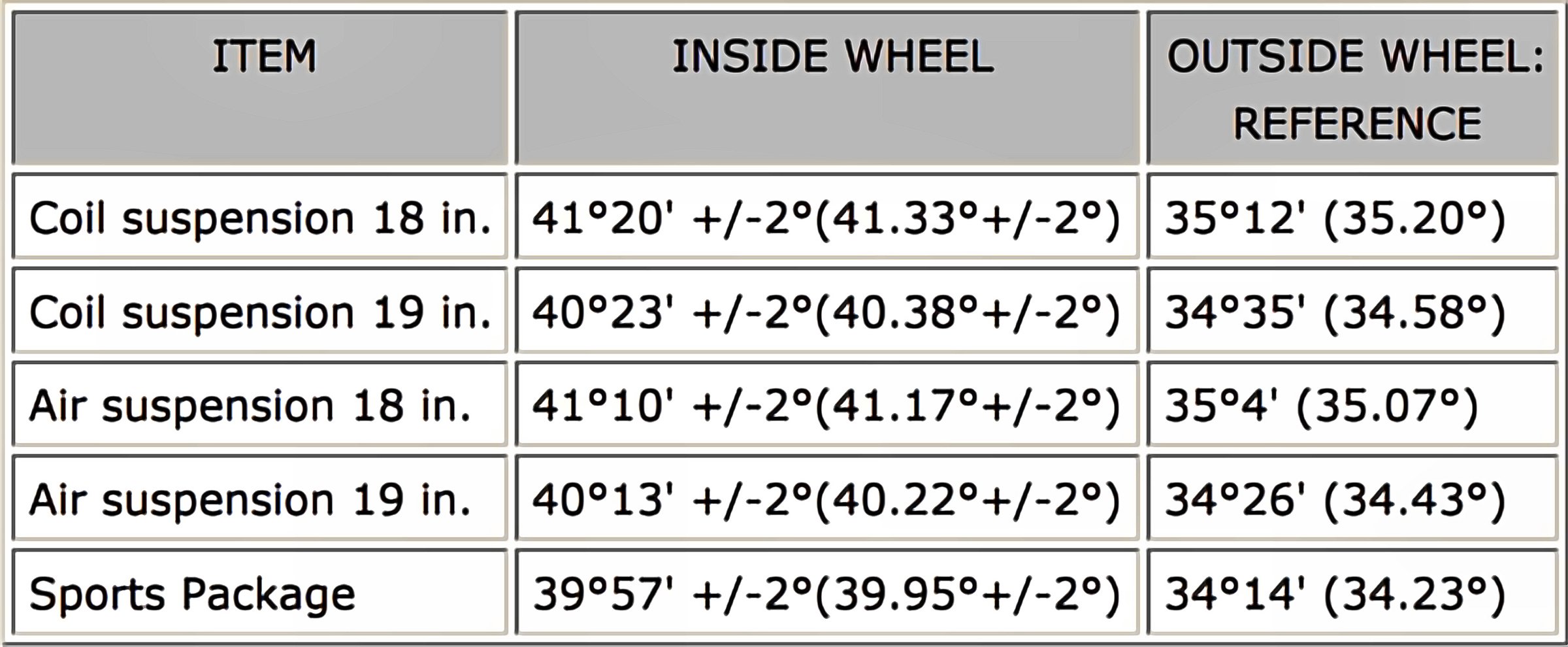

Standard Wheel Turning Angle For AWD:

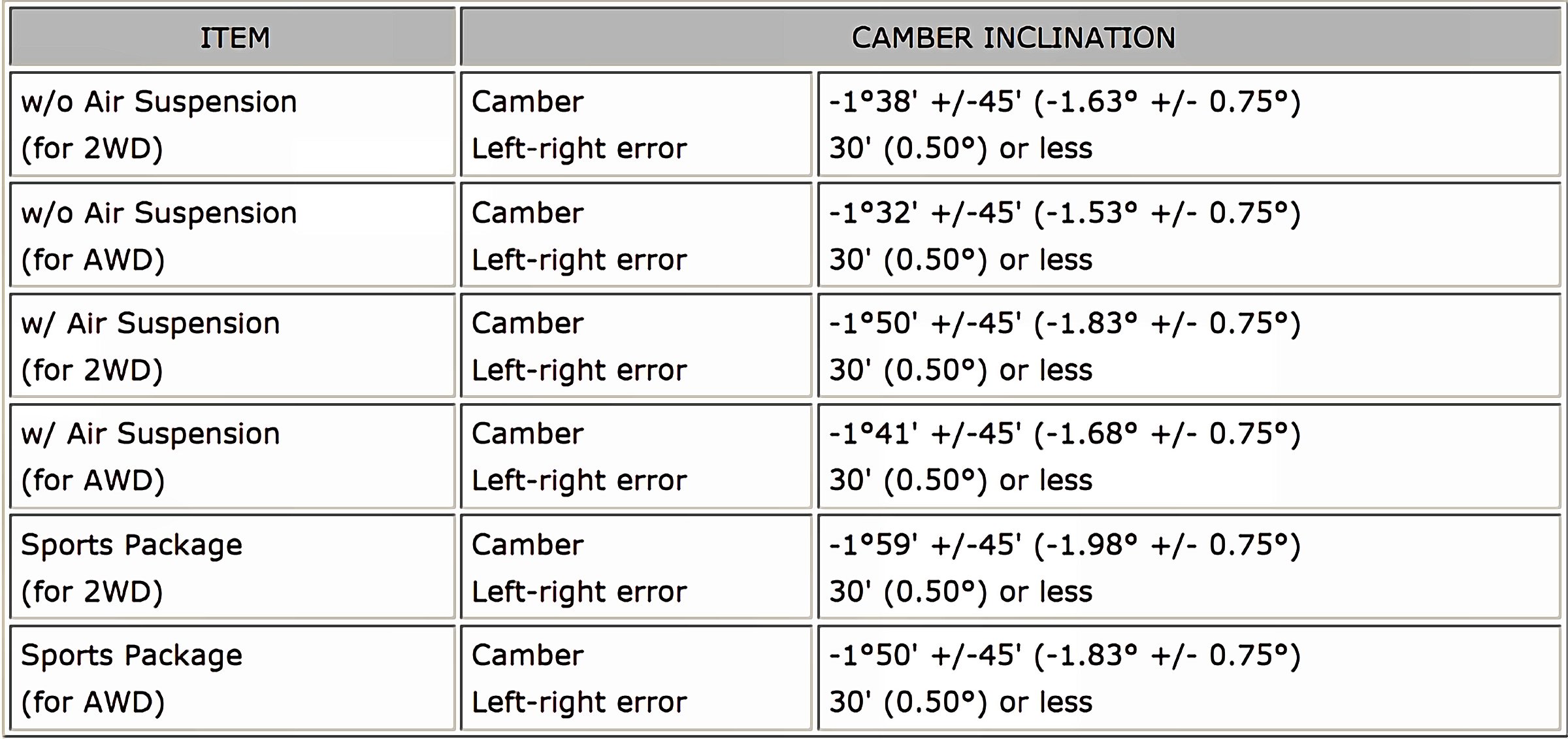

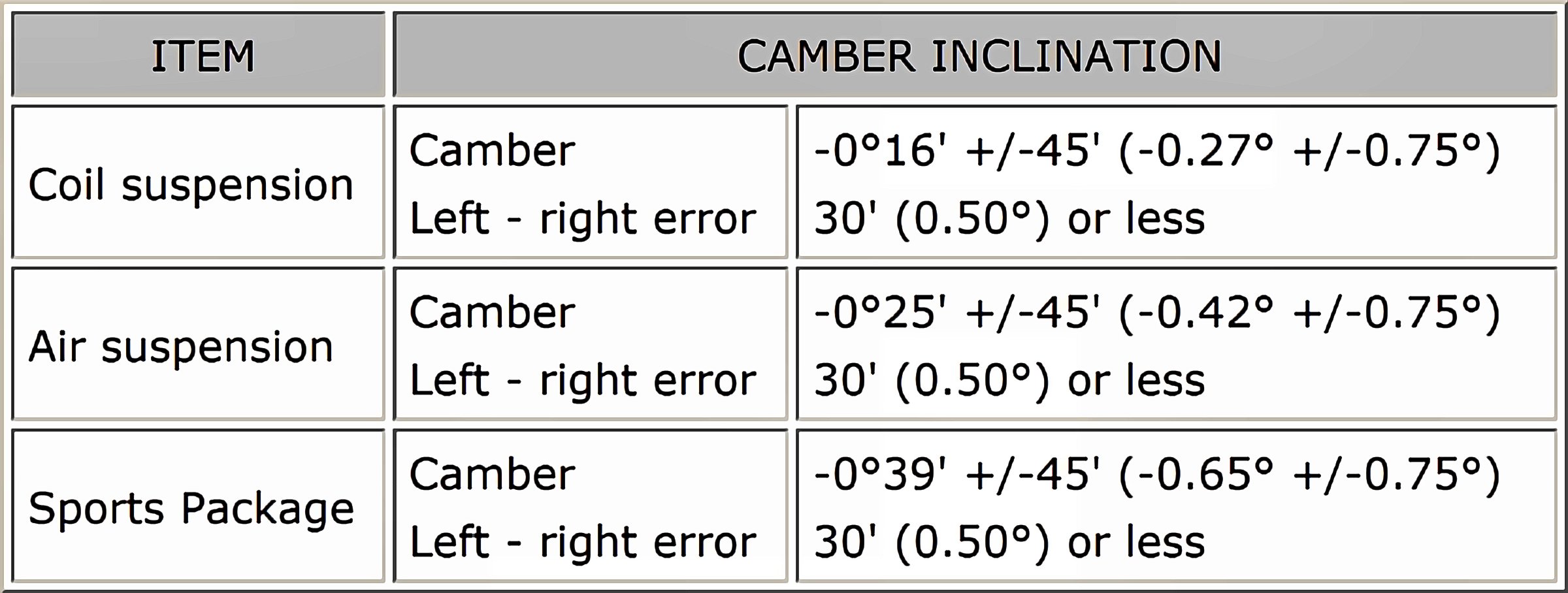

Standard Camber Inclination For 2WD:

Standard Camber Inclination For AWD:

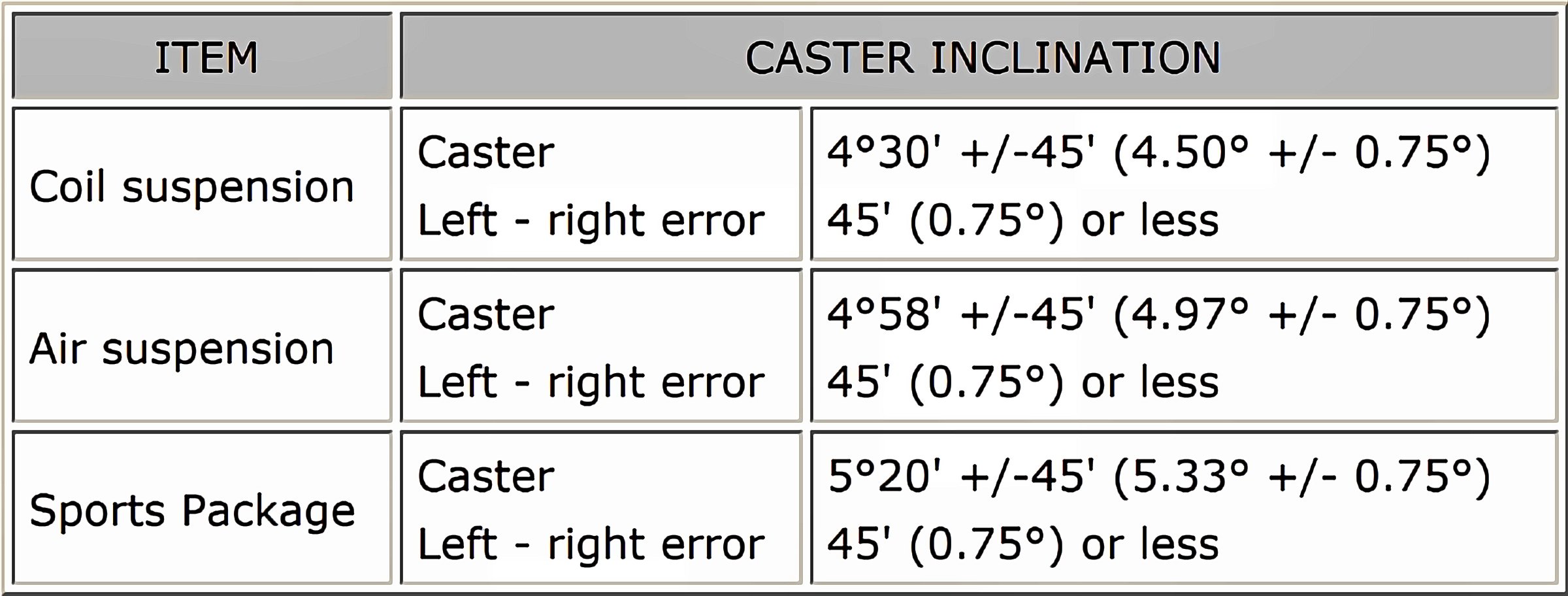

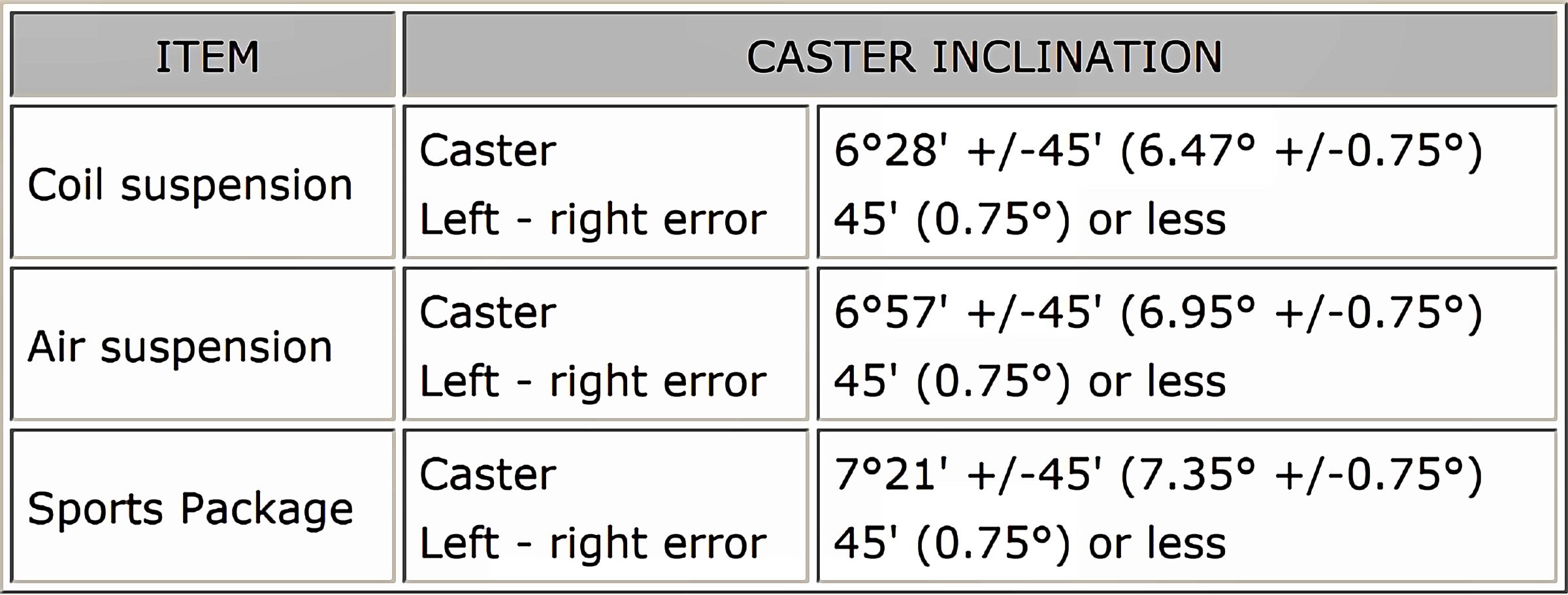

Standard Caster Inclination For 2WD:

Standard Caster Inclination For AWD:

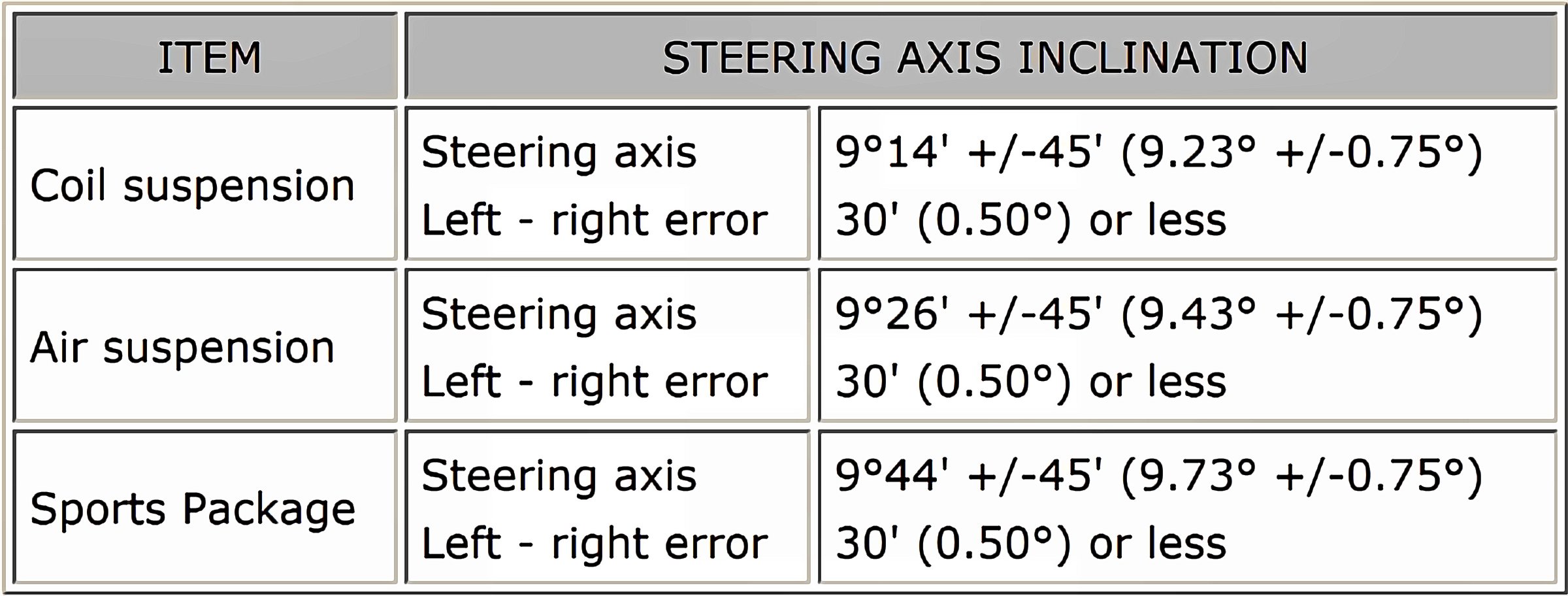

Standard Steering Axis Inclination For 2WD:

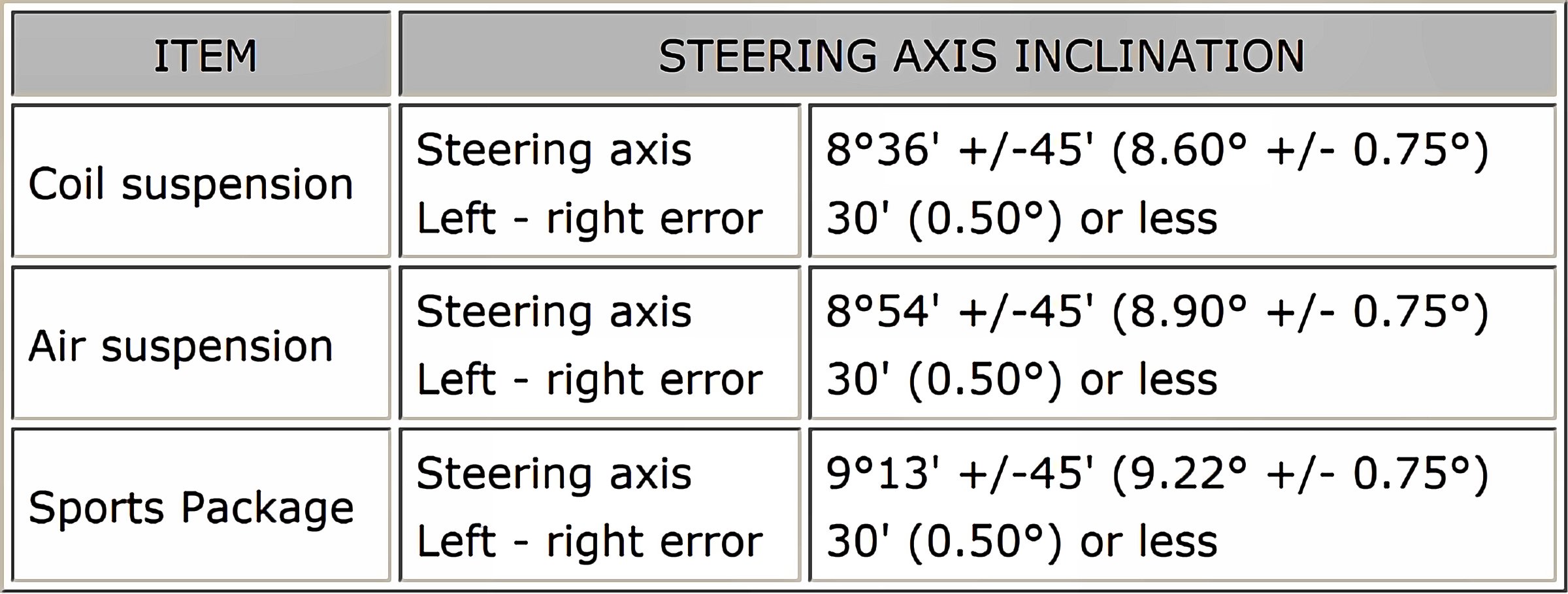

Standard Steering Axis Inclination For AWD:

Standard Rear Toe-in:

Standard Rear Camber Inclination:
