PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
Refer to the LEXUS Repair Manual for each work procedure.

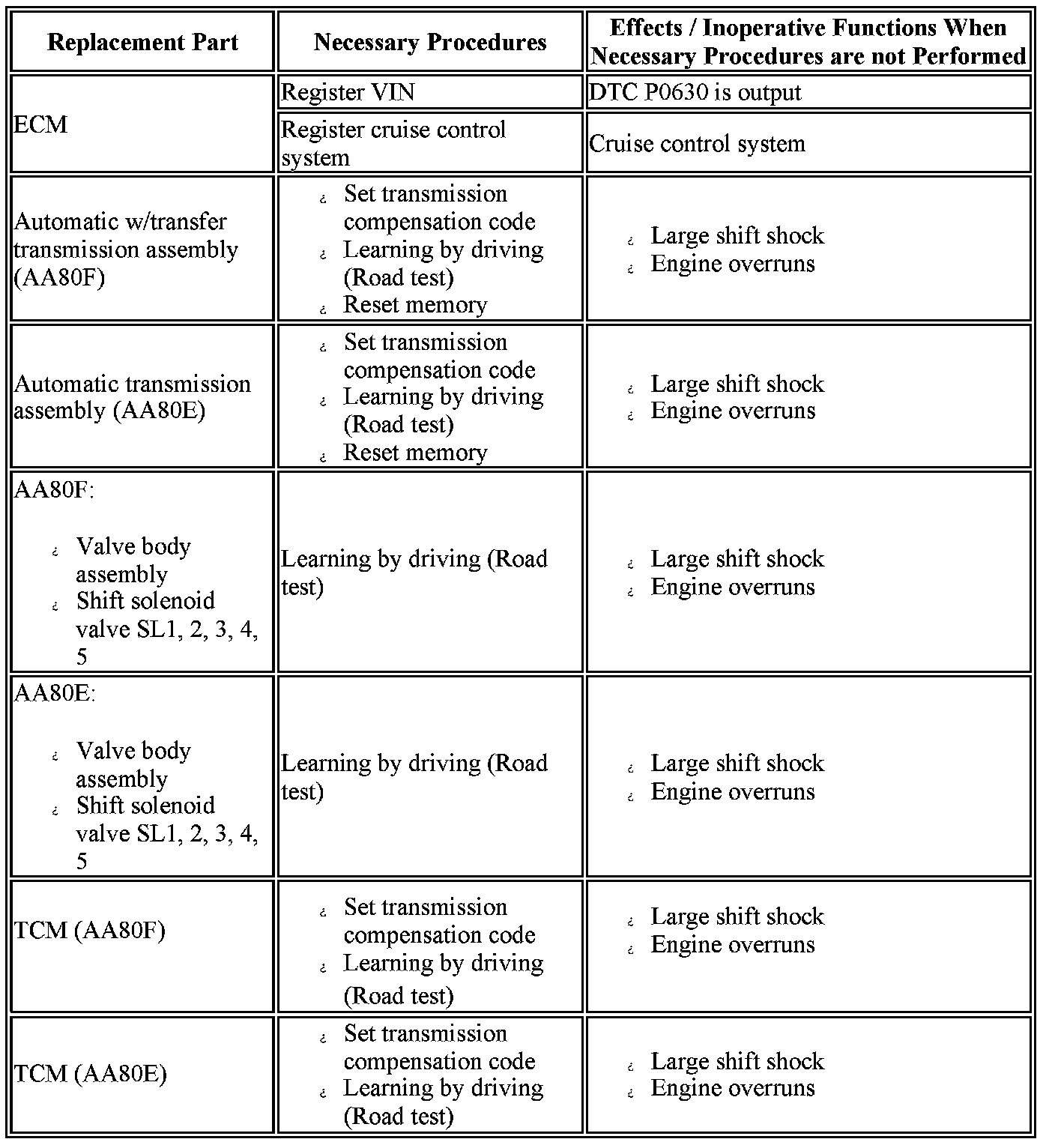

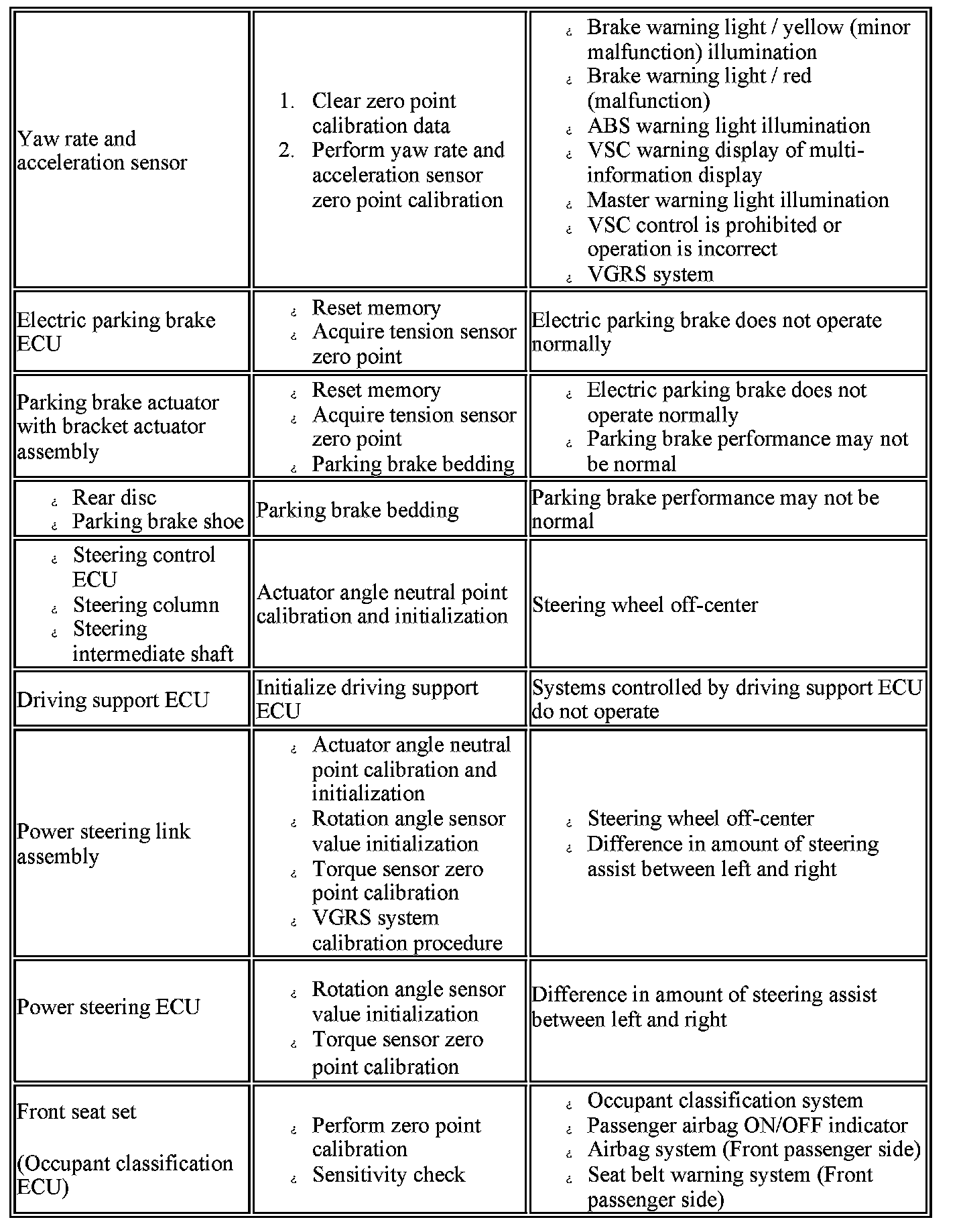

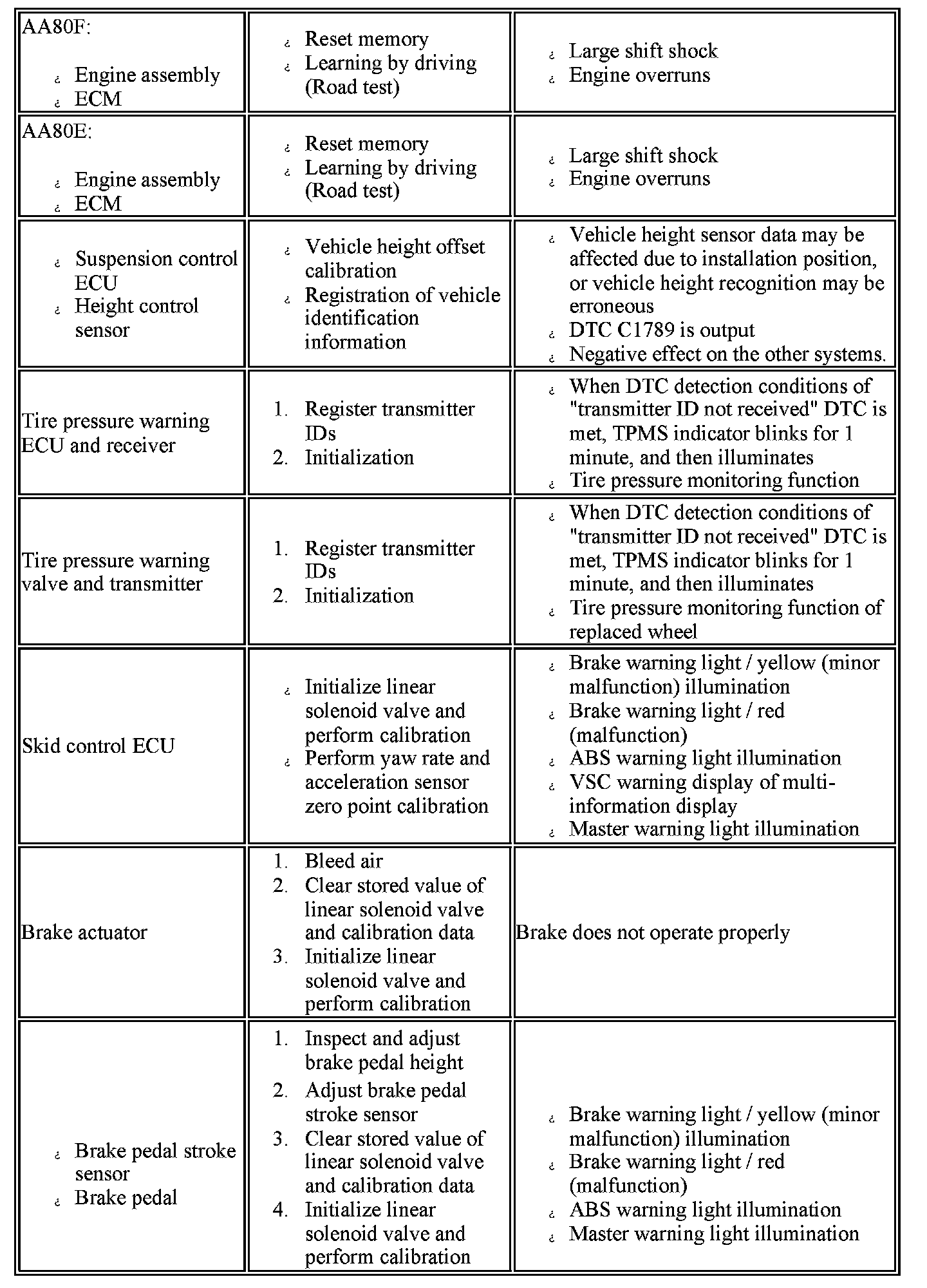

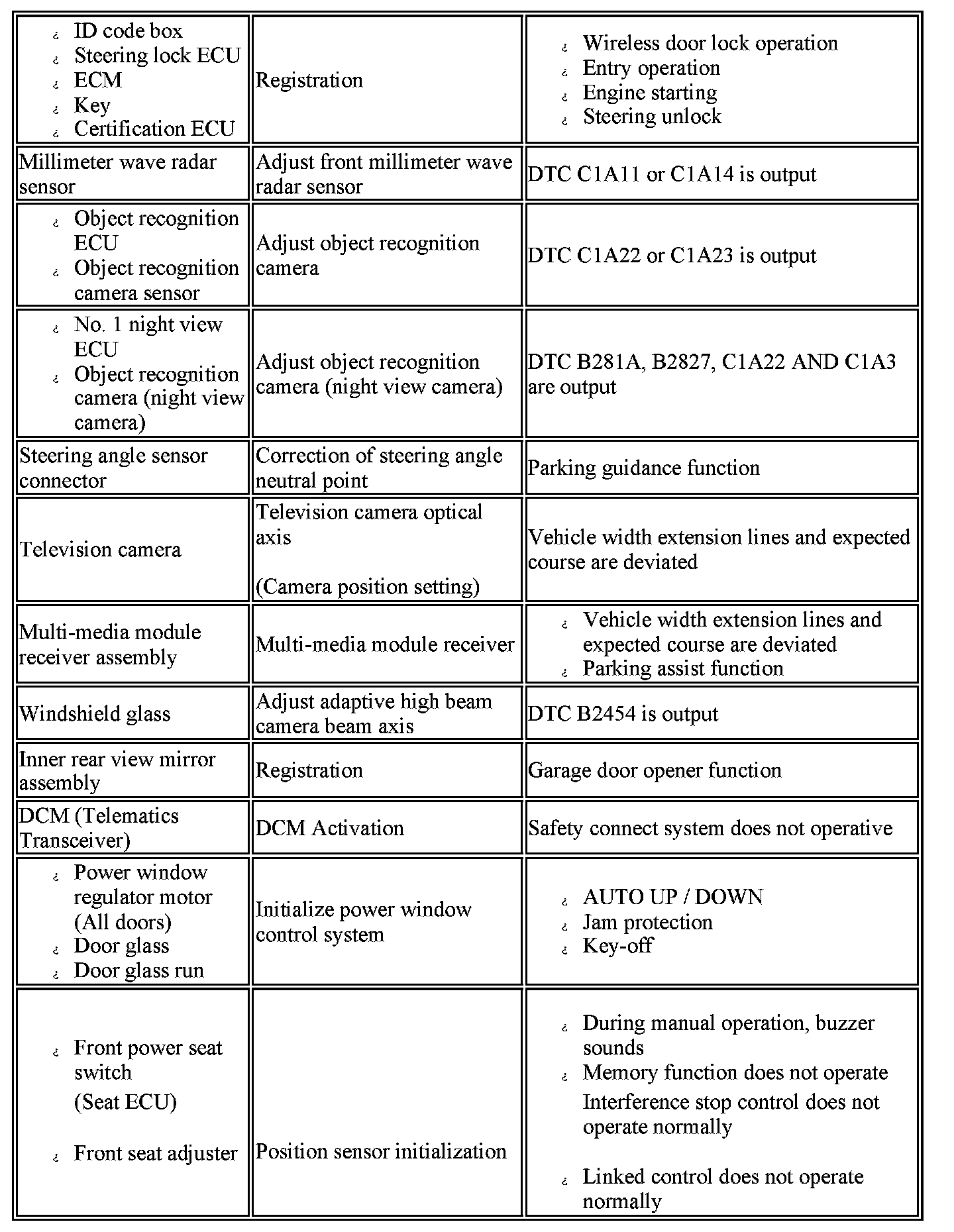

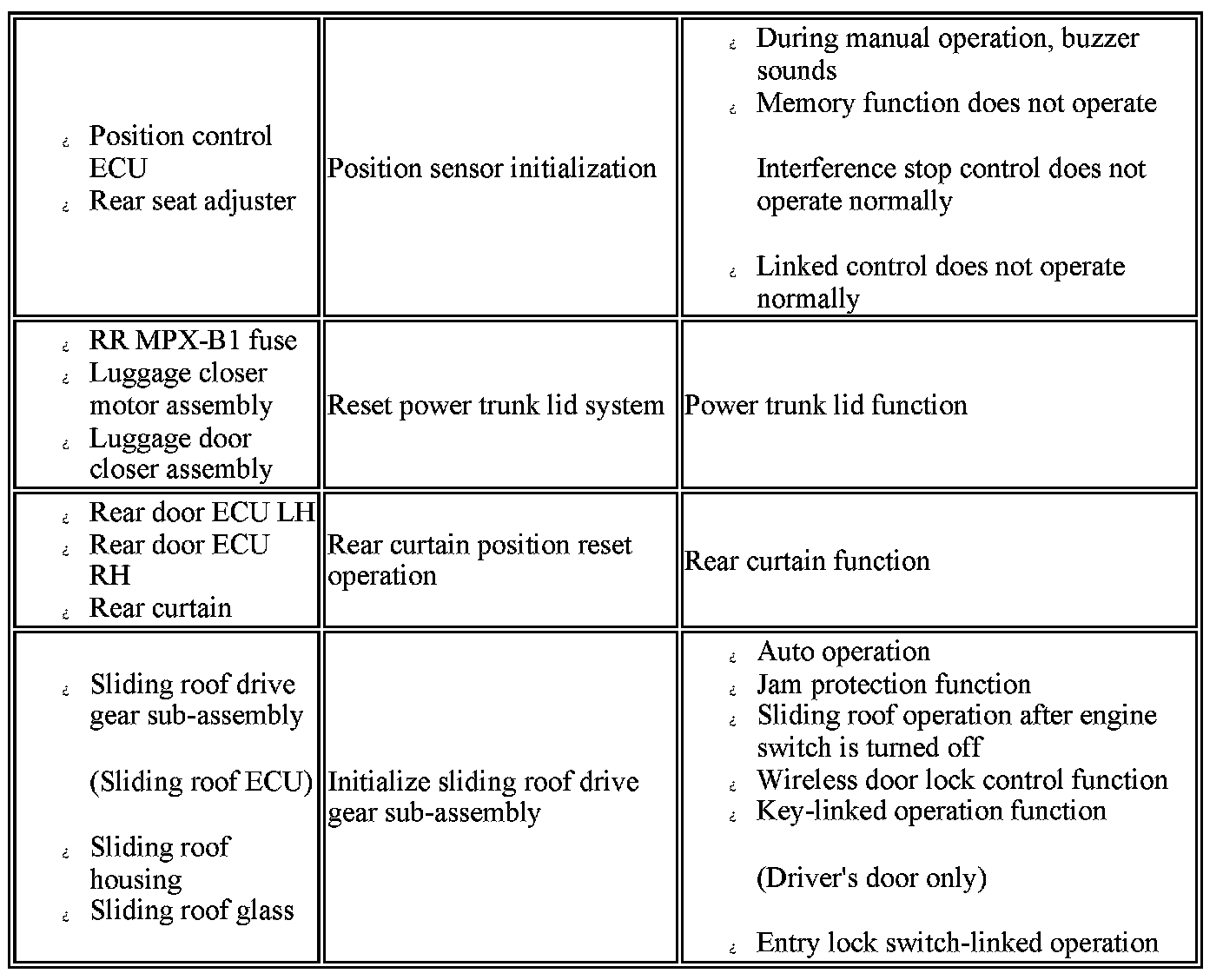

PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
