Audio System - XM(R) Activation Confirmation Procedure





L-SB-0103-12

September 26, 2012

XM Activation Confirmation During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

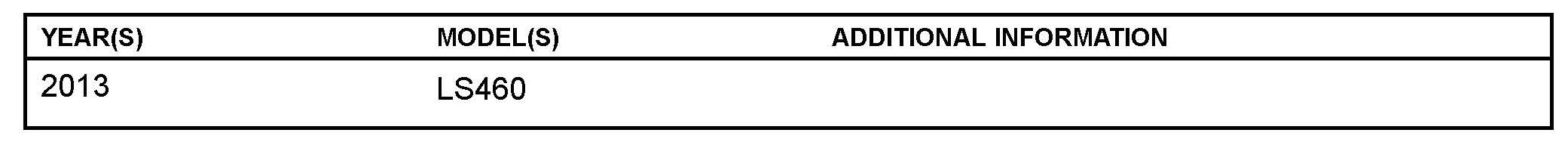

Applicability

Introduction

2013 model year LS 460 vehicles equipped with a Navigation System are equipped with factory installed XM Satellite Radio and XM NavTraffic Services, including a 90 day free customer trial for each. As part of the PDS process, ensure that the XM Satellite Radio and XM NavTraffic Services are activated and ready for use.

Warranty Information

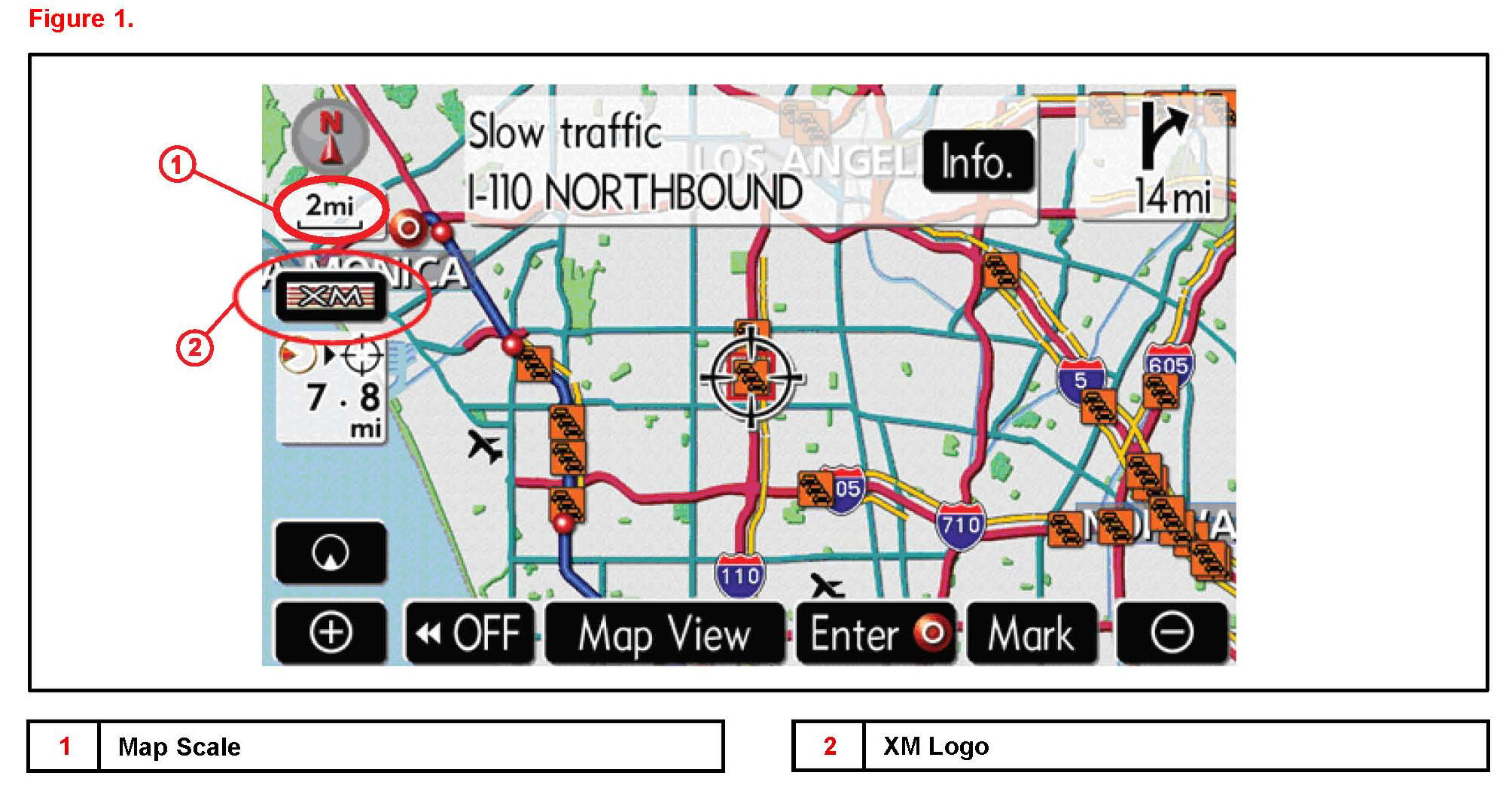

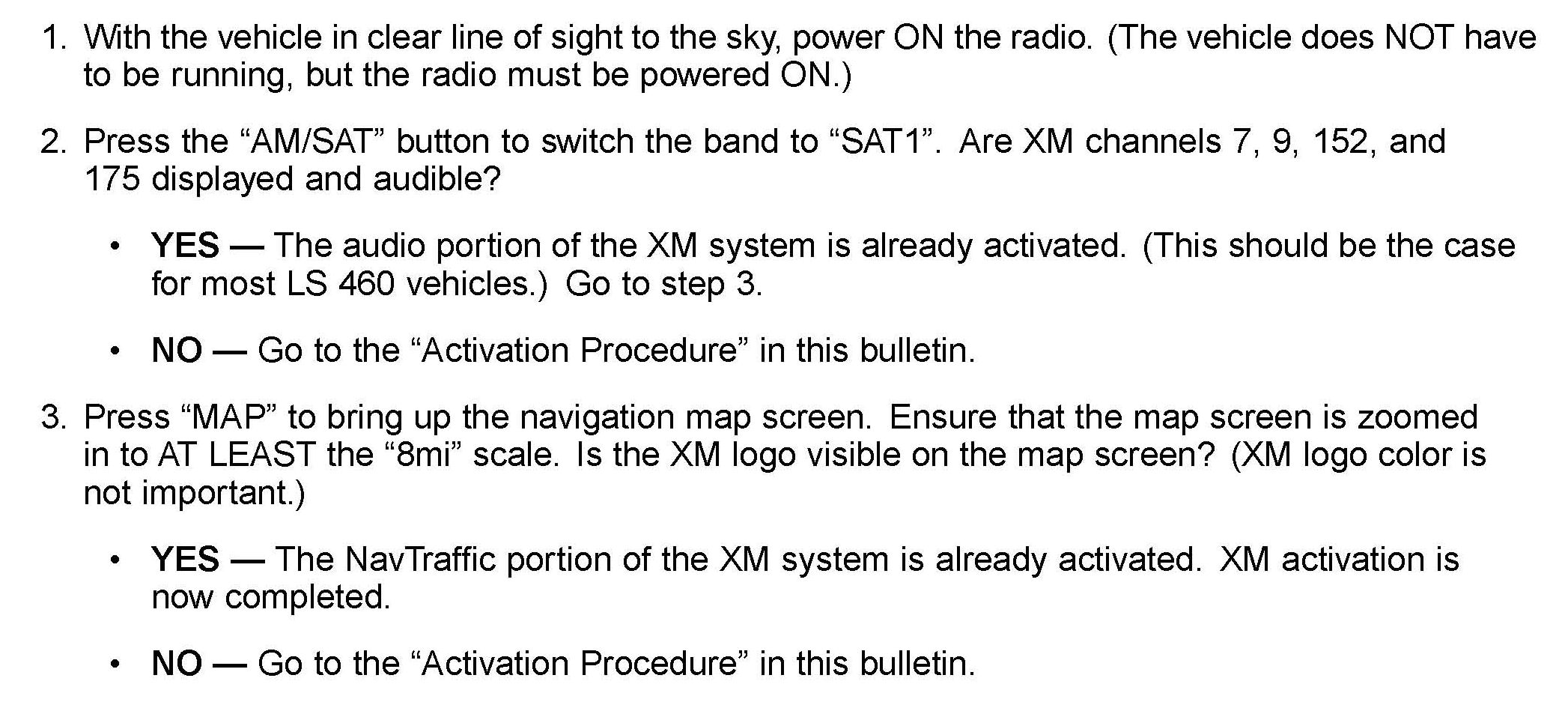

Confirmation Procedure

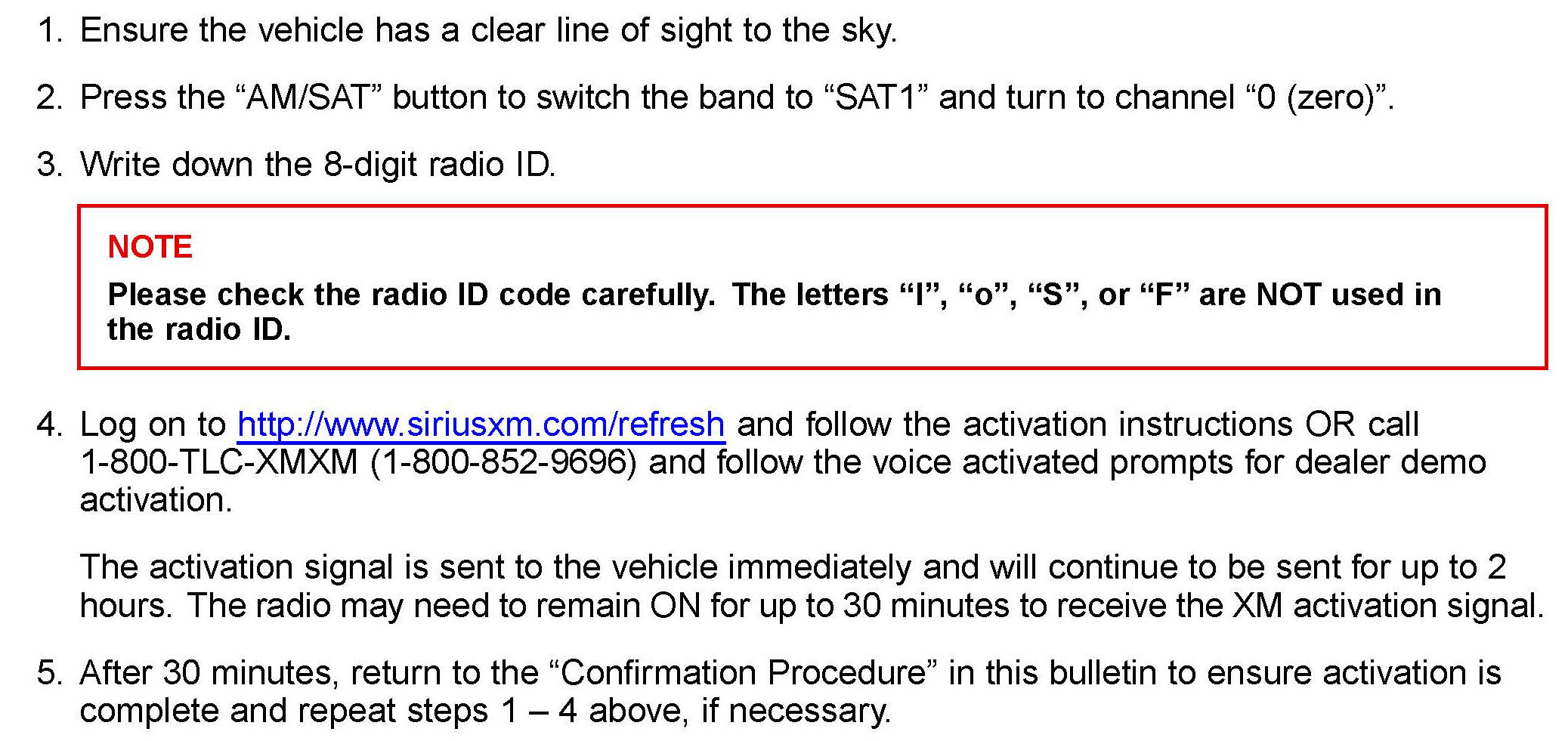

Activation Procedure

© 2012 Lexus, a division of Toyota Motor Sales, USA
