Silencer Sheet Installation Areas

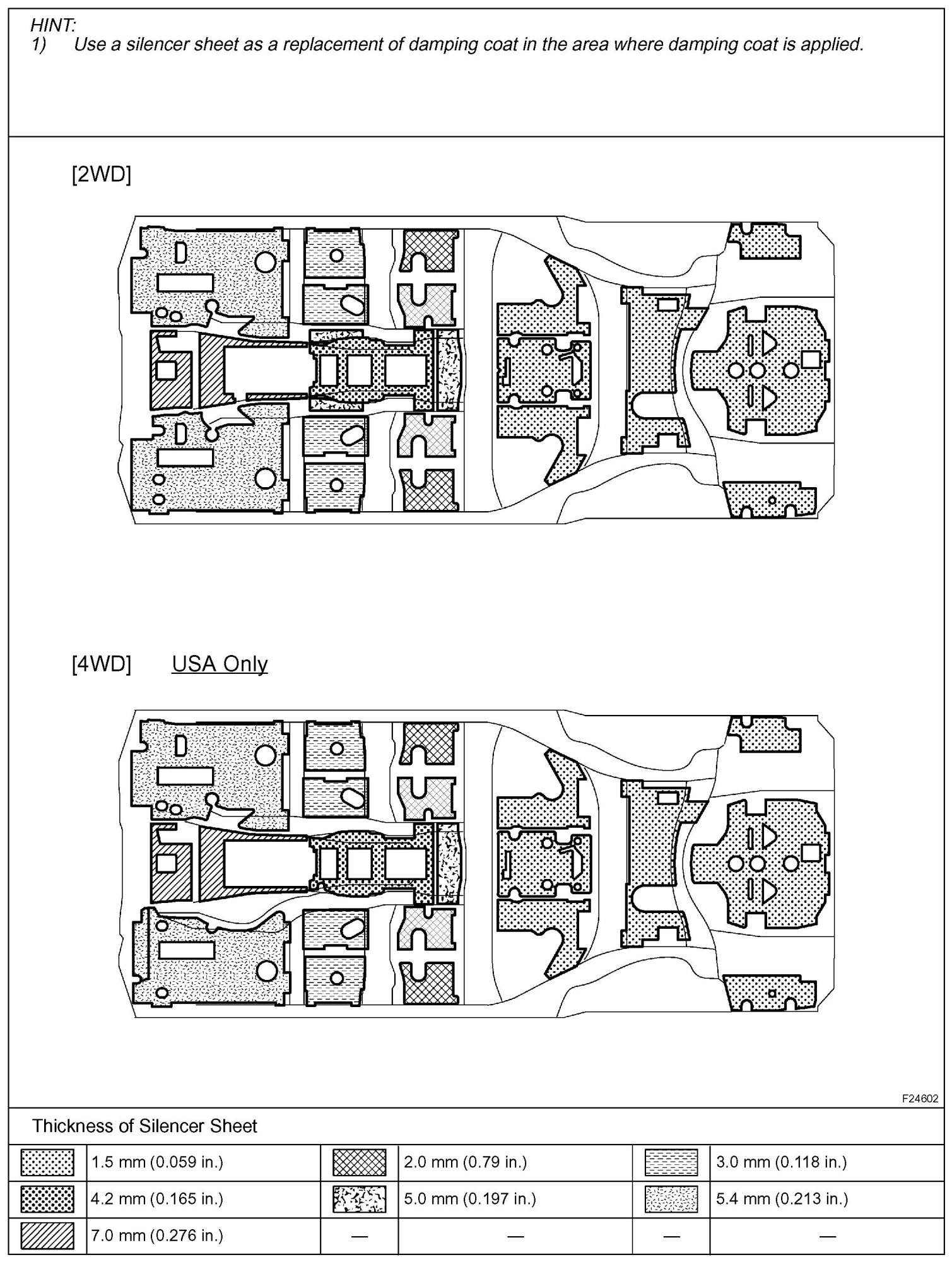

SILENCER SHEET INSTALLATION AREAS

HINT:




1. Use a silencer sheet as a replacement of damping coat in the area where damping coat is applied.
