Tire Monitor System - Activation & Initialization

L-SB-0162-11

December 23, 2011

Tire Pressure Warning System Activation & Initialization

Service Category
General

Section
Pre-Delivery Service

Market
USA

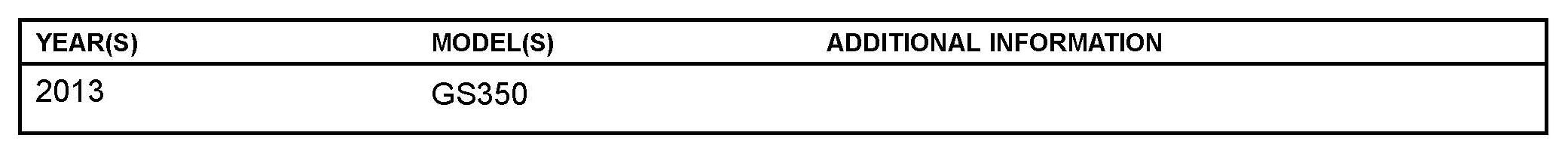

Applicability

Introduction

2013 model year GS 350 vehicles are equipped with a direct-type Tire Pressure Warning System (TPWS). Each tire (except the spare tire) has a tire pressure warning valve/sensor that measures tire pressure. The data is transmitted to the Tire Pressure Warning System antenna/receiver and then to the Tire Pressure Warning System ECU.

During Pre-Delivery Service (PDS) the tire pressure warning valves/sensors must be activated and the system initialized according to the procedure in this bulletin.

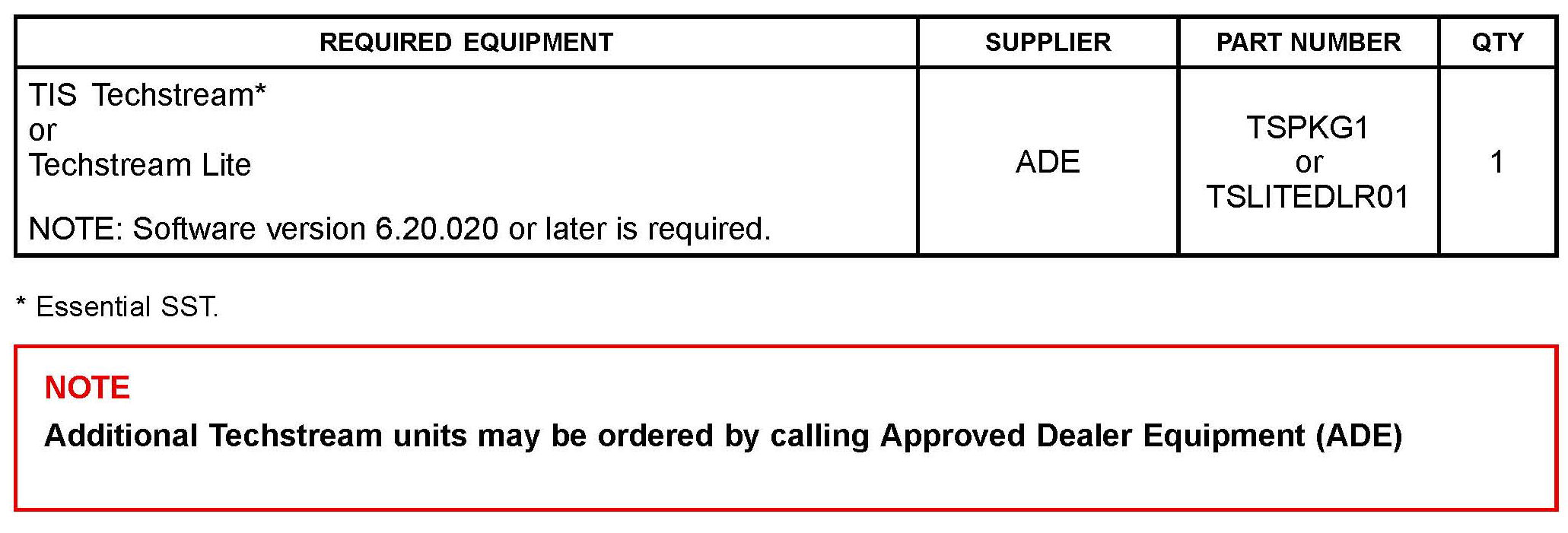

Required Tools & Equipment

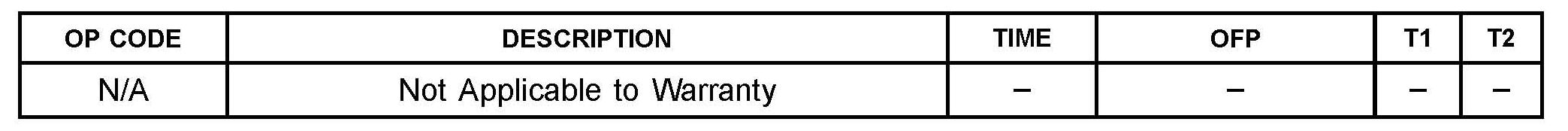

Warranty Information

Reference

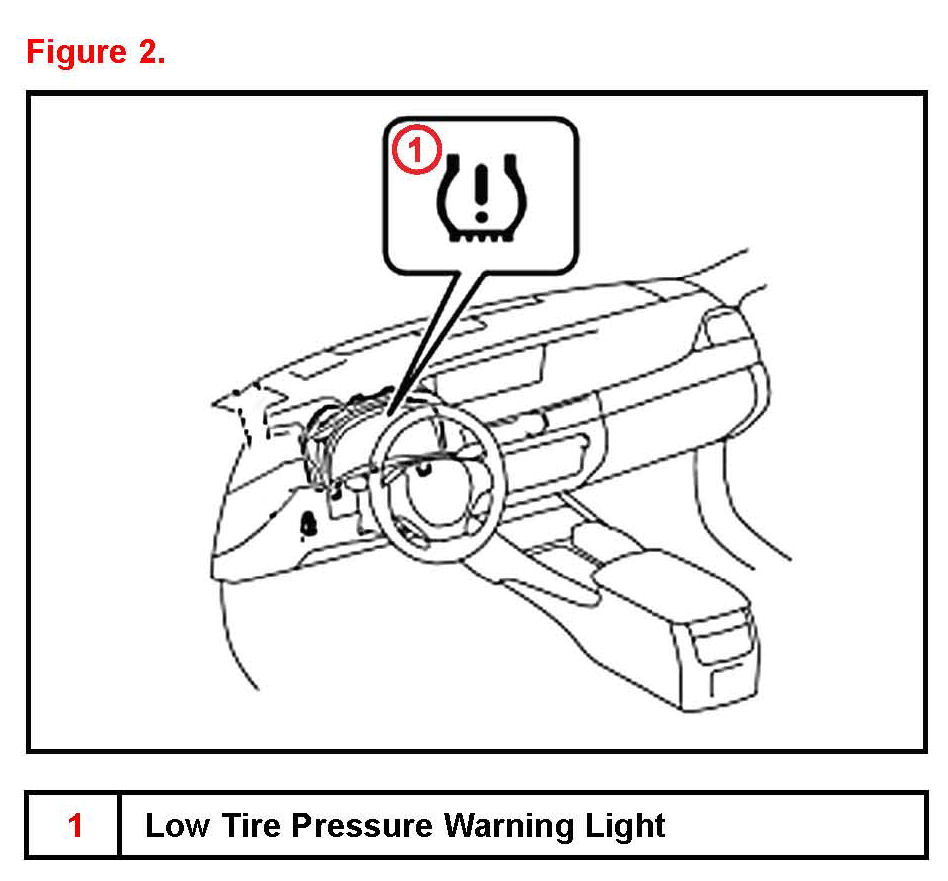

^ After cycling the ignition to the "IG-ON" position, the Low Tire Pressure Warning Light will blink for 1 minute and remain illuminated until all the tire pressure warning valves/sensors are activated.

^ The Diagnostic Trouble Codes (DTCs) listed below are stored in the TPWS ECU until the tire pressure warning valves/sensors are activated.

^ The DTCs will automatically clear when the tire pressure warning valves/sensors are activated.
Activation Procedure

1. Connect TIS Techstream.





2. Cycle the ignition switch to the "IG-ON" position and check that the Low Tire Pressure Warning Light blinks for 1 minute and then remains illuminated.





3. Press or remove the valve core to reduce the tire inflation pressure rapidly by 6 psi (0.4 kgf/sq.cm, 40 kPa), or more, within 30 seconds.

4. Using TIS Techstream, check for TPWS DTCs.

^ If NO DTCs are stored, go to step 1 of the Initialization Procedure.

^ If DTCs C2111 - C2114 are stored, repeat step 4.





HINT and Note

Initialization Procedure

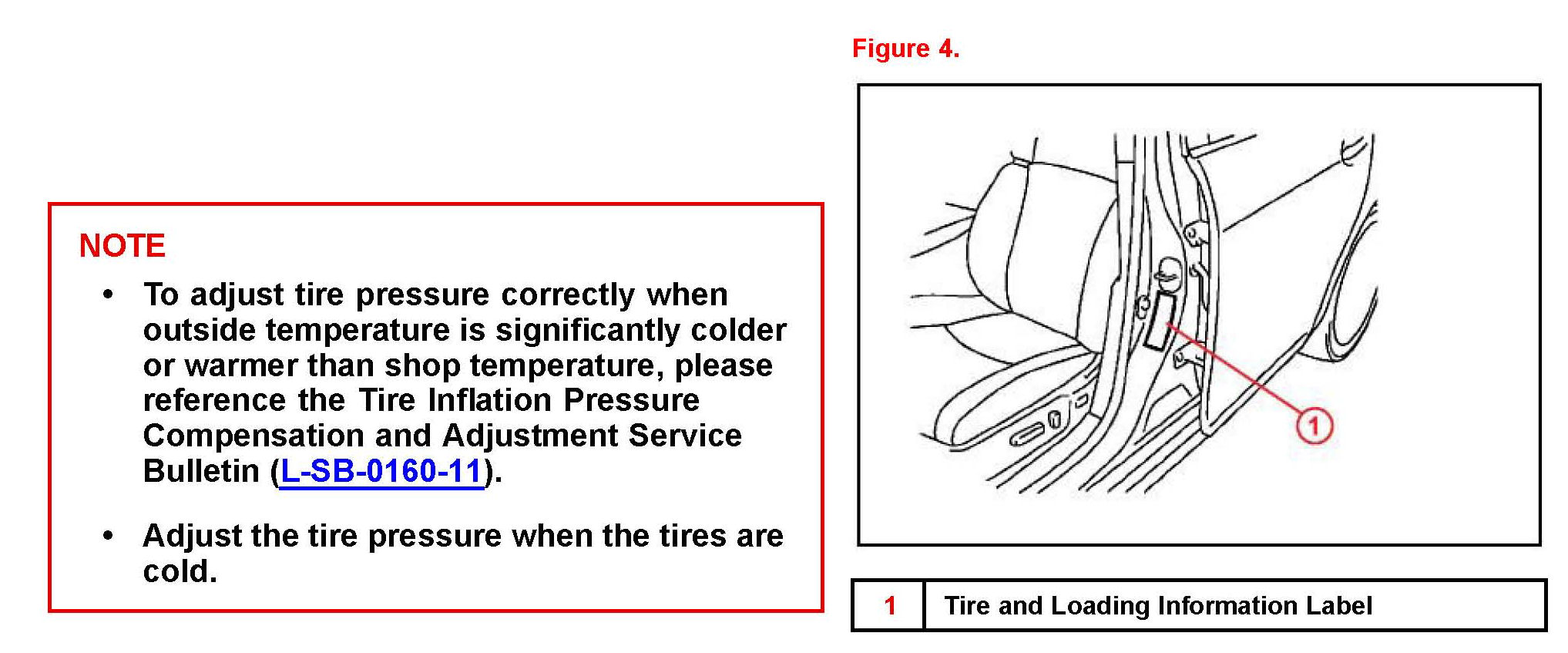

1. Adjust all tires (except the spare tire) to the standard tire inflation pressure, as indicated on the Tire and Loading Information label located inside the driver's doorjamb.

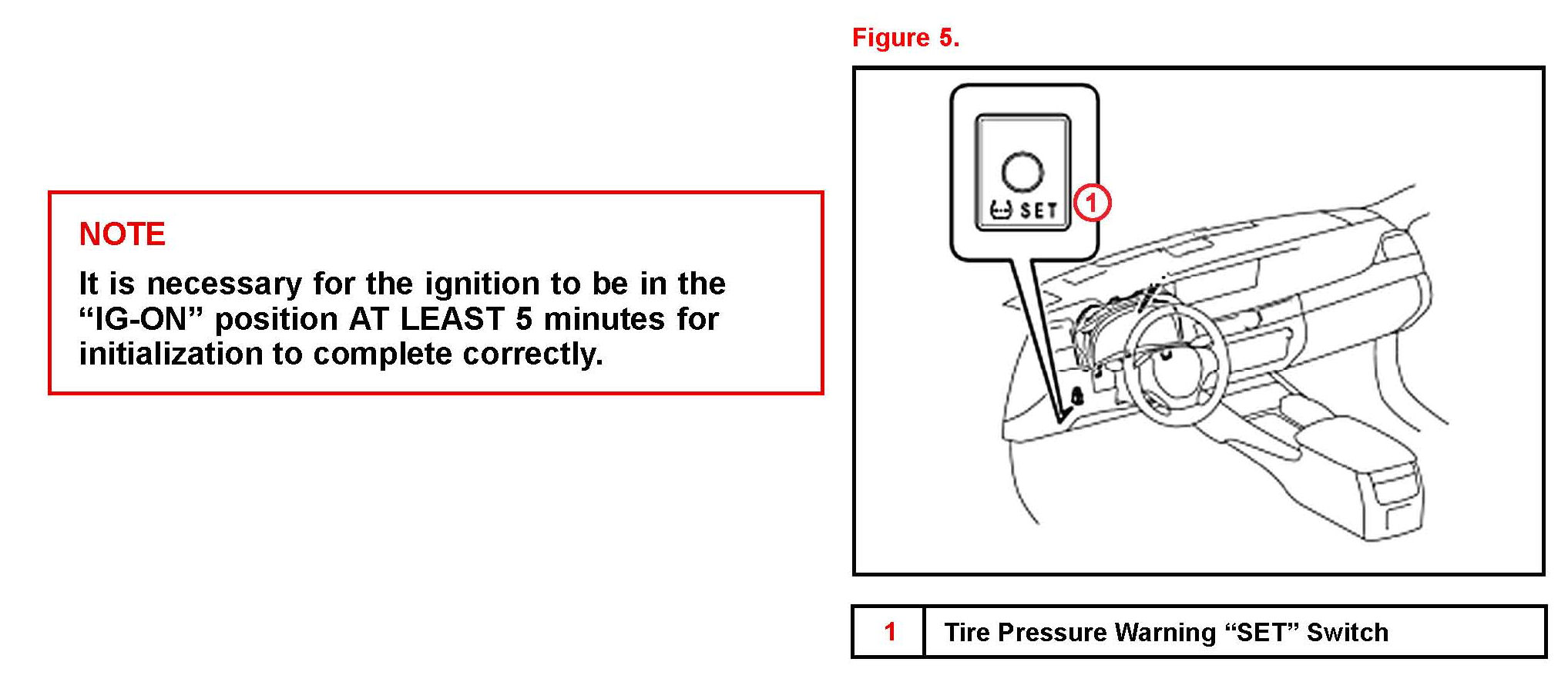

2. Push and hold the Tire Pressure Warning "SET" Switch for 3 seconds until the Low Tire Pressure Warning Light blinks 3 times and then turns OFF to set the tire pressure initialization.

3. Cycle the ignition "OFF" and then to "IG-ON".

4. Check the tire pressure values of all the tires using TIS Techstream.

Chassis/Tire Pressure Monitor/Data List

NOTE

It can take 2 - 3 minutes for the tire pressure values to be displayed on the TIS Techstream Data List.
