Procedures Necessary When Battery Terminal Is Disconnected / Reconnected

PROCEDURES NECESSARY WHEN BATTERY TERMINAL IS DISCONNECTED / RECONNECTED

Each inspection procedure refers to the LEXUS Repair Manual.

1. PROCEDURES NECESSARY WHEN BATTERY TERMINAL IS DISCONNECTED / RECONNECTED







NOTICE: After the engine switch is turned off, the multi-media module receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

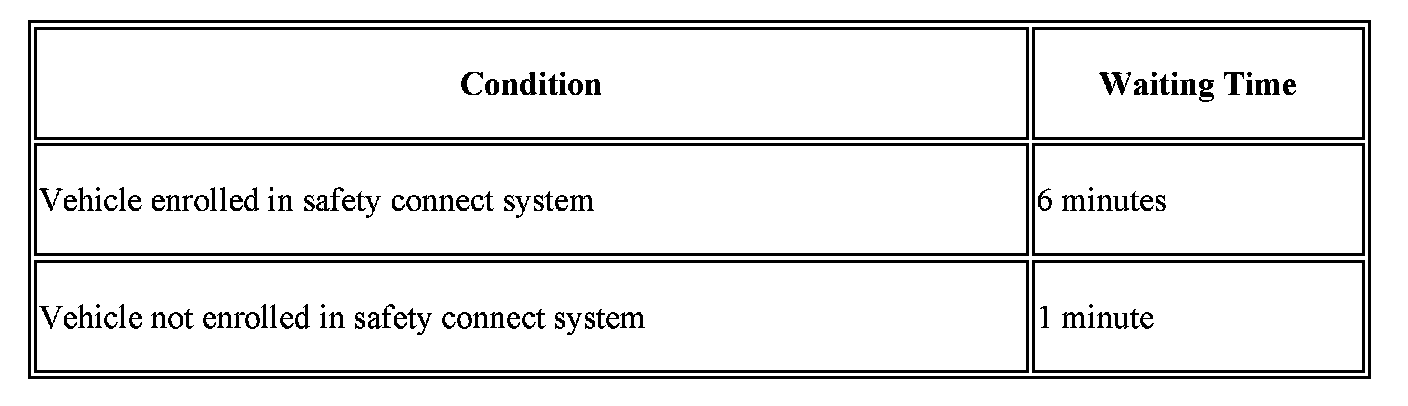

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal
