Navigation Radio - HDD, Gracenote(R) Database Update

L-SB-0002-13

January 17, 2013

Premium HDD Navigation Gracenote(R) Database Update Process (EMV-N)

Service Category
Audio/Visual/Telematics

Section
Navigation/Multi Info Display

Market
USA

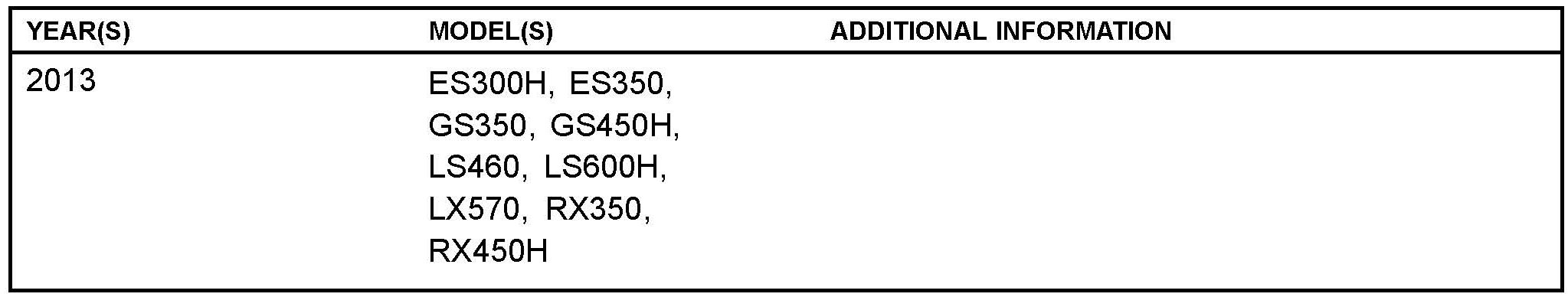

Applicability

Introduction

Lexus models equipped with the Premium HDD Navigation (EMV-N) System will periodically require an update to the Gracenote(R) Database. Gracenote(R) includes detailed information for songs (i.e. Genre, Artist, Song Title, Album Name, etc.). The Gracenote(R) update will be included on the "USB Drive - Navigation Update" SST. A Gracenote(R) Update must be performed before a Navigation Map Update. A Navigation Map Update is not required to complete the Gracenote(R) update. Use the process described in this bulletin to perform the update.

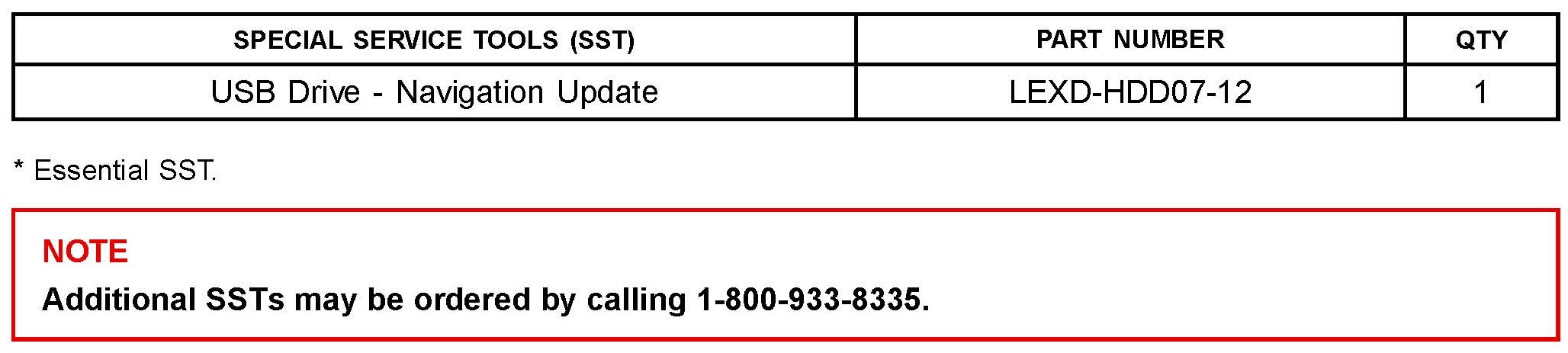

Required Tools & Equipment

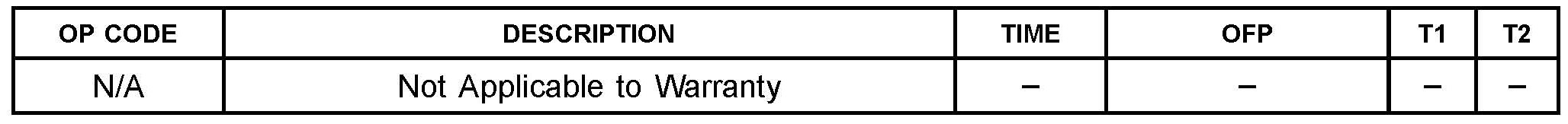

Warranty Information

Repair Procedure

1. Turn Ignition ON (Ready OFF).

2. Insert the USB Drive - Navigation Update SST into the USB port of the vehicle (usually located under the navigation head unit, center console/armrest, or glove box).

3. Please note the head unit style to determine how to get to Map Data screen.

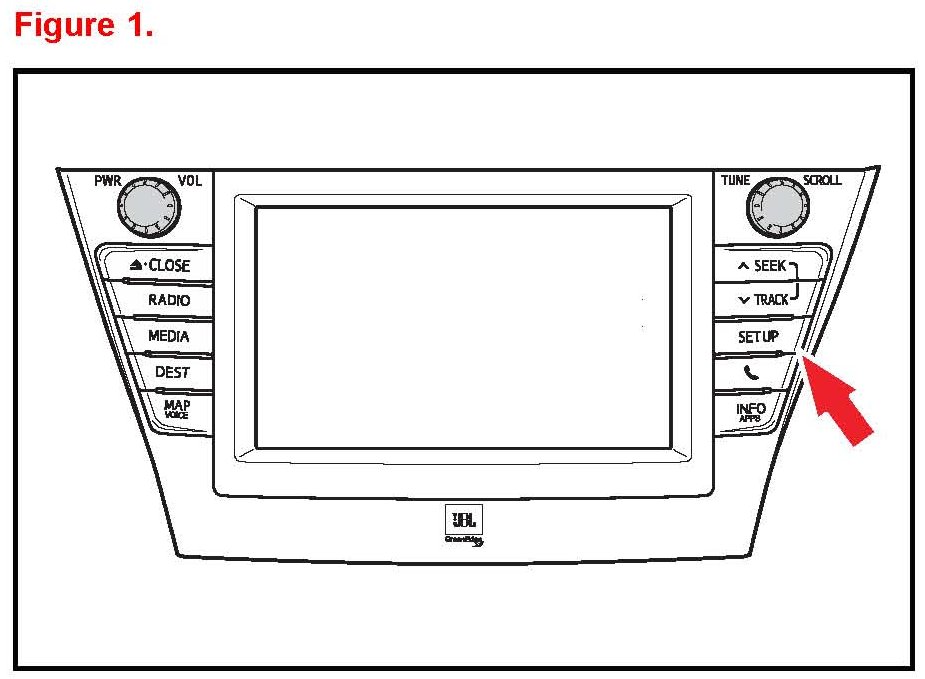

A. Press the "Setup" button on the navigation head unit.

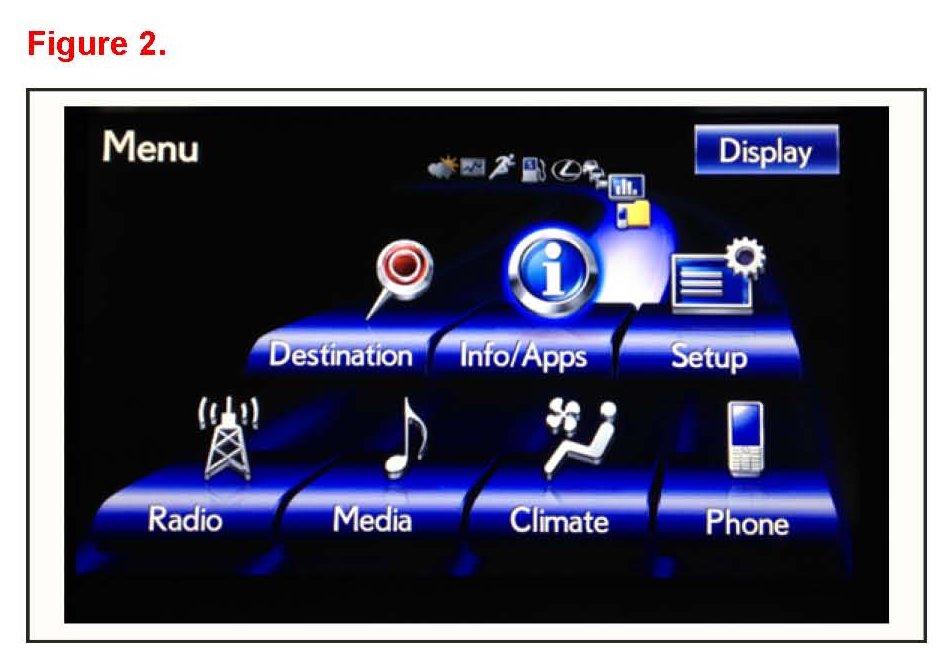

B. Press "Menu" on the Remote Touch Pad, then select "Setup".

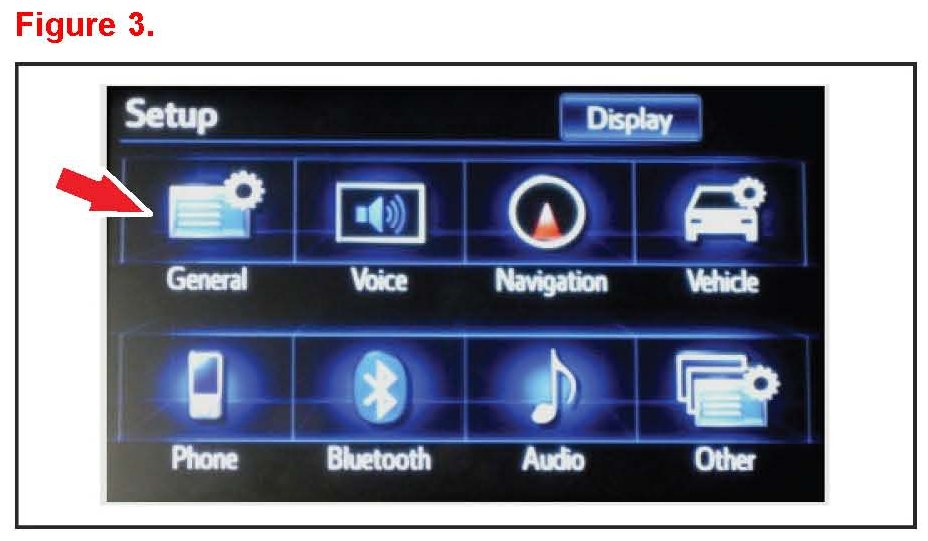

4. Select "General" on the navigation head unit.

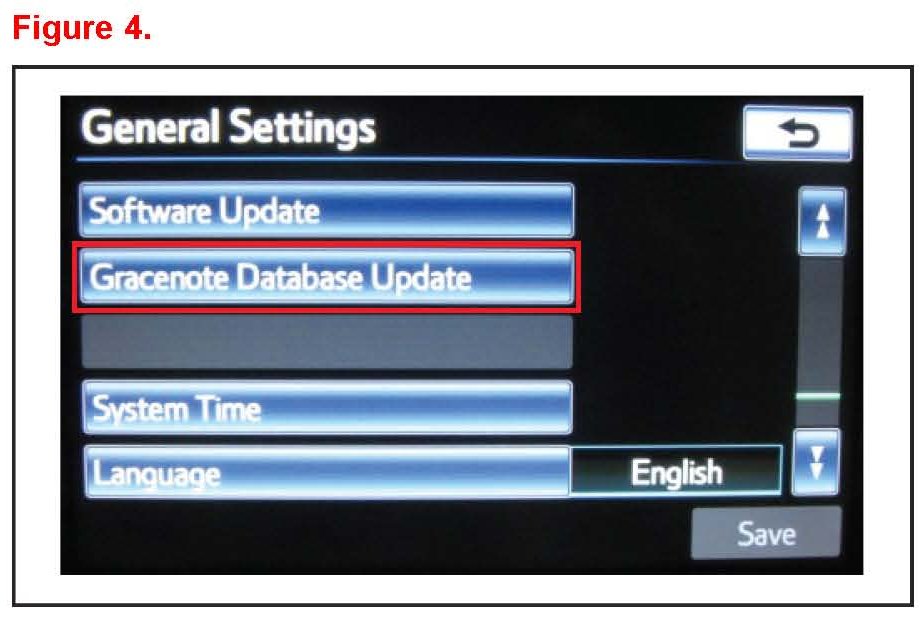

5. Press the down arrow and then select "Gracenote Database Update".

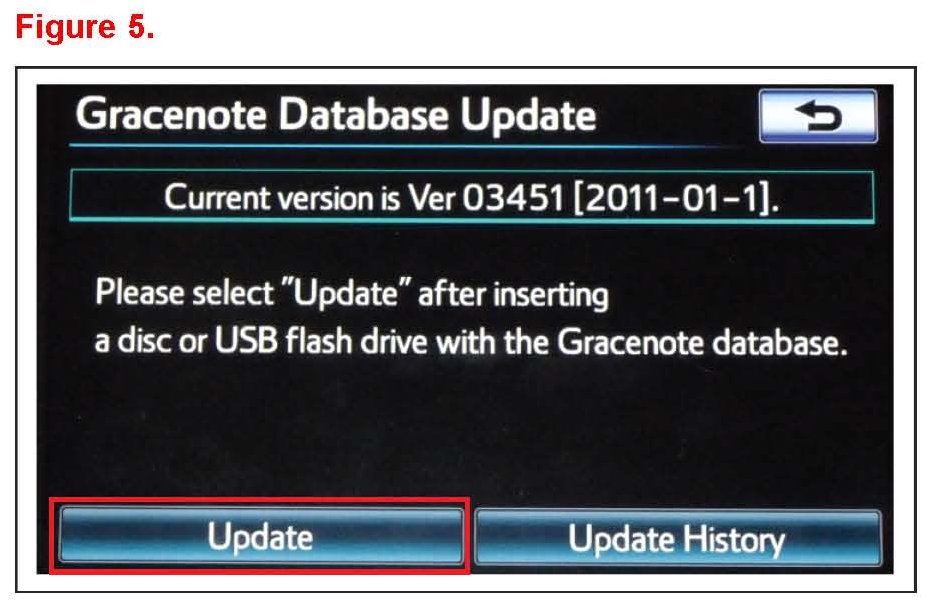

6. Select "Update" on the navigation head unit.

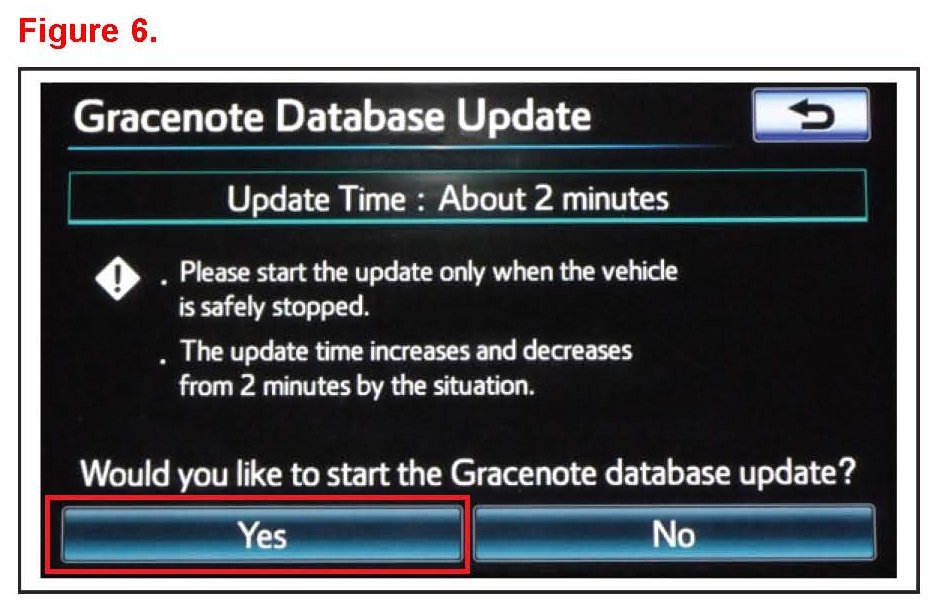

7. Select "Yes" on the navigation head unit.

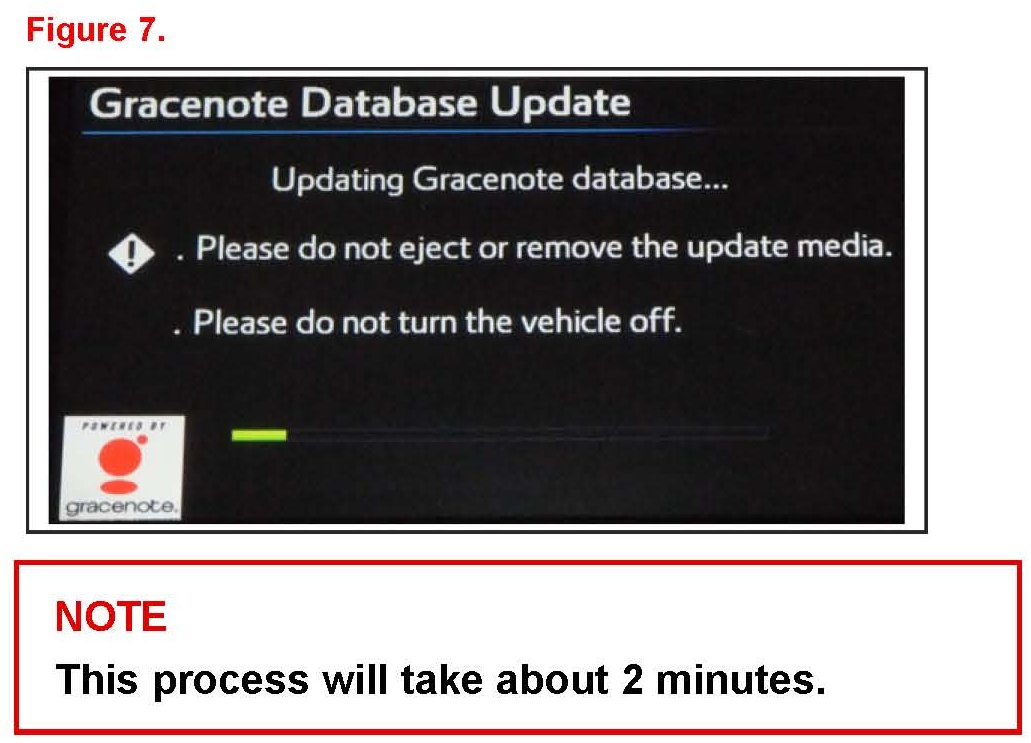

8. Gracenote Database Update will begin automatically.

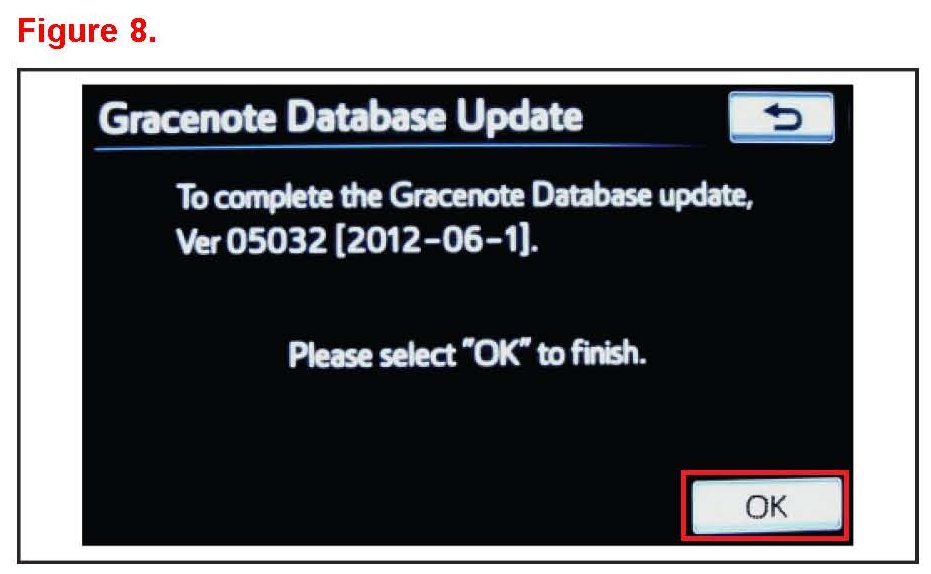

9. The head unit will display the new Gracenote version upon completion.

The head unit is now ready for a Navigation Map Update (if desired).
