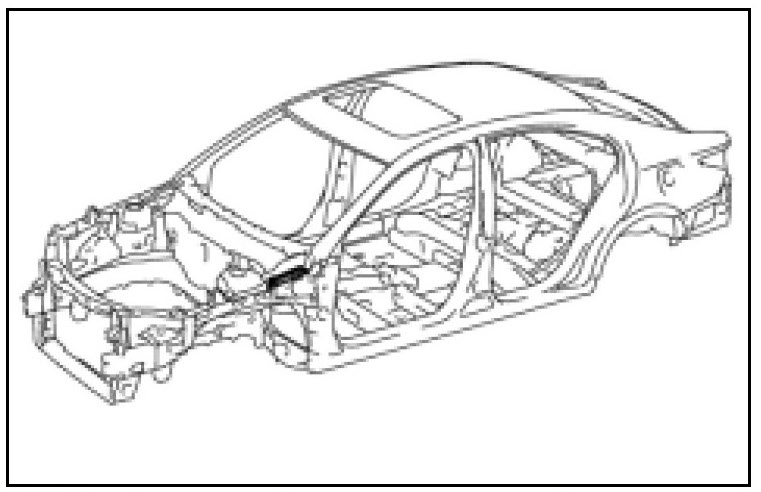

Cowl Top Side Upper Panel

ASSEMBLY REPLACEMENT







With the cowl top to apron brace removed.

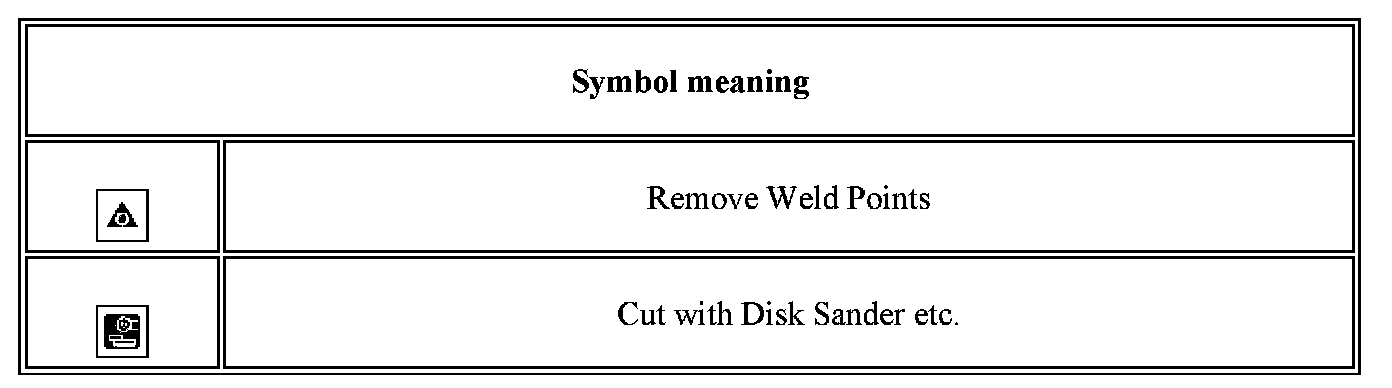

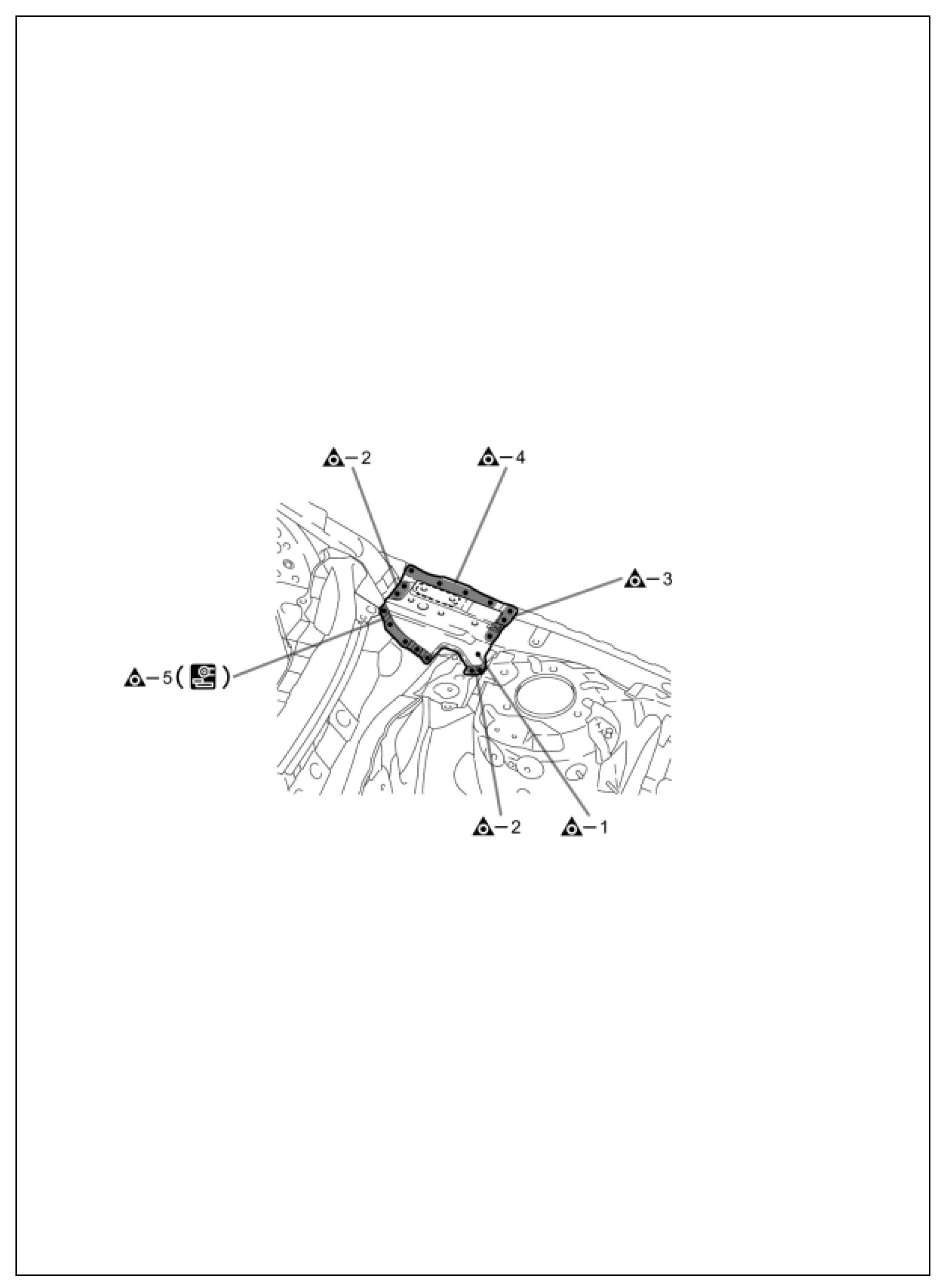

1. REMOVAL

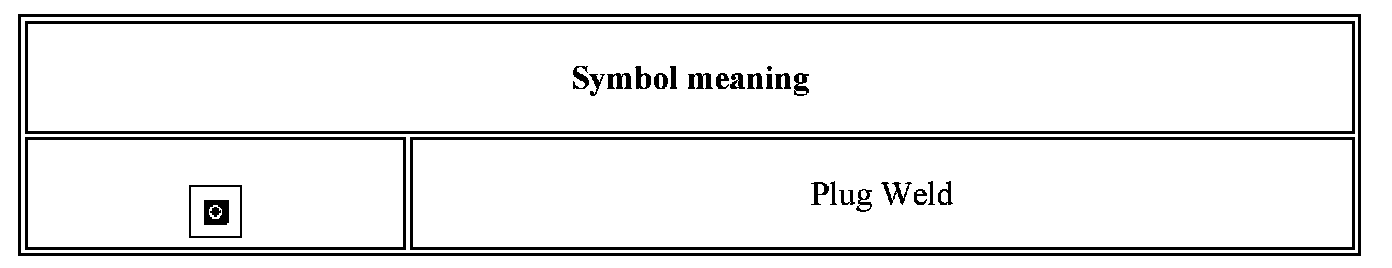

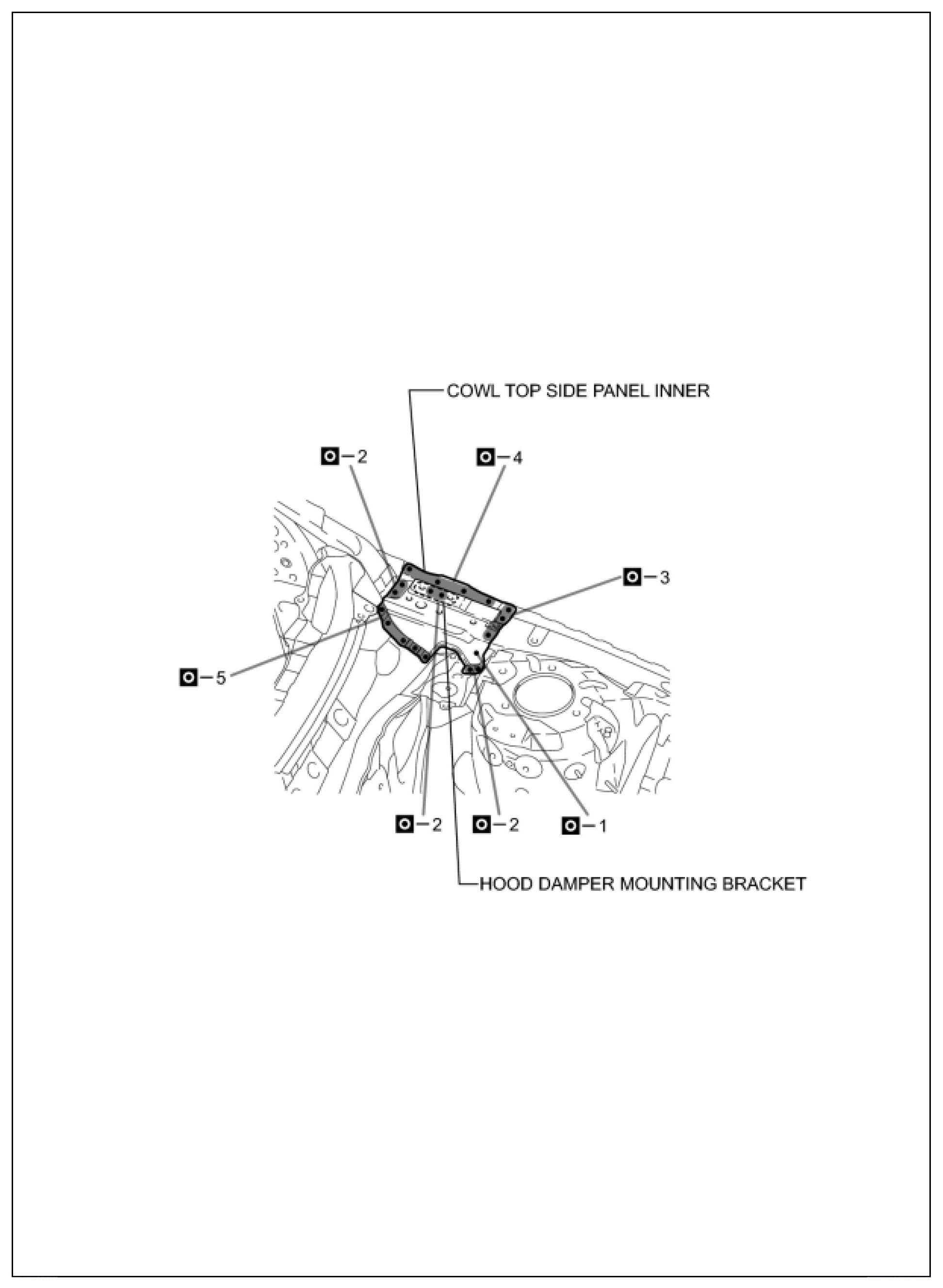

2. INSTALLATION







INSTALLATION POINT

1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)
3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
