Hybrid System - Electrical Safety Precautions

L-SB-0089-12

September 7, 2012

Hybrid System Electrical Safety Precautions

Service Category
General

Section
Pre-Delivery Service

Market
USA

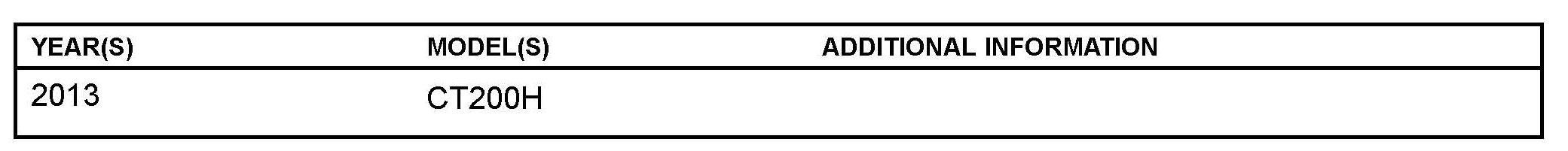

Applicability

Introduction

This bulletin provides general high-voltage safety precautions for the hybrid system. The hybrid system circuits operate with up to 650 volts. These high voltages are dangerous and can cause severe personal injuries, burns, electrical shock, or death, if proper safety precautions are NOT followed. Be sure to carefully review all applicable Repair Manual procedures BEFORE performing service.

As a policy, and to ensure safety, no Lexus dealership technician is qualified to service or repair hybrid vehicles until Lexus course L071 has been successfully completed.





CAUTION
When servicing the high-voltage system on the 2013 CT 200h, wait AT LEAST 10 minutes after disconnecting the service plug BEFORE touching any of the high-voltage connectors or terminals.

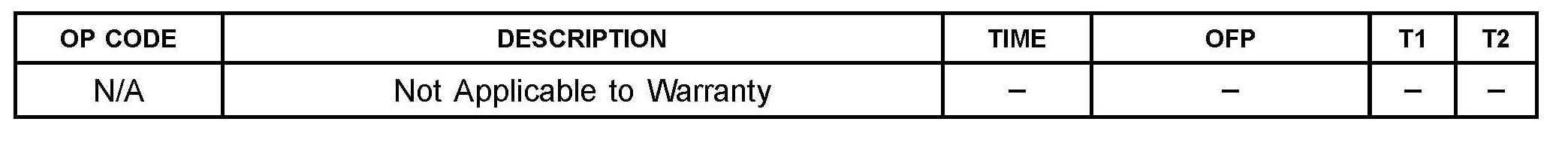

Warranty Information

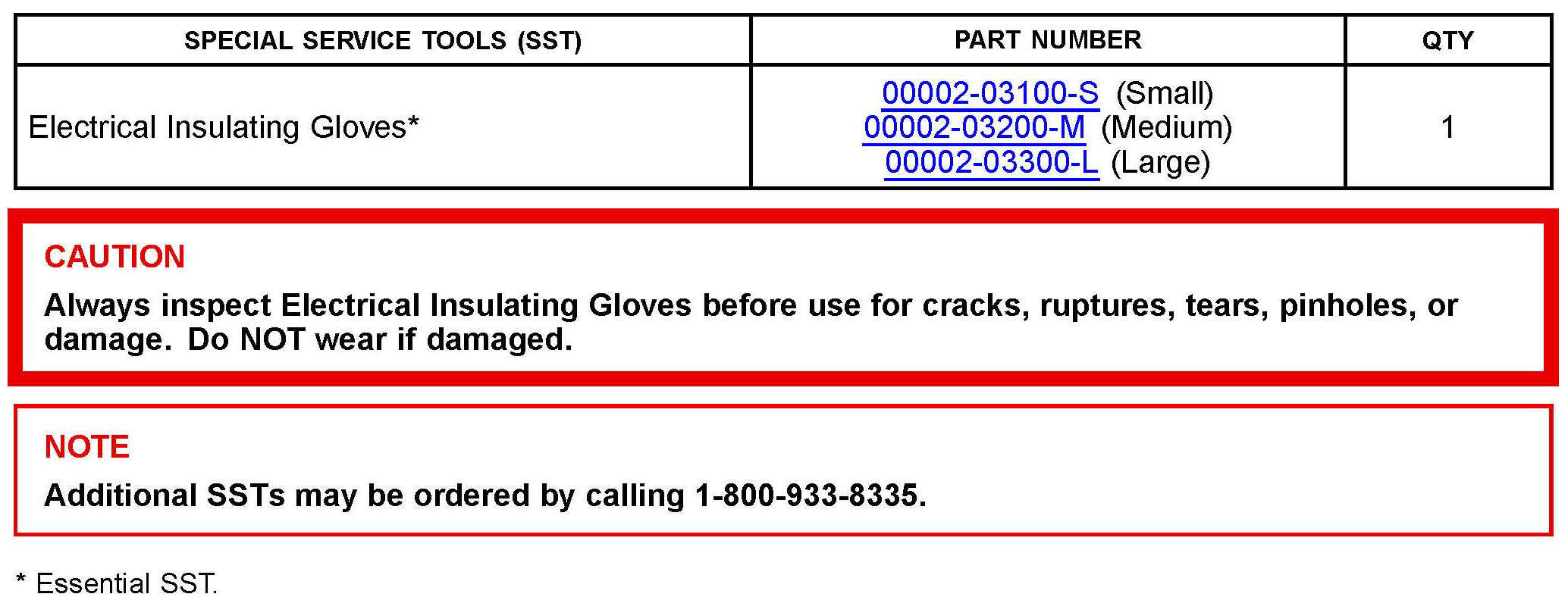

Required Tools & Equipment

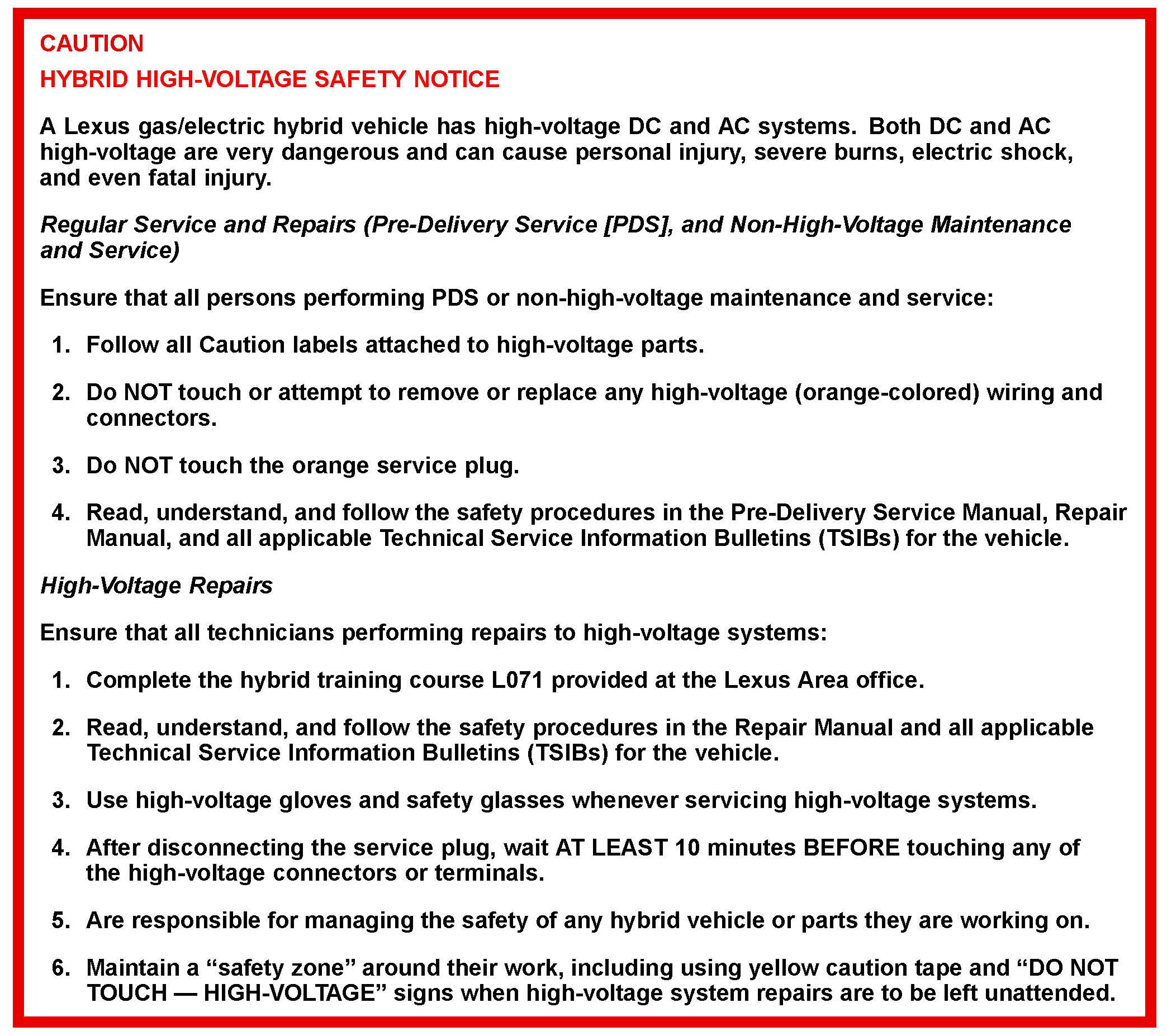

Electrical Safety Precautions

For additional Caution notices, download the PDF files from Dealer Daily, Lexus Customer Services website, Forms, and print on a color printer.

© 2012 Lexus, a division of Toyota Motor Sales, USA
