Canada - Hybrid System - Electrical Safety Precautions

L-TCI-3222

September 17, 2012

HYBRID SYSTEM ELECTRICAL SAFETY PRECAUTIONS

Service Category
General

Section
Pre-Delivery Service

Market
Canada

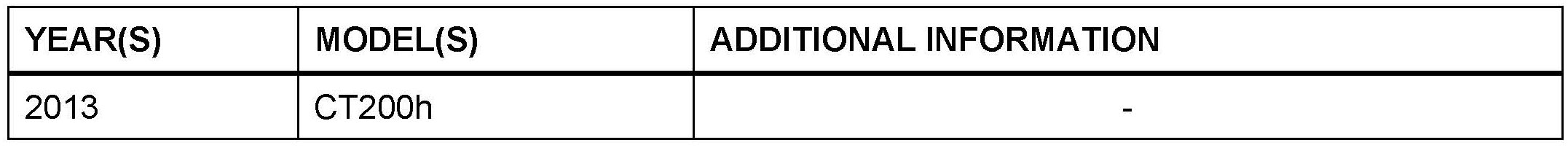

APPLICABILITY:

INTRODUCTION:





This bulletin provides general high-voltage safety precautions for the hybrid system. The hybrid system circuits operate with up to 650 volts. These high voltages are dangerous and can cause severe personal injuries, burns, and electrical shock, or death if proper safety precautions are NOT followed. Be sure to carefully review all applicable Repair Manual procedures BEFORE performing service.
As a policy, and to ensure safety, no Lexus dealership technician is qualified to service or repair hybrid vehicles until they have achieved Hybrid Certification from Lexus Academy.

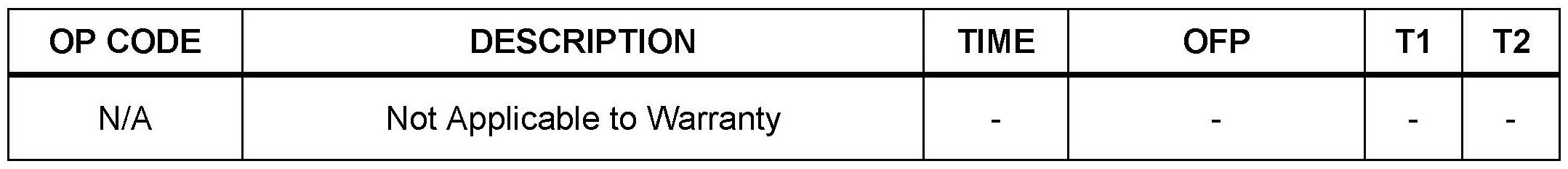

WARRANTY INFORMATION:

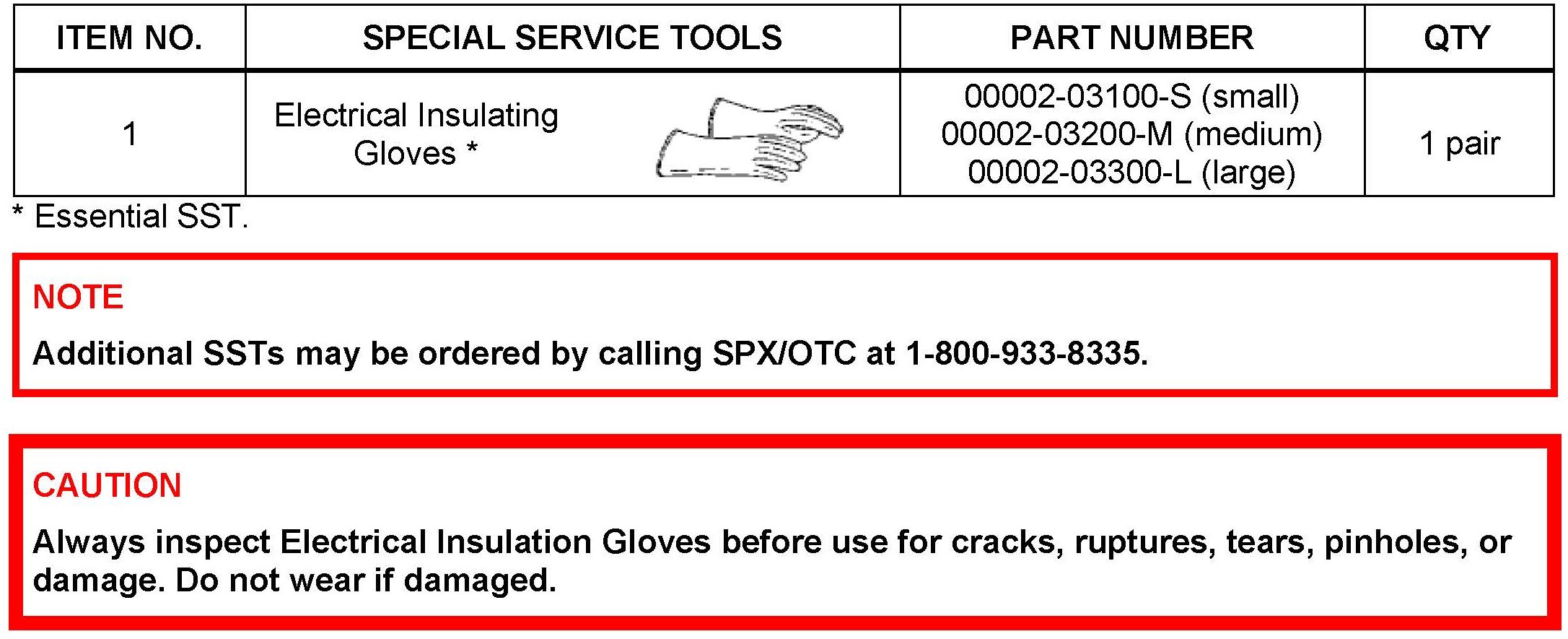

REQUIRED TOOLS & EQUIPMENT:

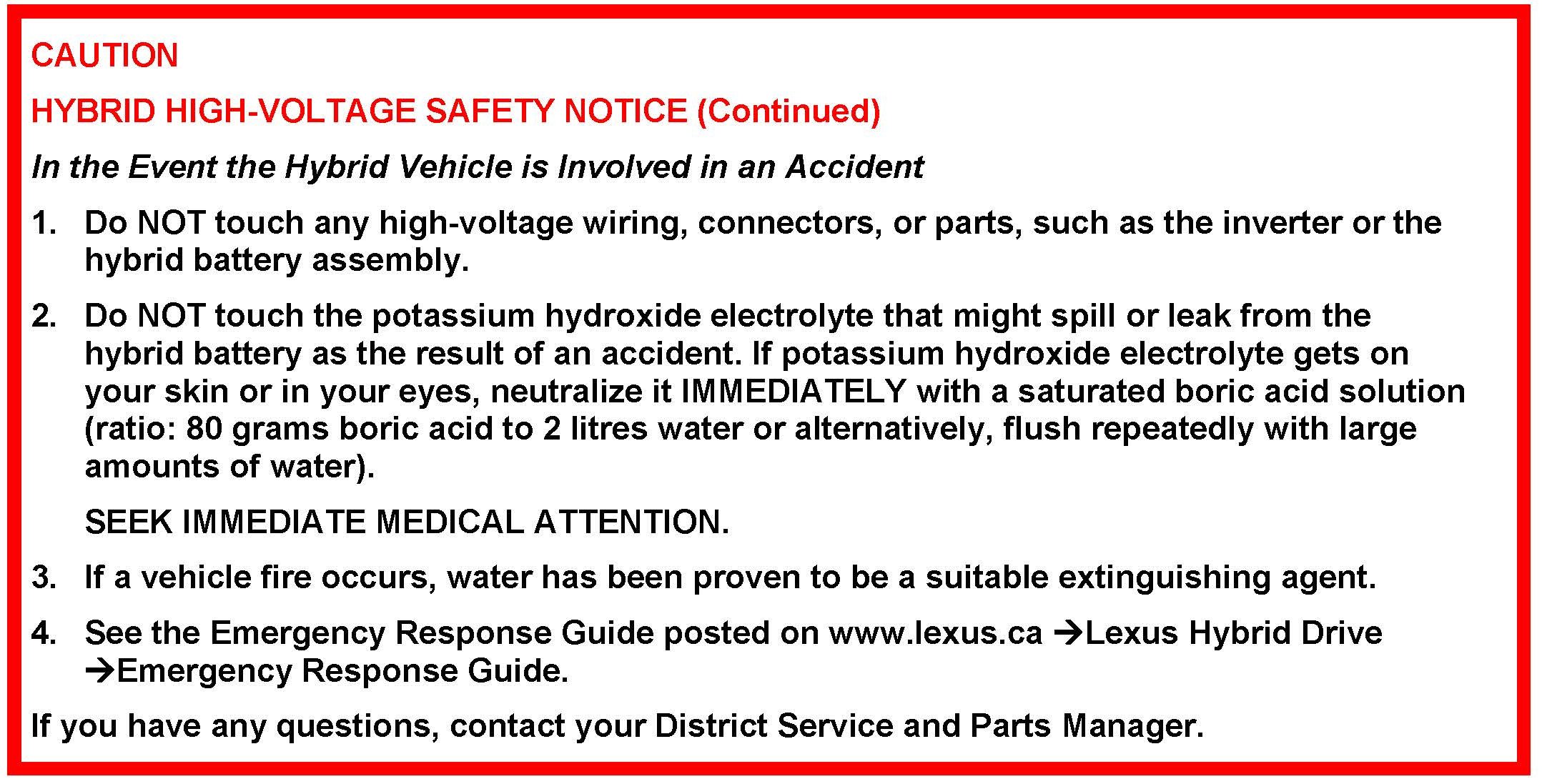

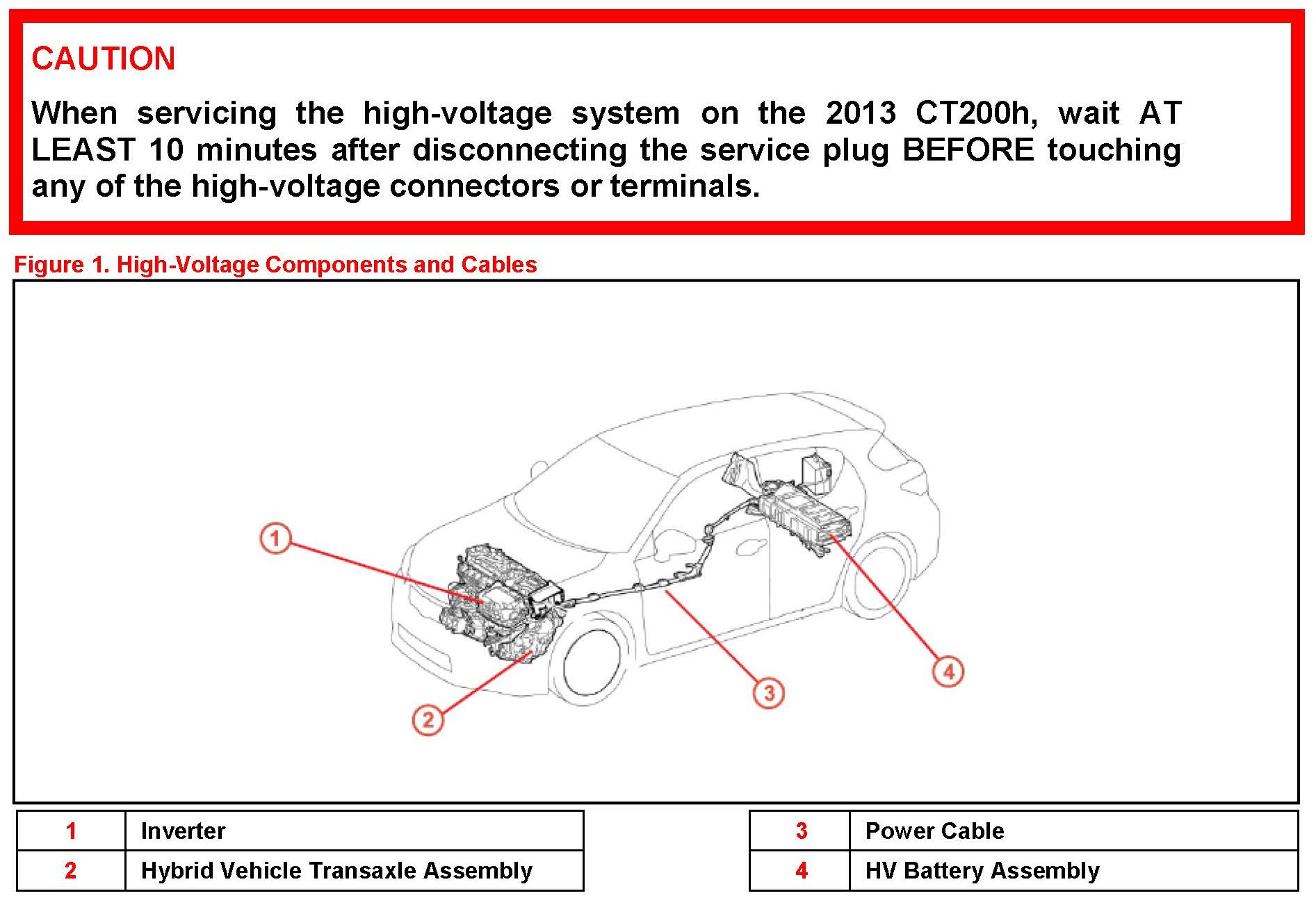

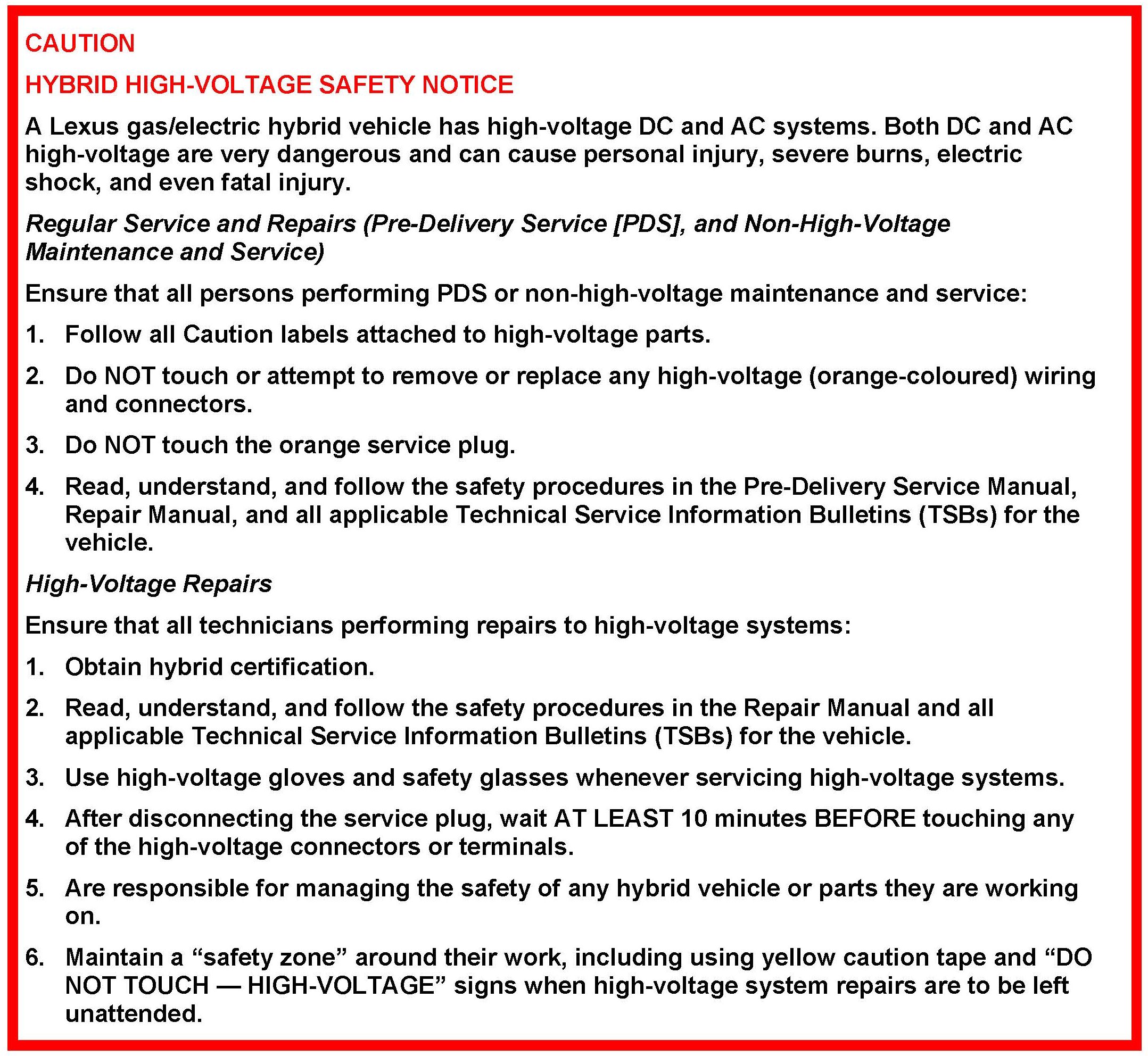

ELECTRICAL SAFETY PRECAUTIONS

© 2012 Lexus, a division of Toyota Motor Sales, Canada
