On-Vehicle Inspection

AXLE: STEERING KNUCKLE (for 2WD): ON-VEHICLE INSPECTION

1. INSPECT STEERING KNUCKLE BALL JOINT RATTLE

(a) Jack up the vehicle.

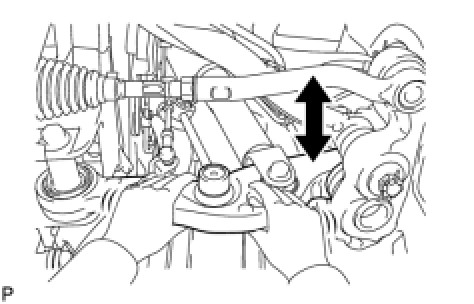

(b) Move the front No. 2 suspension lower arm up and down by hand, and check for rattle.





OK:

No rattle.
