Suspension





SERVICE SPECIFICATIONS: SUSPENSION: TORQUE SPECIFICATIONS

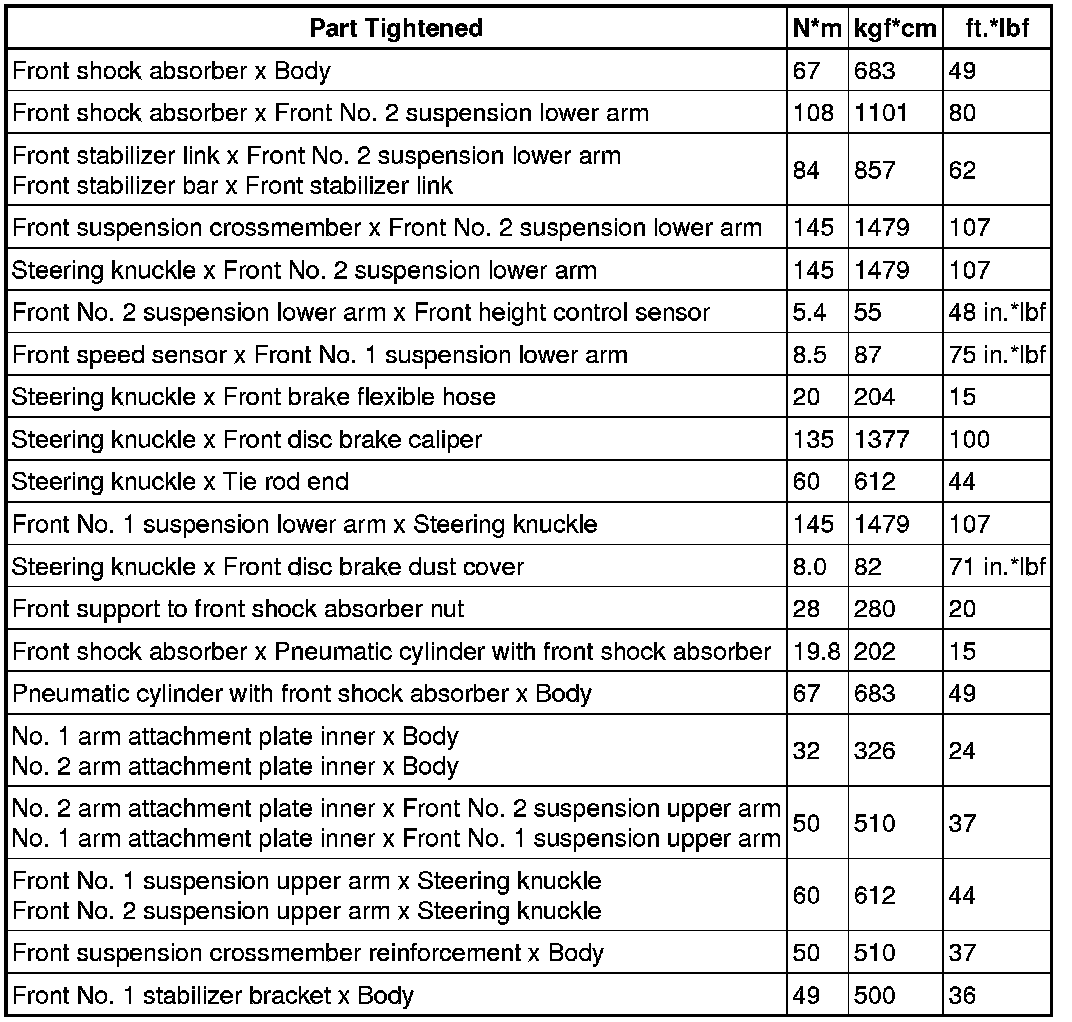

Front suspension (for 2WD)

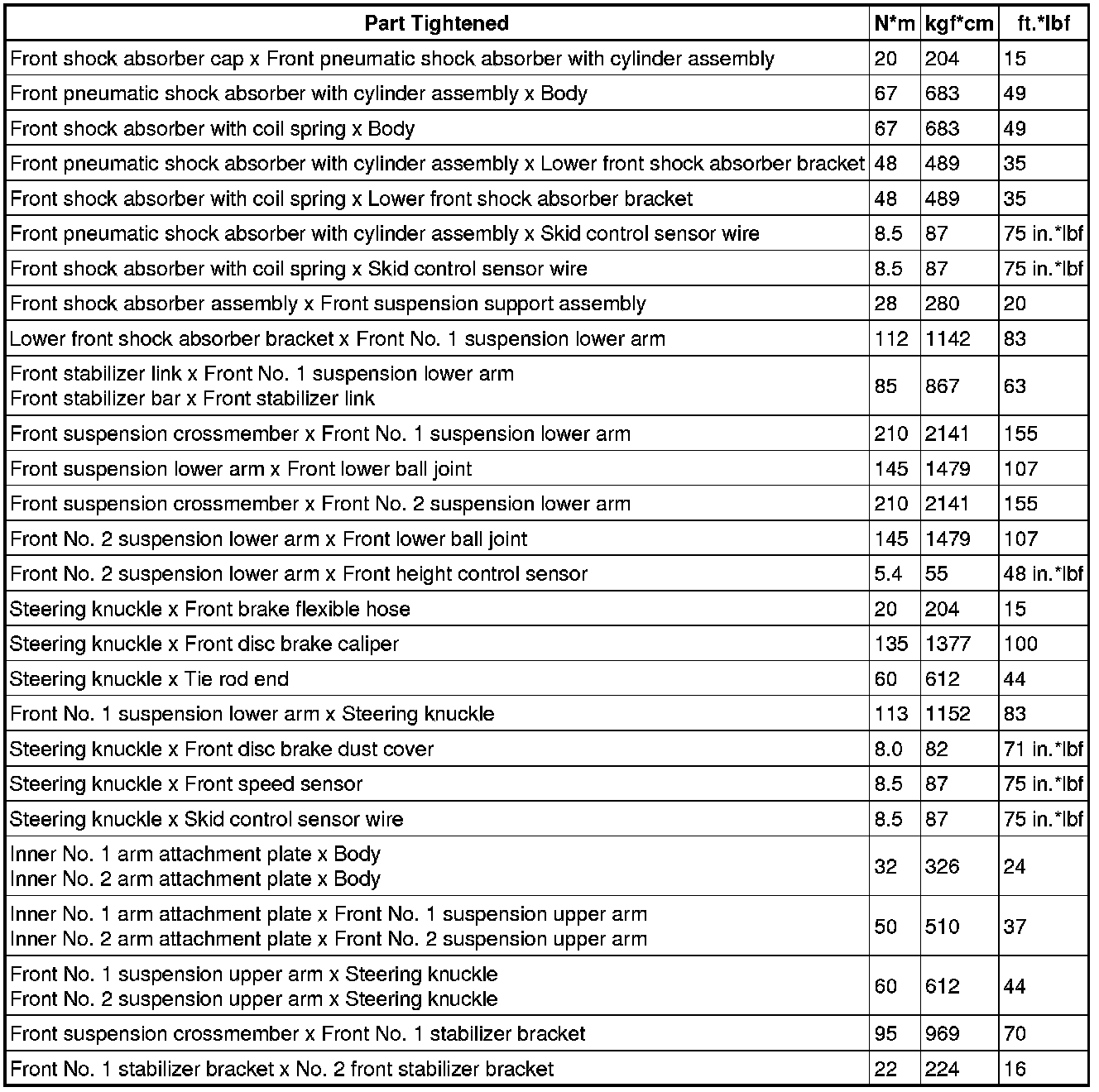

Front suspension (for AWD)

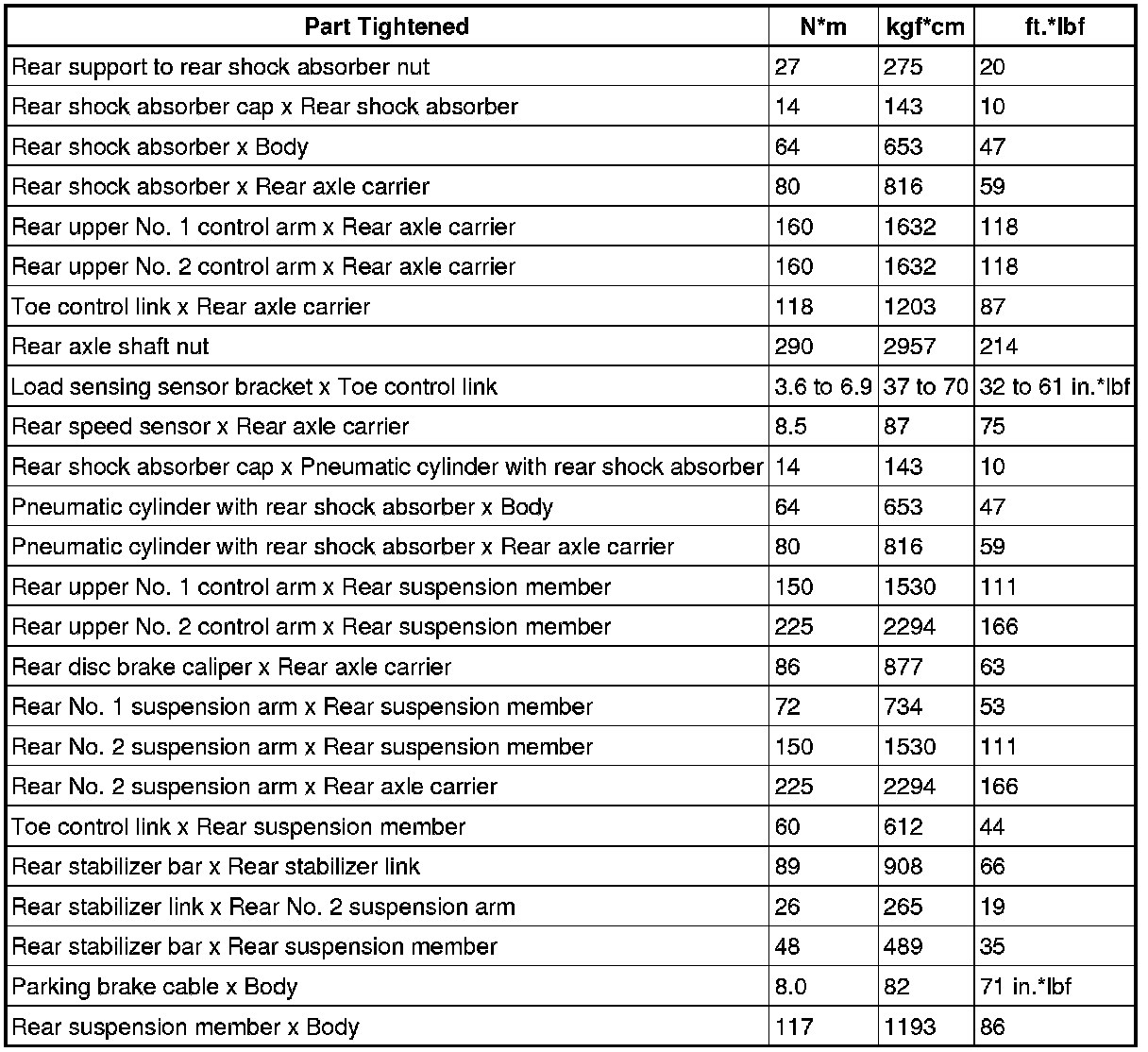

Rear suspension
