Exhaust Manifold

LH:

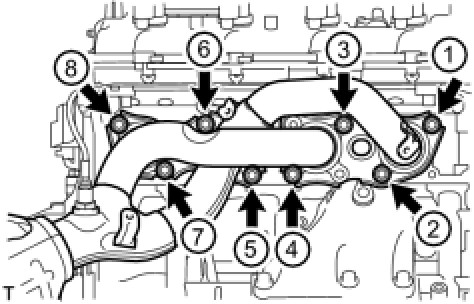

Install the exhaust manifold LH, and install 8 new nuts in the order shown in the illustration.

Exhaust Manifold LH 21 Nm (214 kgf-cm, 15 ft-lbf)

RH:

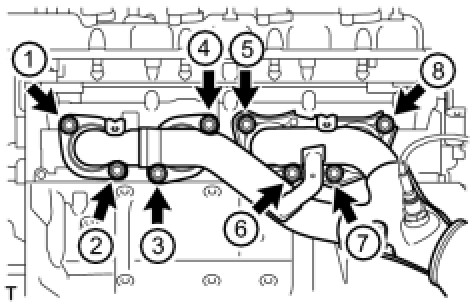

Install the exhaust manifold RH, and install 8 new nuts in the order shown in the illustration.

Exhaust manifold RH 21 Nm (214 kgf-cm, 15 ft-lbf)
