Removal

1UR-FSE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR (for 2WD): REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE FRONT DOOR SCUFF PLATE RH Removal

3. REMOVE COWL SIDE TRIM BOARD LH Removal

4. REMOVE COWL SIDE TRIM BOARD RH Removal

5. REMOVE FRONT FLOOR SILENCER PAD LH

6. REMOVE FRONT FLOOR SILENCER PAD RH

7. REMOVE REAR NO. 2 AIR DUCT

8. REMOVE REAR NO. 1 AIR DUCT

9. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

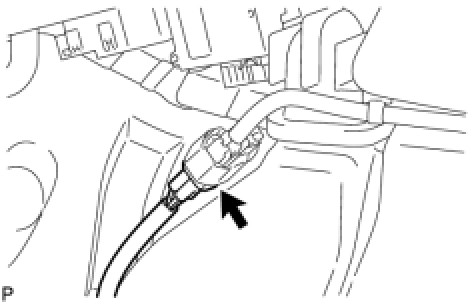

(a) Disconnect the heated oxygen sensor connector.





(b) Remove the grommet.

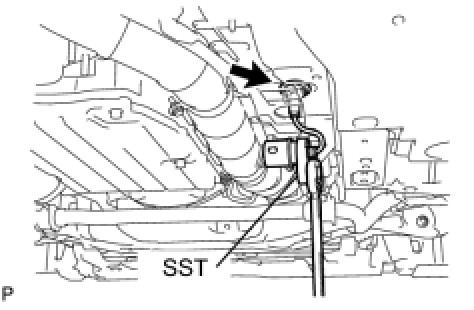

(c) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST : 09224-00010

10. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

(a) Disconnect the heated oxygen sensor connector.





(b) Remove the grommet.

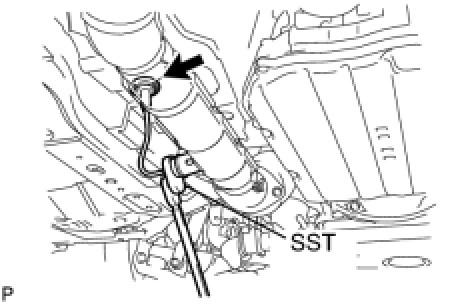

(c) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.

SST : 09224-00010
