Replacement

AXLE: FRONT AXLE HUB BOLT: REPLACEMENT

1. REMOVE FRONT WHEEL

2. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH Removal

3. REMOVE FRONT DISC Removal

4. REMOVE FRONT AXLE LH HUB BOLT

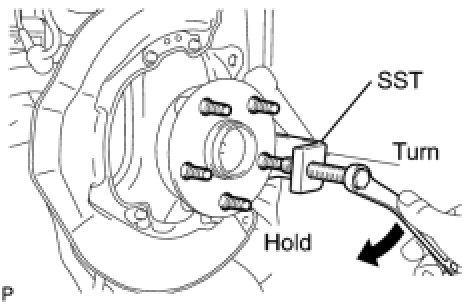

(a) Using SST, remove the front axle hub bolt.





SST : 09650-17011

NOTICE:
Do not damage the threads of the hub bolts.

5. INSTALL FRONT AXLE LH HUB BOLT

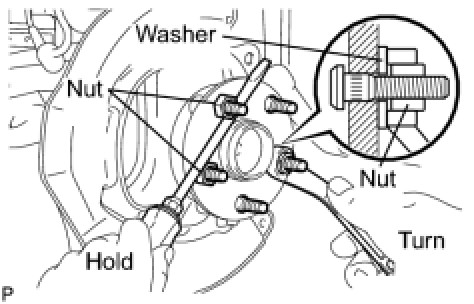

(a) Install a washer and nut to a new bolt as shown in the illustration.





(b) Using a screwdriver or an equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.

NOTICE:
* Do not damage the threads of the hub bolts.
* Install hub nuts to prevent damage to the hub bolts.

6. INSTALL FRONT DISC Installation

7. CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH Installation

8. INSTALL FRONT WHEEL

Torque : 140 Nm (1428 kgf-cm, 103 ft-lbf)
