Exhaust Manifold: Testing and Inspection

1UR-FSE ENGINE MECHANICAL: ENGINE (for 2WD): INSPECTION

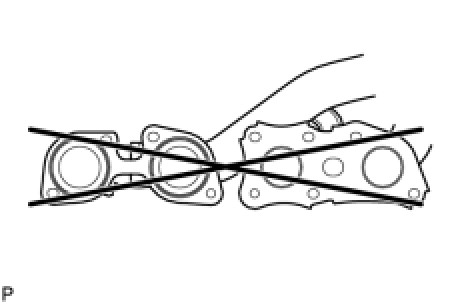

1. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY (for Bank 1)

(a) Using a precision straightedge and feeler gauge, measure the warpage of the contact surface of the cylinder head.





Maximum warpage:

0.7 mm (0.028 in.)

If the warpage is greater than the maximum, replace the exhaust manifold.

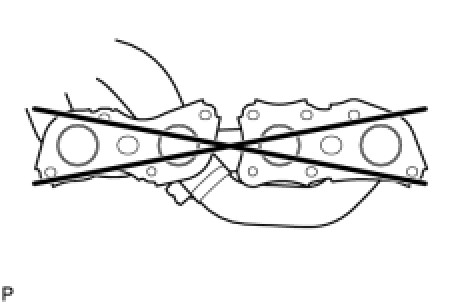

2. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY (for Bank 2)

(a) Using a precision straightedge and feeler gauge, measure the warpage of the contact surface of the cylinder head.





Maximum warpage:

0.7 mm (0.028 in.)

If the warpage is greater than the maximum, replace the exhaust manifold.
