Removal
1UR-FSE COOLING: RADIATOR (for 2WD): REMOVAL
1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair
4. DRAIN ENGINE COOLANT Service and Repair
5. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
6. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal
7. REMOVE NO. 1 AIR CLEANER INLET Removal
8. REMOVE ENGINE ROOM SIDE COVER RH Removal
9. REMOVE ENGINE ROOM SIDE COVER LH Removal
10. REMOVE COOL AIR INTAKE DUCT SEAL
(a) Remove the 4 clips and duct seal.
11. REMOVE RADIATOR GRILLE ASSEMBLY Removal
12. DISCONNECT NO. 1 RADIATOR HOSE
13. DISCONNECT NO. 2 RADIATOR HOSE
14. DISCONNECT OIL COOLER INLET HOSE
15. DISCONNECT OIL COOLER OUTLET HOSE
16. REMOVE ECM OUTLET DUCT Removal
17. REMOVE RADIATOR RESERVOIR ASSEMBLY Removal
18. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
(a) Disconnect the connector.
(b) Remove the 3 bolts and sensor.
19. REMOVE HOOD LOCK CONTROL CABLE COVER
(a) Remove the 3 screws.
(b) Detach the claw and remove the cover.
20. REMOVE HOOD LOCK ASSEMBLY Removal
21. REMOVE RADIATOR UPPER SUPPORT
(a) Disconnect the 3 connectors and detach the 2 clamps.
(b) Detach the 5 clamps and disconnect the wire harness.
(c) Remove the 5 bolts and upper support.

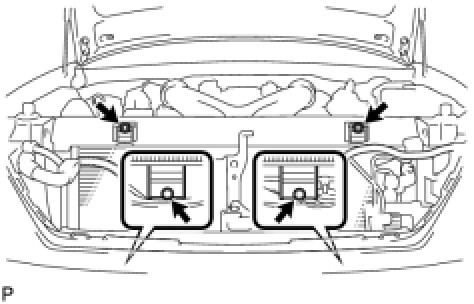

22. REMOVE RADIATOR ASSEMBLY
(a) Detach the 3 clamps and disconnect the ECU connector.
(b) Remove the 4 bolts and separate the radiator from the A/C condenser.

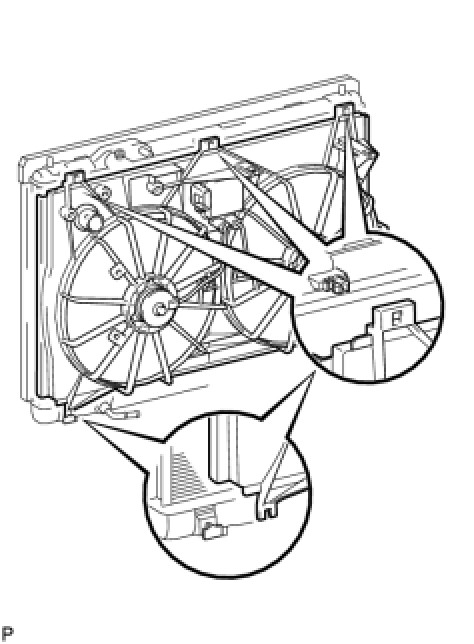

23. REMOVE FAN SHROUD WITH FAN AND MOTOR
(a) Detach the 3 claws and remove the fan shroud with fan and motor.
24. REMOVE RADIATOR SUPPORT CUSHION
(a) Remove the 2 cushions.
25. REMOVE RADIATOR SUPPORT LOWER
(a) Remove the 2 radiator support lowers.
